Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.

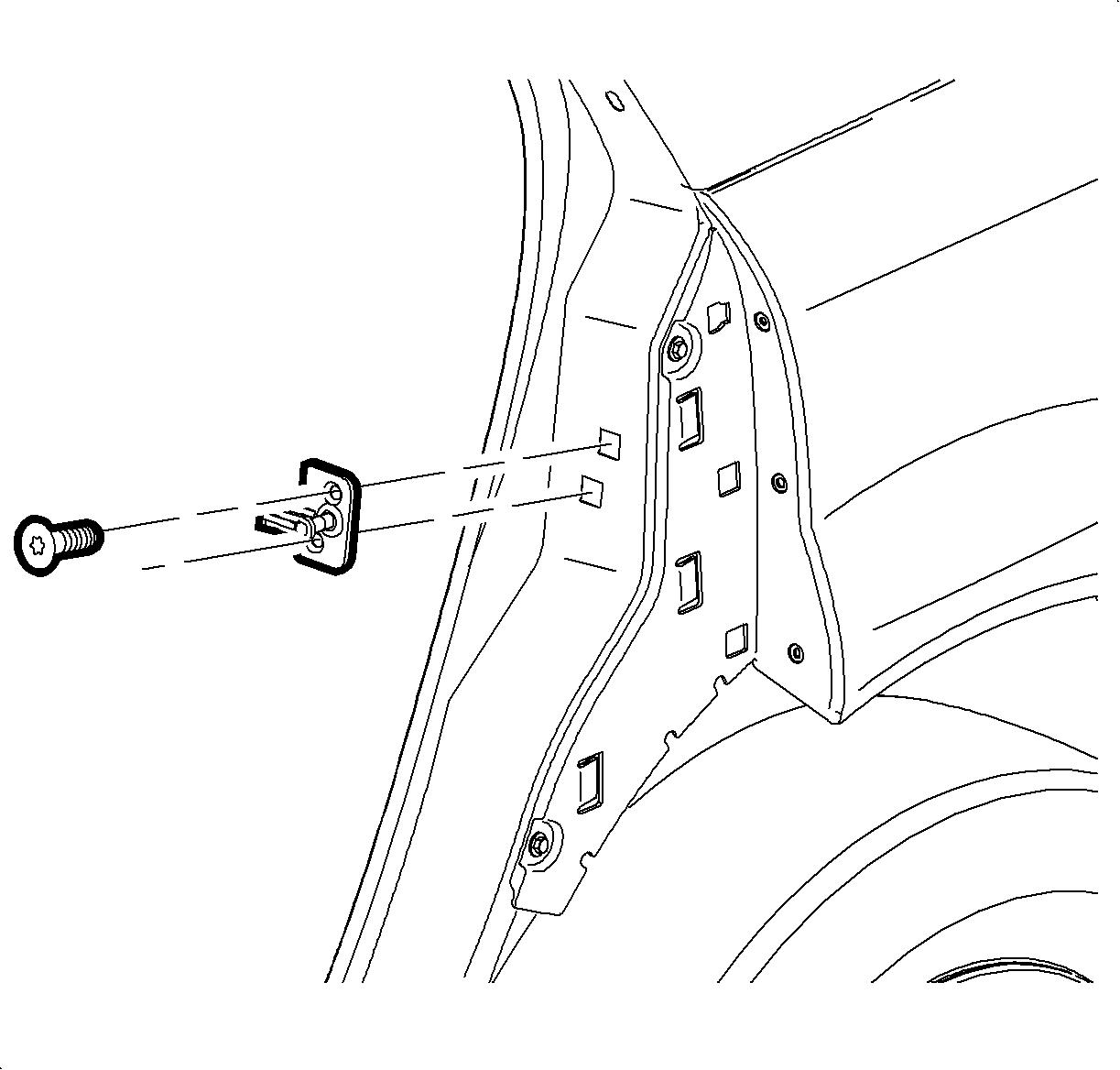

    Fig 1: Removing/Installing Door Striker
    GM943403Courtesy of GENERAL MOTORS CORP.
  1. Using a grease pencil, mark around the striker for installation purposes.
  2. Remove the screws.
  3. Remove the striker.
