Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

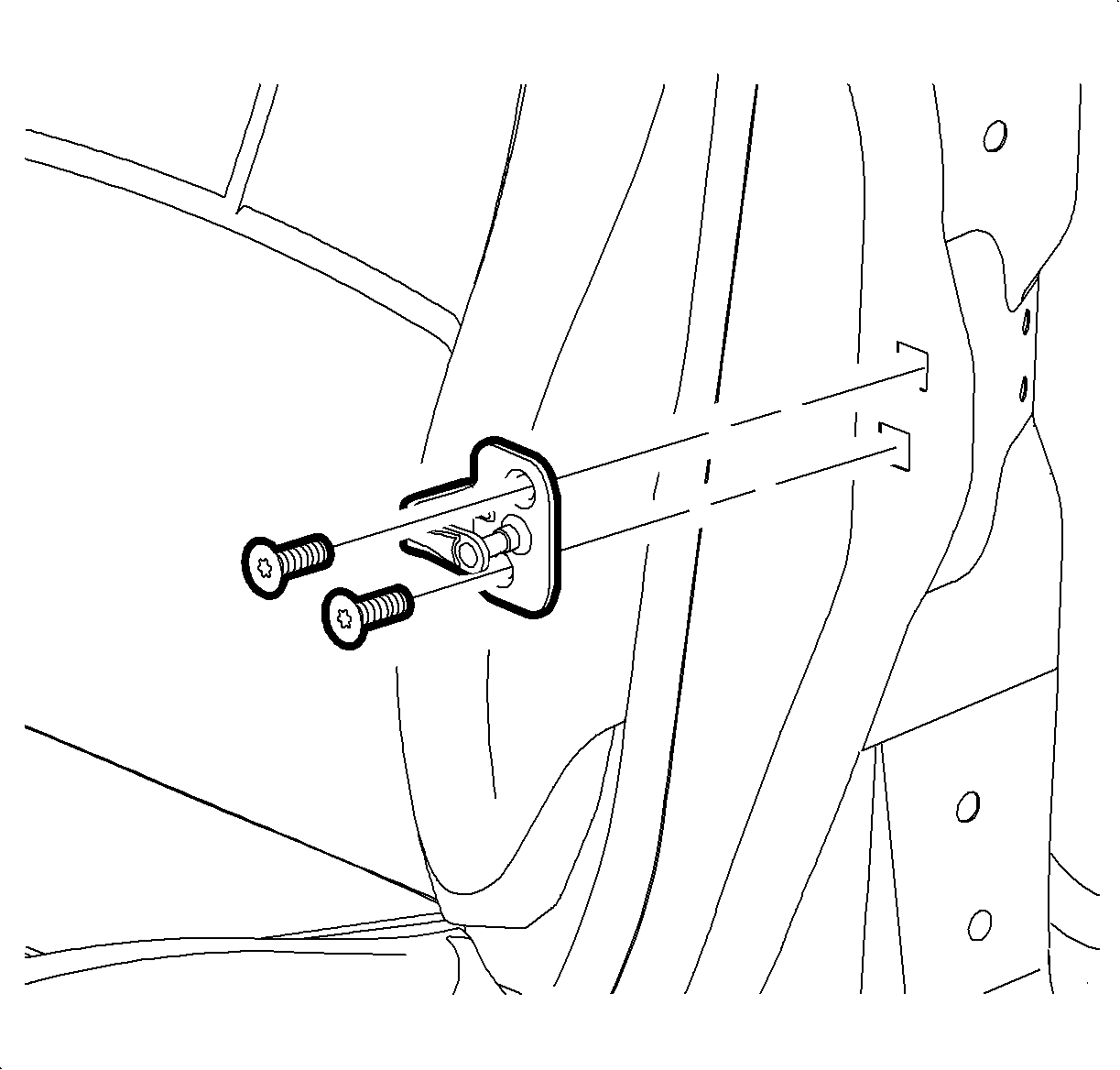

    Fig 1: View Of Front Door Striker
    GM940904Courtesy of GENERAL MOTORS CORP.
  1. Loosely install the striker with the bolts.
  2. Align the striker with the marks made prior to removal.
  3. Tighten the bolts.
  4. Inspect the door closing and align the striker as required.
    5. NOTE: Refer to Fastener Notice .
  5. Tighten the striker bolts.

    Tighten:  Tighten the door striker bolts to 25 N.m (18 lb ft).
