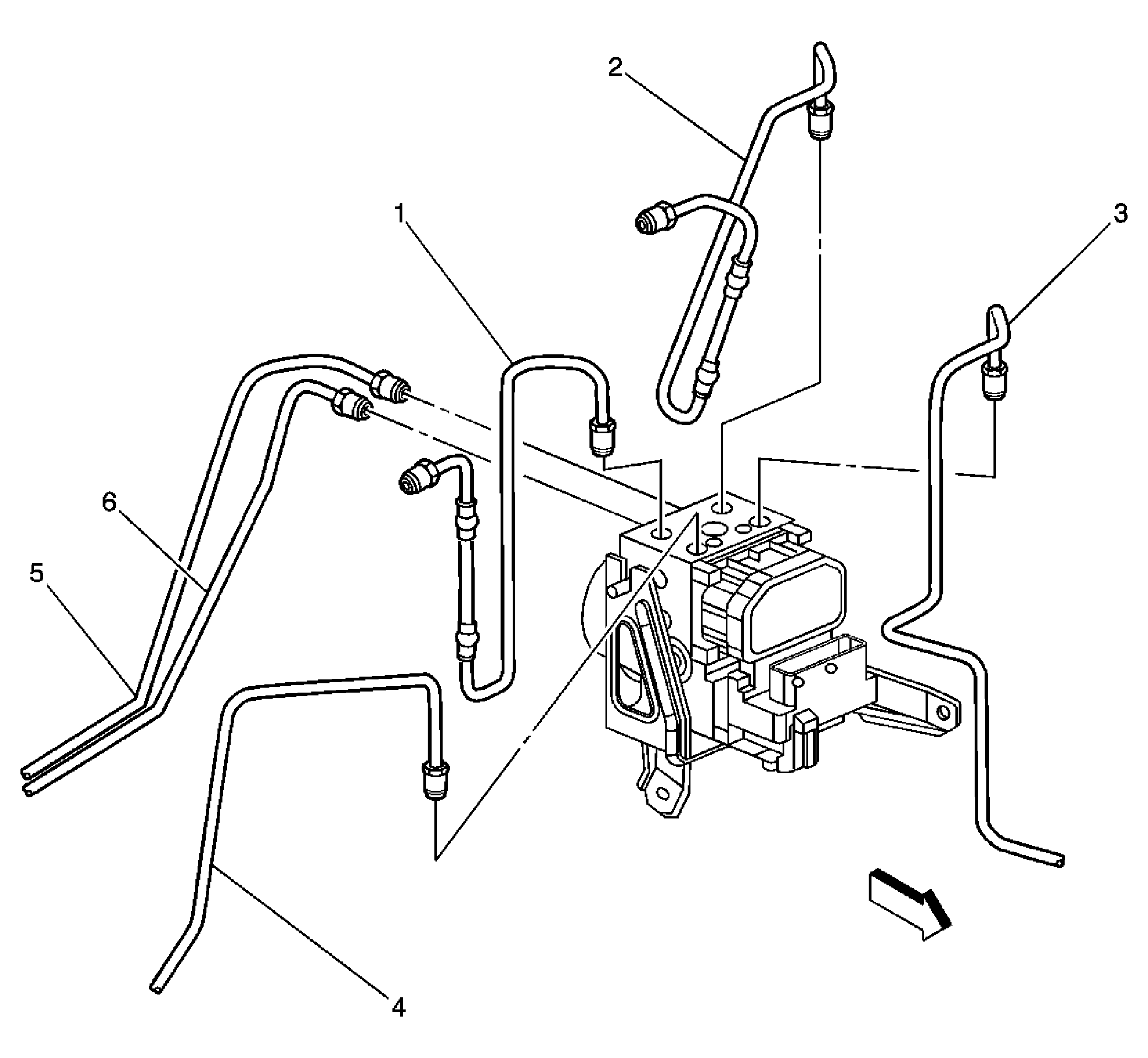

Hydraulic Brake Pipe Routing - Master Cylinder to ABS
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Master Cylinder Primary Brake Pipe |
| 2 |
Master Cylinder Secondary Brake Pipe |
| 3 |
BPMV Brake Pipe to LF Brake Corner |
| 4 |
BPMV Brake Pipe to RF Brake Corner |
| 5 |
BPMV Brake Pipe to RR Brake Corner |
| 6 |
BPMV Brake Pipe to LR Brake Corner |
