Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Front Brake Hose
    GM933121Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Release the wheel speed sensor wire harness retainers and harness from the front brake hose.
    4. Fig 2: Removing/Installing Brake Hose
    GM926801Courtesy of GENERAL MOTORS CORP.
  4. Clean all dirt and foreign material from the brake hose ends and the brake pipe fitting.
  5. Using a backup wrench on the hose fitting, disconnect the brake pipe fitting from the brake hose. Cap or plug the brake pipe fitting end and the brake hose end to prevent fluid loss and contamination.
  6. Release the retaining clip from the brake hose mounting bracket and the brake hose.

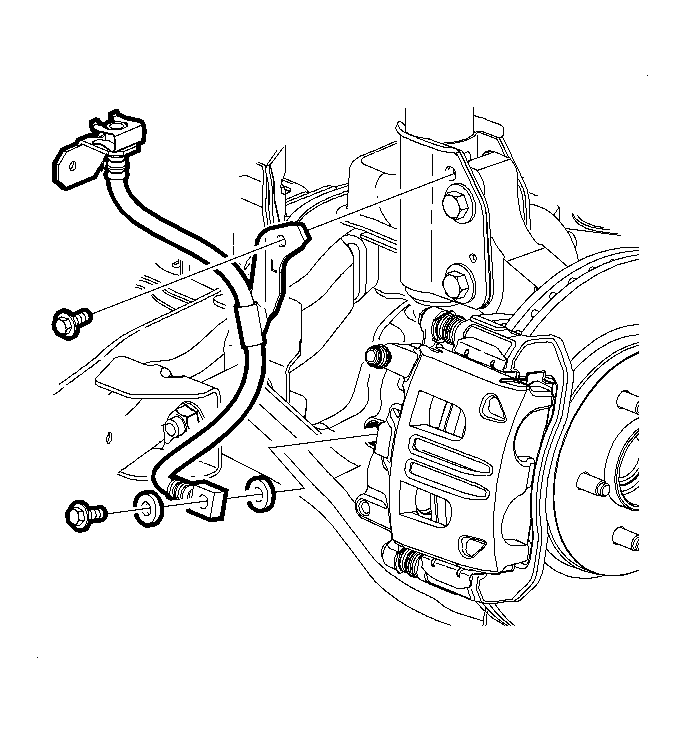

    7. Fig 3: Removing/Installing Front Brake Hose Bracket Retaining Bolt
    GM929744Courtesy of GENERAL MOTORS CORP.
  7. Remove the brake hose-to-caliper bolt from the brake caliper.
  8. Remove the brake hose bracket retaining bolt.
  9. Remove the brake hose from the brake caliper.
  10. Remove and discard the copper brake hose gaskets. These gaskets may be stuck to the brake caliper and/or the brake hose end.
  11. Cap or plug the opening in the brake caliper and the brake hose to prevent fluid loss and contamination.
