Rear Bumper Fascia Molding Replacement
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Rear Bumper Fascia Molding Replacement

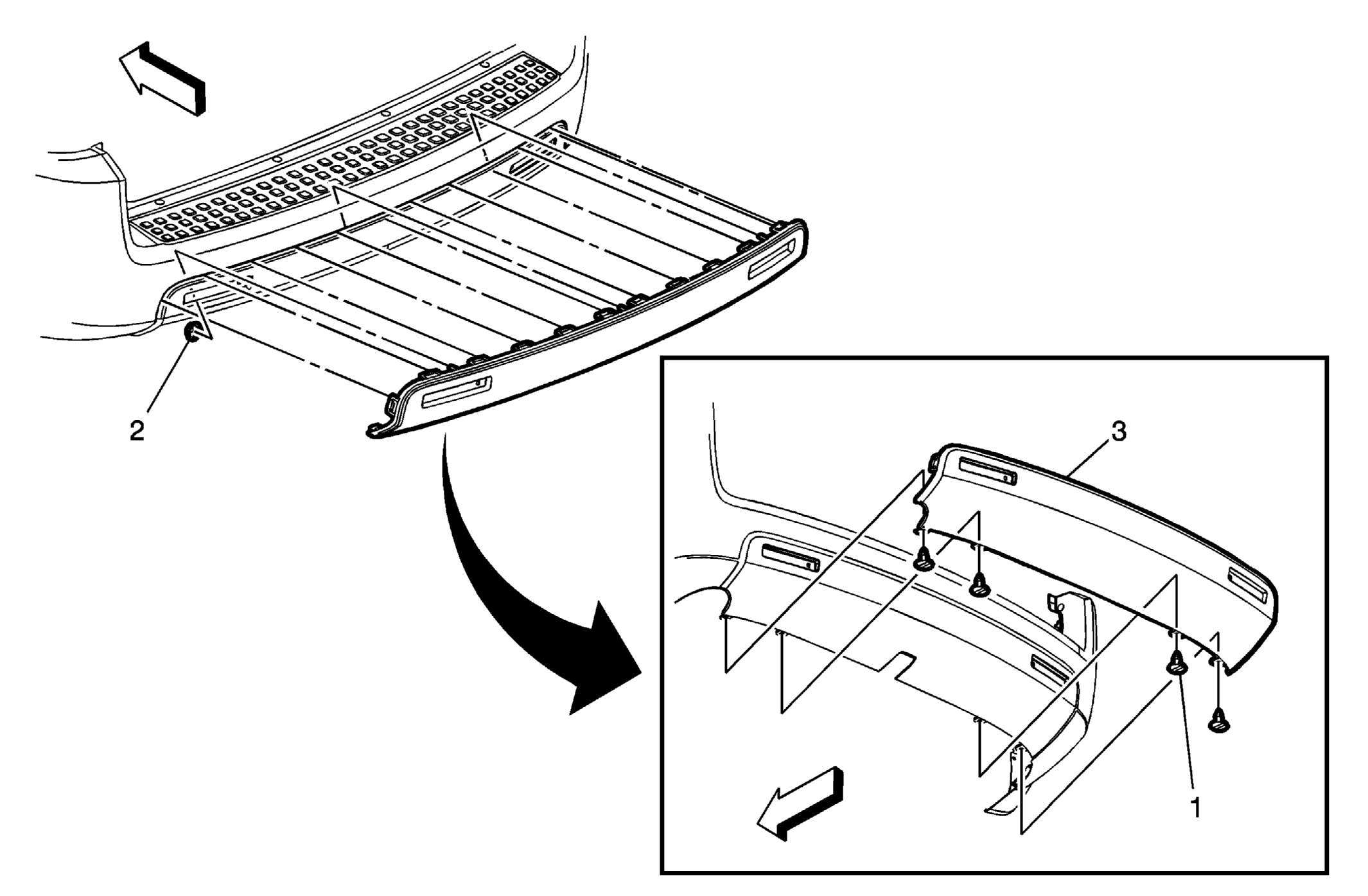

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Plastic Push Pin Retainer (Qty: 4) |
| 2 | Rear Bumper Molding Nut (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (53 lb in) |
| 3 | Rear Bumper Fascia Molding |
