Front Bumper Fascia Molding Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

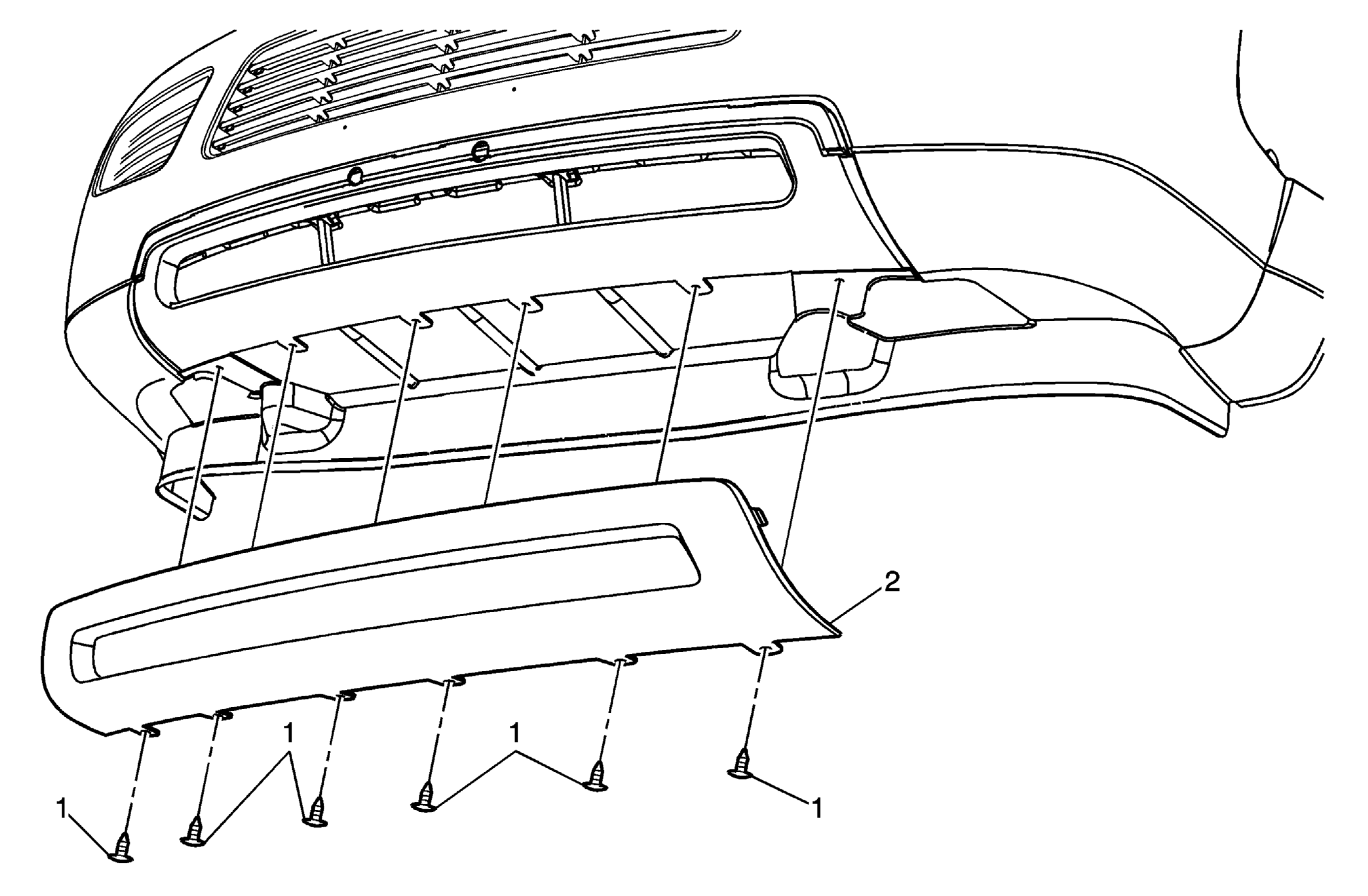

Fig 1: View Of Front Bumper Fascia Molding
GM1713103Courtesy of GENERAL MOTORS CORP.
Front Bumper Fascia Molding Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
1 Plastic Push-In Retainer (Qty: 6)
2 Front Bumper Molding
