Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Cooling Module Secured To Upper Body Structure
    GM857193Courtesy of GENERAL MOTORS CORP.
  1. Tie the radiator, air conditioning condenser, and fan module assembly to the upper radiator support to keep the assembly with the vehicle when the frame is lowered.
  2. Install the engine support fixture. Refer to Engine Support Fixture .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove the front wheels. Refer to Tire and Wheel Removal and Installation .
  5. Remove the side splash shield-to-frame fasteners.
  6. Remove the front air dam-to-frame fasteners.

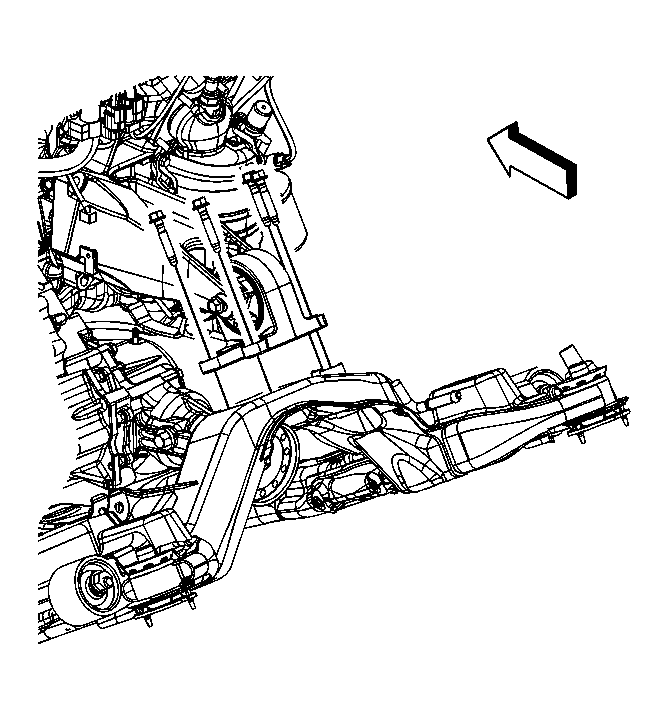

  7. Fig 2: View Of Rear Transmission Mount-To-Frame Bolts
    GM1260852Courtesy of GENERAL MOTORS CORP.
  8. Remove the rear transmission mount-to-frame bolts.
  9. Fig 3: View Of Front Transmission Mount-To-Frame Bolts
    GM1239273Courtesy of GENERAL MOTORS CORP.
  10. Remove the front transmission mount-to-frame bolts.
  11. Fig 4: View Of Steering Gear & Steering Gear-To-Frame Bolts
    GM927957Courtesy of GENERAL MOTORS CORP.
  12. Remove the steering gear-to-frame bolts.
  13. Using mechanics wire, secure the steering gear to the exhaust.
  14. Fig 5: View Of Stabilizer Bar Clamps, Bushings & Bolts
    GM929945Courtesy of GENERAL MOTORS CORP.
  15. Remove the stabilizer shaft clamp-to-frame bolts.
  16. Fig 6: View Of Lower Ball Joint Stud Cotter Pin & Nut
    GM929893Courtesy of GENERAL MOTORS CORP.
  17. Remove the lower ball joint cotter pins. Discard the cotter pins.
  18. Fig 7: View Of Steering Knuckle & Lower Control Arm
    GM932518Courtesy of GENERAL MOTORS CORP.
  19. Loosen the lower ball joint castle nut until the nut is level with the top of the ball stud.
  20. NOTE: Do not free the ball stud by using a pickle fork or a wedge-type tool. Damage to the seal or bushing may result.
  21. Using the J 43828  . See Special Tools .
  22. Fig 8: View Of Reinforcement, Reinforcement Bolts & Rear Frame-To-Body Bolts
    GM1548950Courtesy of GENERAL MOTORS CORP.
  23. Remove the reinforcement bolts (3).
  24. Remove the rear frame to body bolts (2). DISCARD the bolts.
  25. Remove the reinforcement (1) from the vehicle.
  26. Fig 9: Removing/Installing Frame To Body Bolts
    GM933087Courtesy of GENERAL MOTORS CORP.
  27. Remove the front frame-to-body bolts. DISCARD the bolts.
  28. Carefully lower the frame from the vehicle.
  29. Remove the lower control arms. Refer to Lower Control Arm Replacement .
