Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

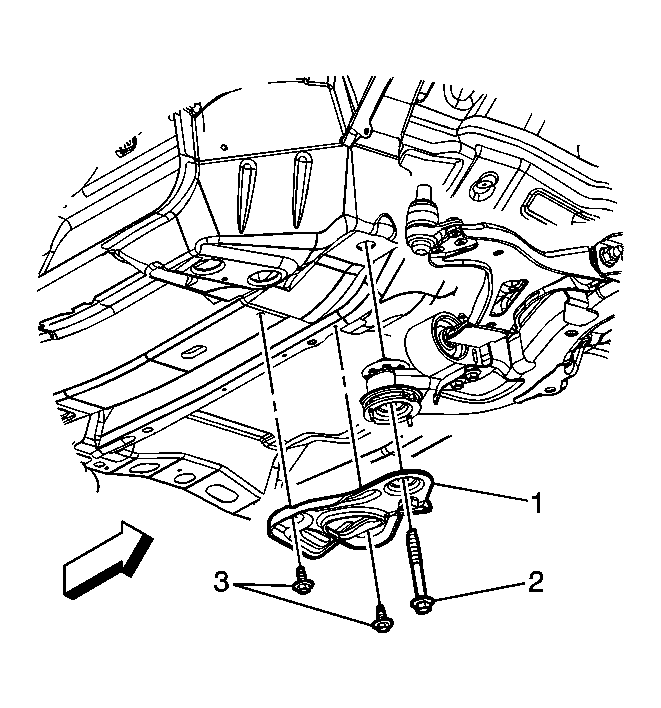

    Fig 1: View Of Reinforcement, Reinforcement Bolts & Rear Frame-To-Body Bolts
    GM1548950Courtesy of GENERAL MOTORS CORP.
  1. Position the reinforcement (1) to the vehicle.
  2. Loosely install NEW rear frame to body bolts (2).
  3. Loosely install the reinforcement bolts (3).
    4. NOTE: Refer to Fastener Notice
  4. Tighten the reinforcement bolts (3).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  5. Tighten the frame to body bolts (2).

    Tighten:  Tighten the bolts to 155 N.m (114 lb ft).

  6. Remove the utility stand from the frame.
  7. Lower the vehicle.
