Roof Front Panel Applique Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

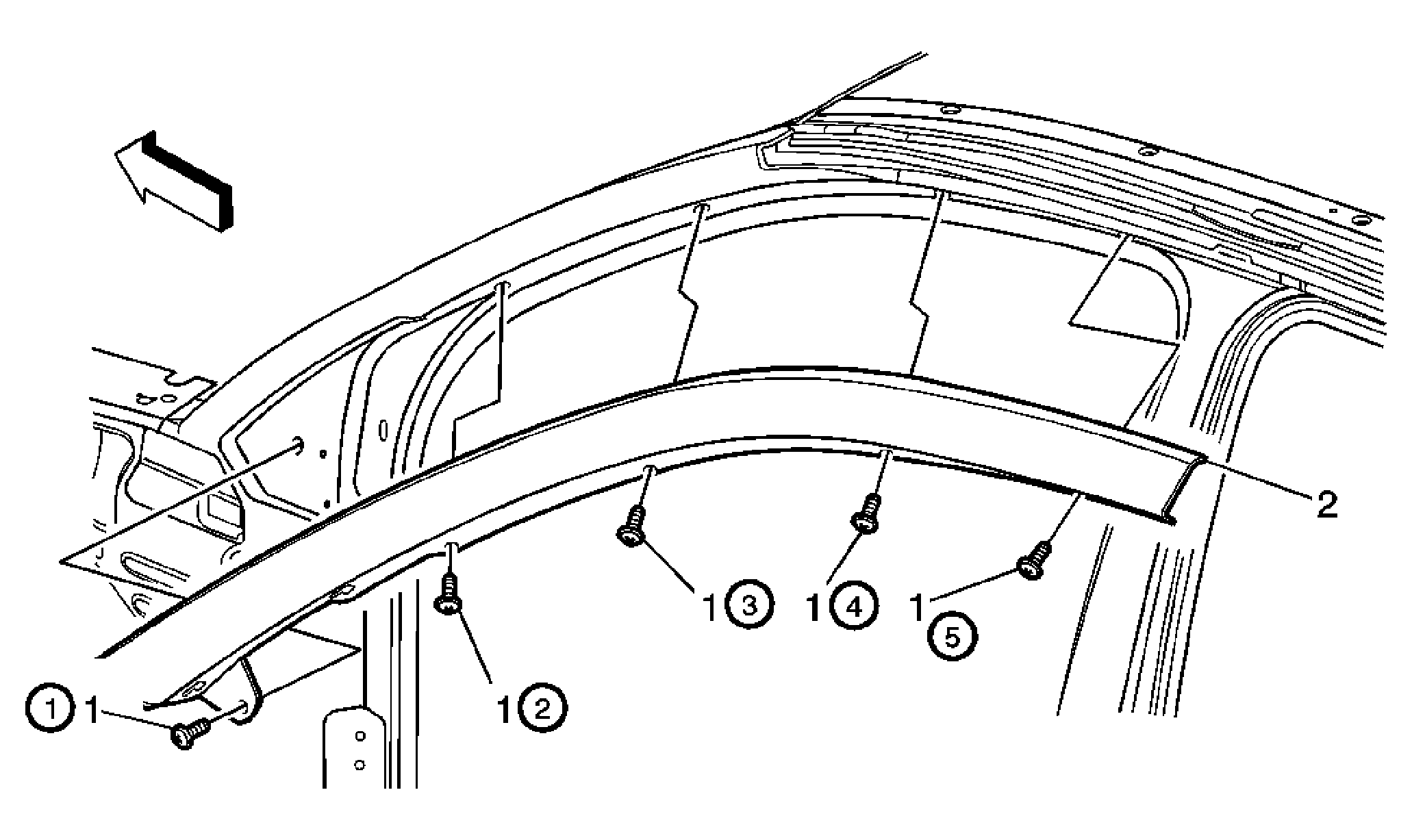

Fig 1: Front Roof Panel Applique And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Open either the LF or RF door in order to access the roof front applique screws. Remove the windshield frame applique. Refer to Windshield Frame Applique Replacement .
1	Roof Front Panel Applique Screws (Qty: 5) Tip: Secure the screws in the mandatory sequence, as shown. Tighten: 2 N.m (18 lb in)
2	Roof Front Panel Applique

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Open either the LF or RF door in order to access the roof front applique screws.
Remove the windshield frame applique. Refer to Windshield Frame Applique Replacement .

Roof Front Panel Applique Screws (Qty: 5)
Tip: Secure the screws in the mandatory sequence, as shown.

Tighten: 2 N.m (18 lb in)

Roof Front Panel Applique
