Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

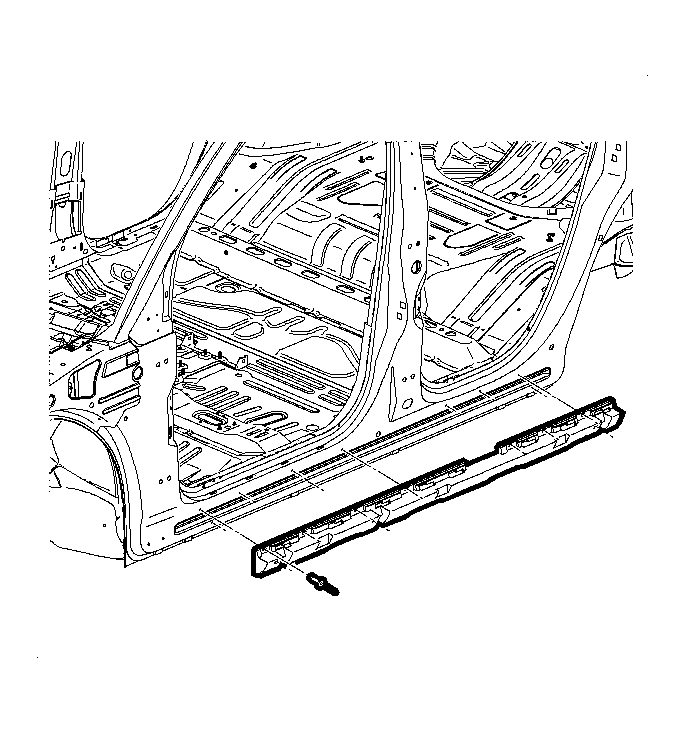

    Fig 1: View Of Rocker Panel Molding Support
    GM929258Courtesy of GENERAL MOTORS CORP.
  1. Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .
  2. Drill out the rivets that attach the rocker panel support to the structure.
