Liftgate Upper Molding Replacement
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Liftgate Upper Molding Replacement

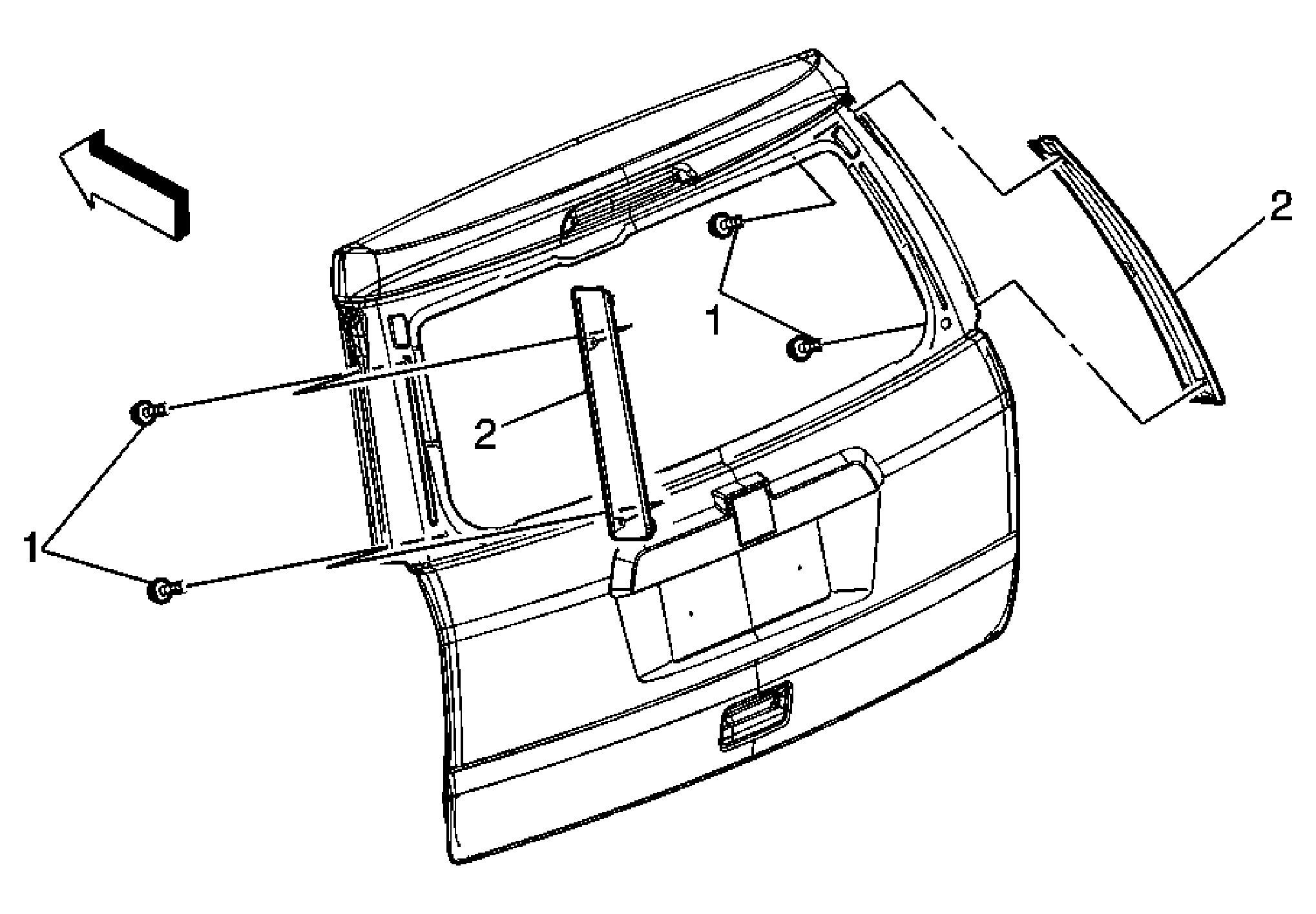

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure: Open the rear liftgate in order to access the applique bolts. |
|
| 1 | Liftgate Applique Bolts (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 2 | Liftgate Applique |
