Liftgate Emblem/Nameplate Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

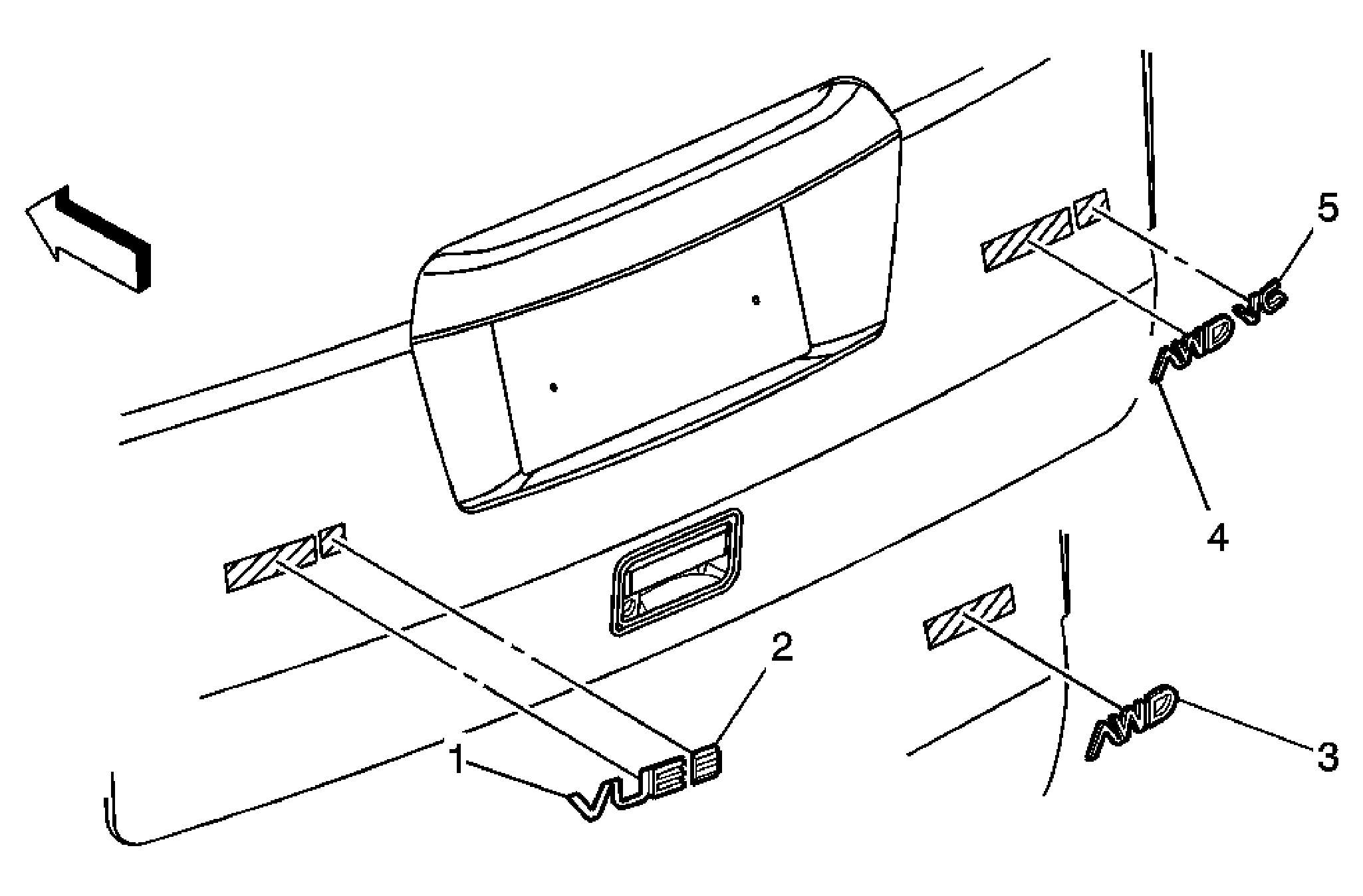

Fig 1: Locating Liftgate Emblem And Nameplate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Liftgate Nameplate (VUE) Tip: When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing the new nameplate. Apply the new nameplate with the rear liftgate in the closed position. Apply pressure to the nameplate to ensure full adhesion is made to the rear liftgate.
2	Rear Liftgate Nameplate (Emblem) Tip: When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing the new nameplate. Apply the new emblem with the rear liftgate in the closed position. Apply pressure to the nameplate to ensure full adhesion is made to the liftgate.
3	Rear Liftgate Emblem (AWD) Tip: When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing the new emblem. Apply the new emblem with the rear liftgate in the closed position. Apply pressure to the emblem to ensure full adhesion is made to the liftgate.
4	Rear Liftgate Emblem (AWD) Tip: When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear the liftgate, wipe surface dry with a clean lint-free towel prior to installing the new emblem. Apply the new emblem with the rear liftgate in the closed position. Apply pressure to the emblem to ensure full adhesion is made to the liftgate.
5	Rear Liftgate Nameplate (V6) Tip: When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear liftgate, wipe surface dry with a clean lint-free towel prior to installing the new nameplate. Apply the new nameplate with the rear liftgate in the closed position. Apply pressure to the nameplate to ensure full adhesion is made to the liftgate.
