Liftgate Center Applique Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

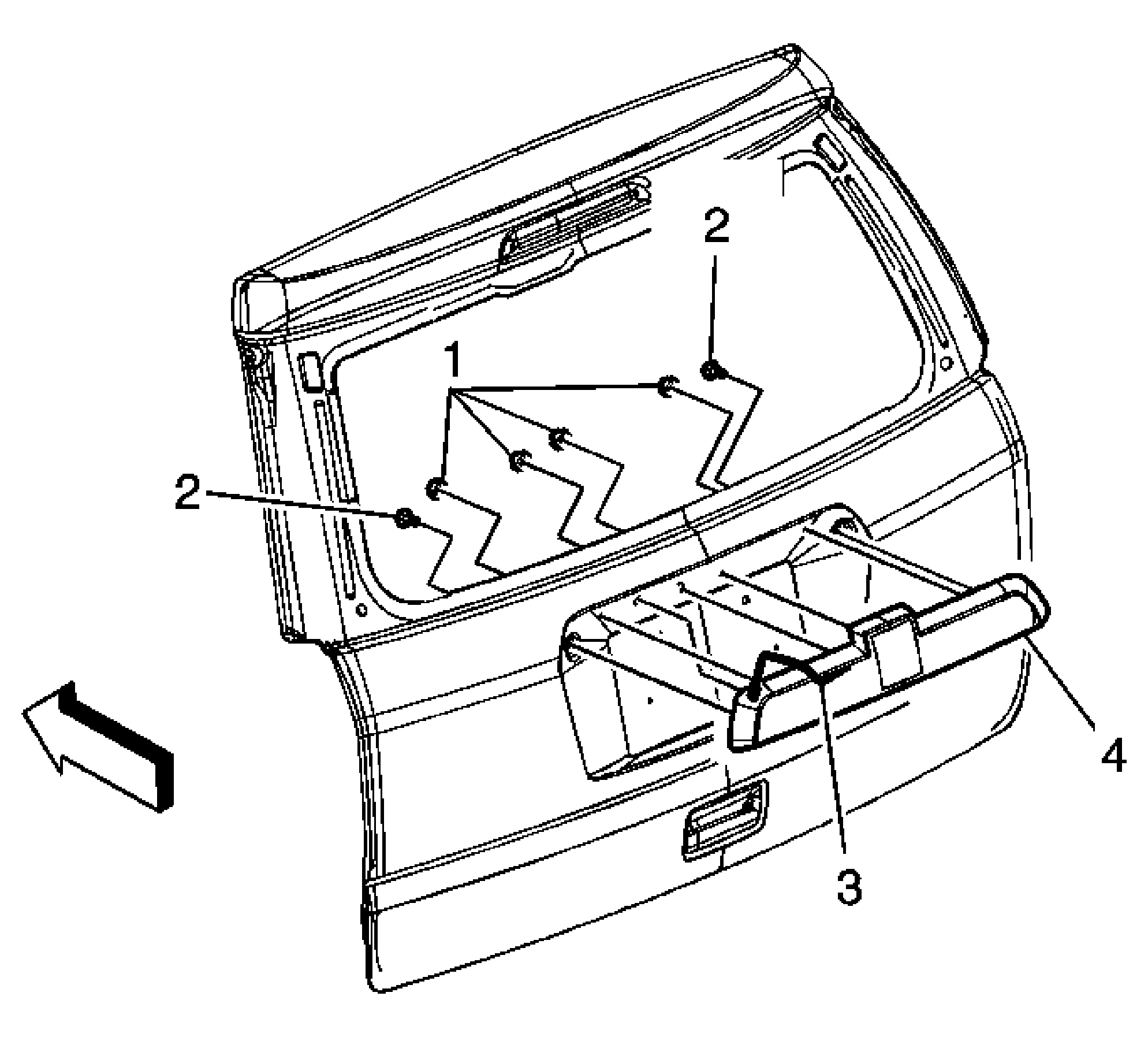

Fig 1: Lift Gate Center Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the liftgate. Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement . Disconnect the 2 license plate lamp bulb sockets by turning a quarter turn counterclockwise.
1	Liftgate Center Applique Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Liftgate Center Applique Nuts (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Liftgate Center Applique Assembly Tip: Pull the applique rearward and remove the license plate lamp lens.
