Exterior Lights Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

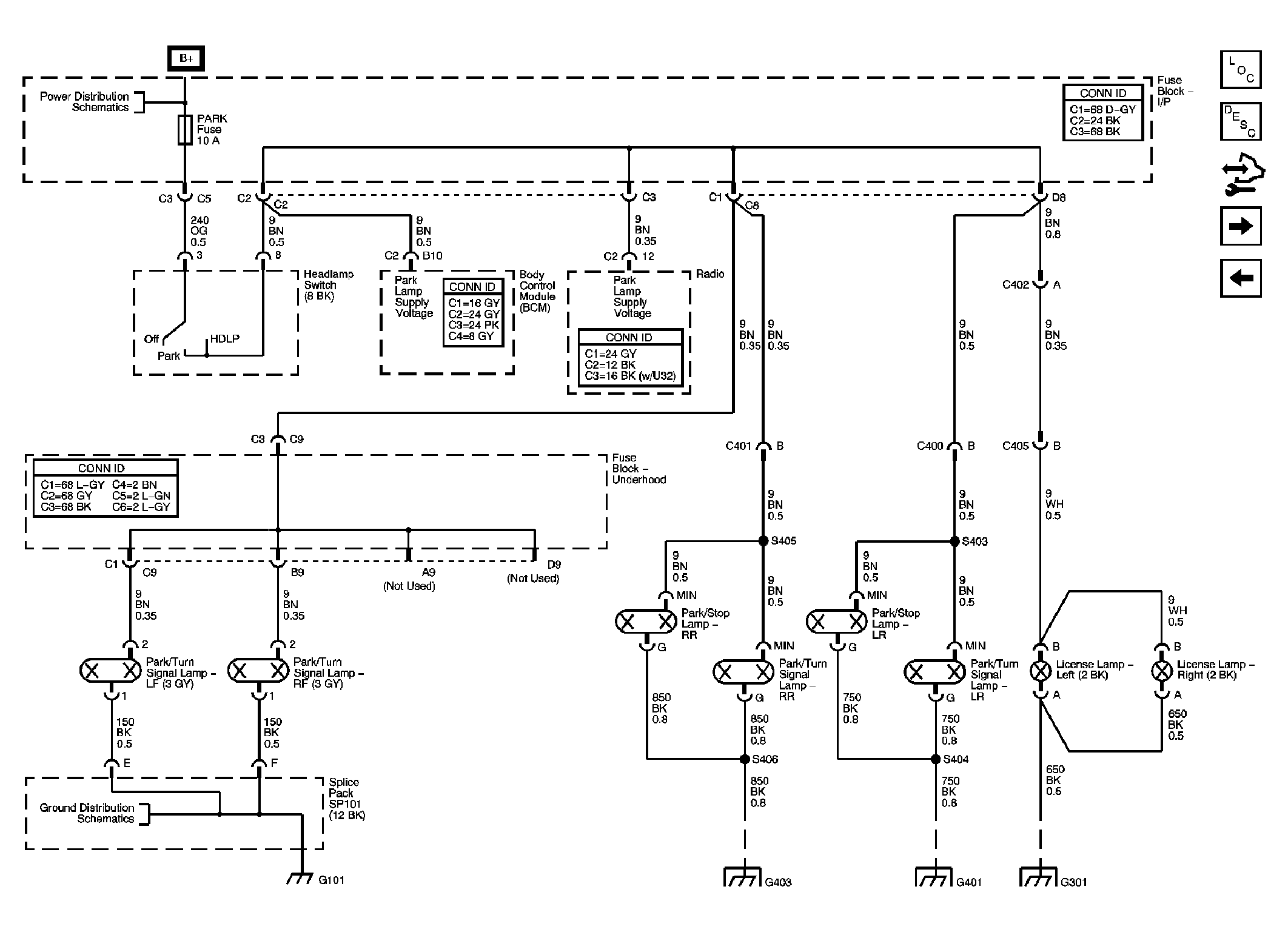

Fig 1: Park Lamps w/ T82

Courtesy of GENERAL MOTORS CORP.

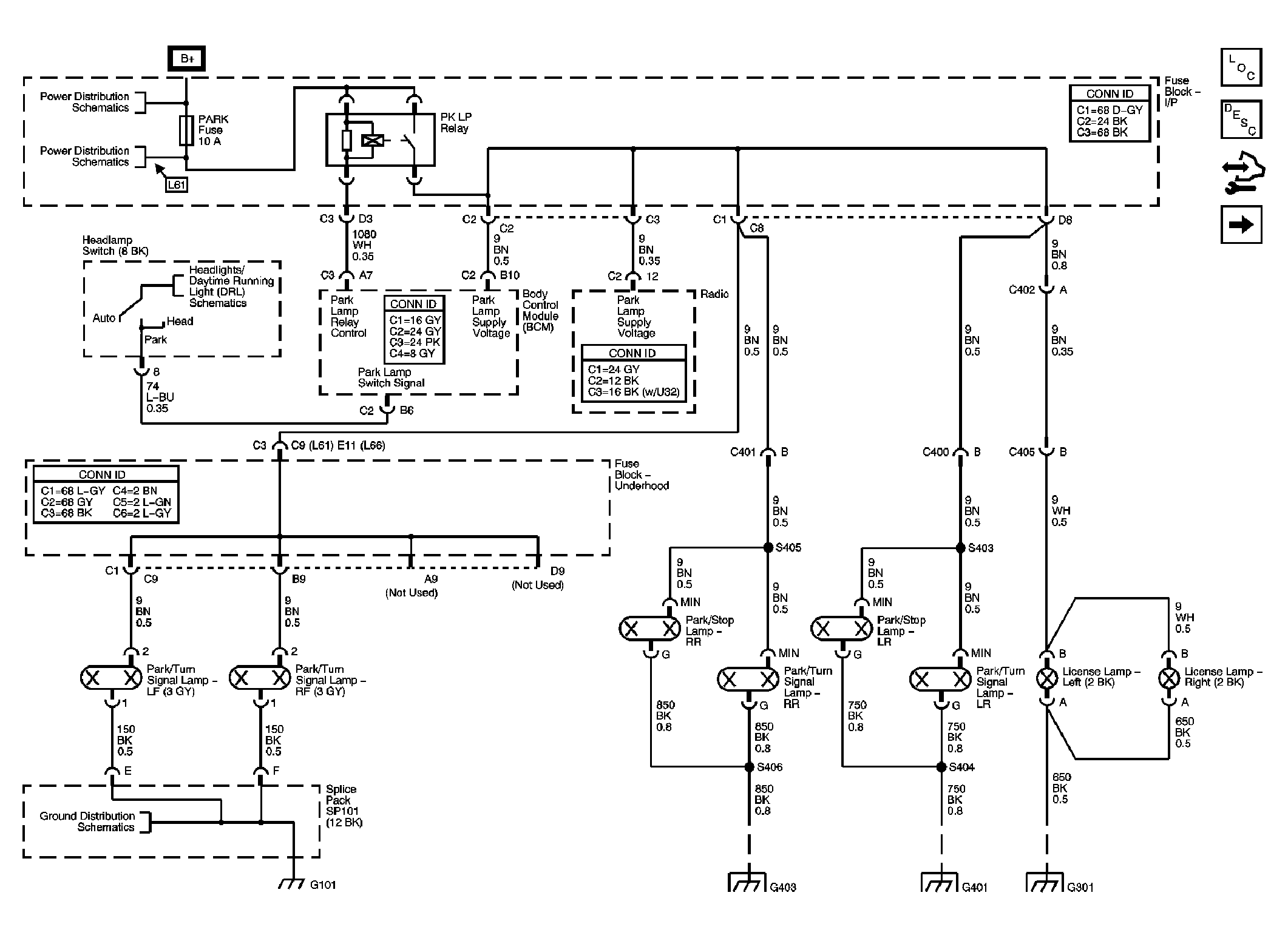

Fig 2: Park Lamps - L61 w/o T82

Courtesy of GENERAL MOTORS CORP.

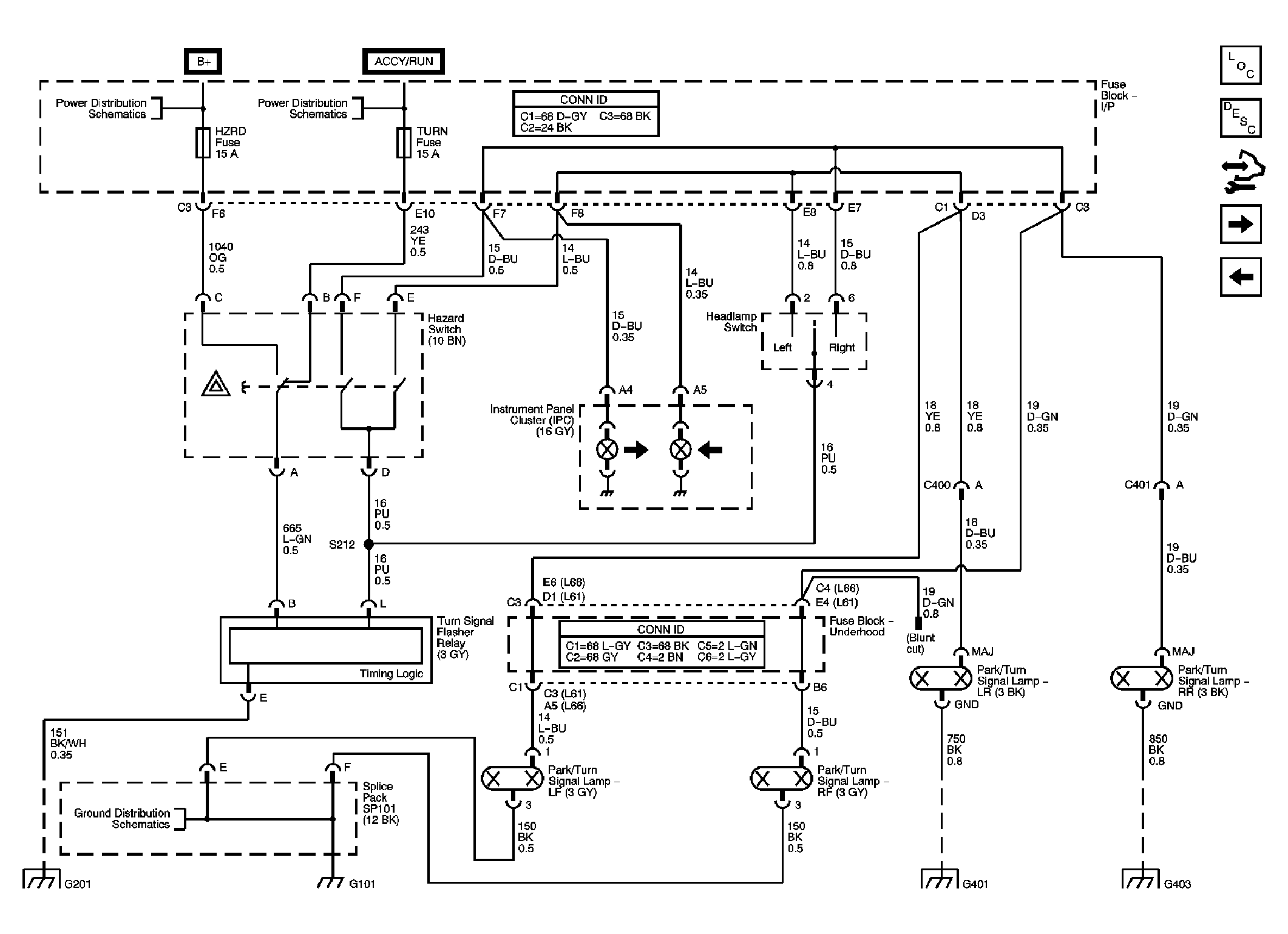

Fig 3: Hazard Turn Signals

Courtesy of GENERAL MOTORS CORP.

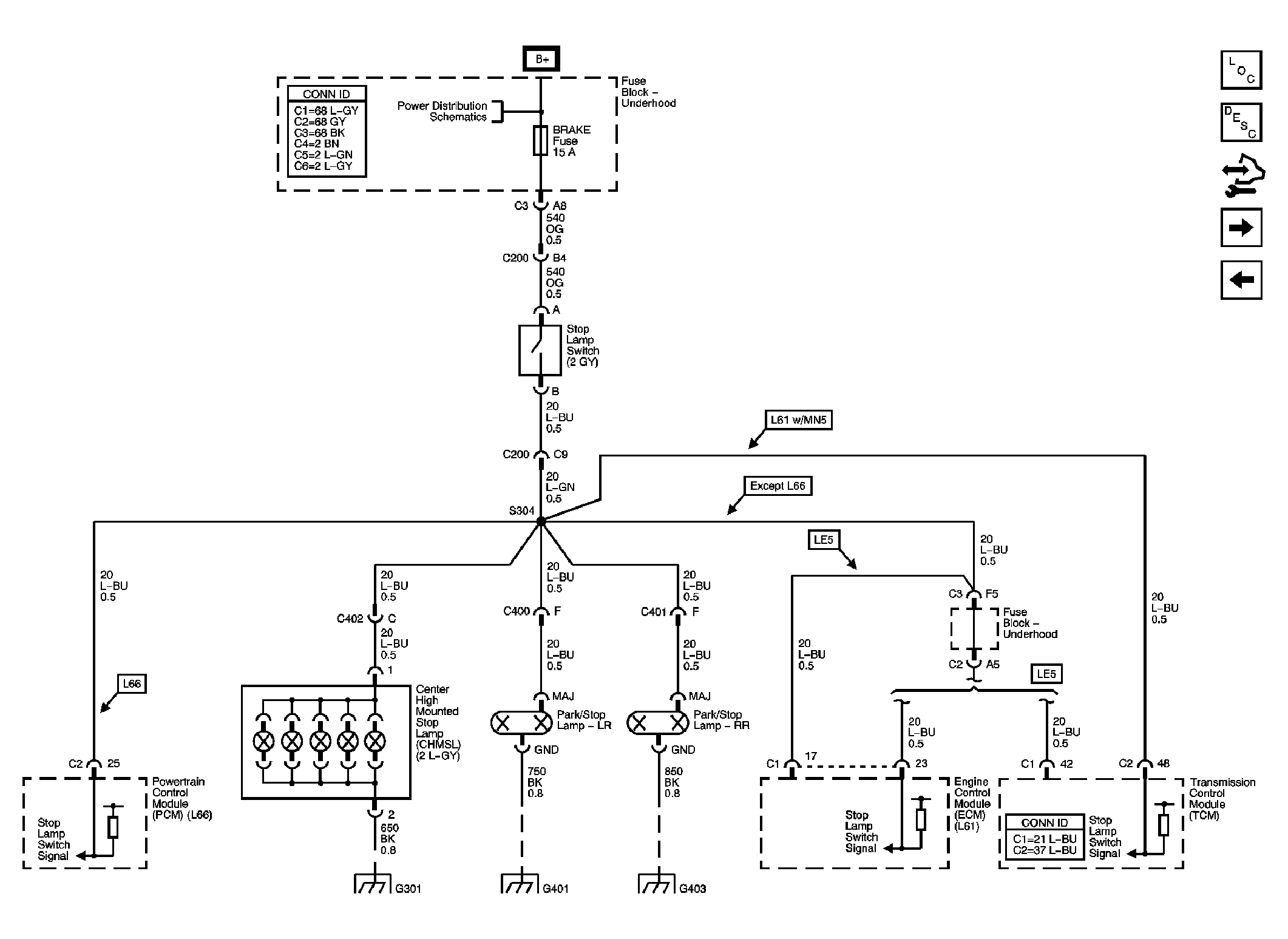

Fig 4: Stop Lamps

Courtesy of GENERAL MOTORS CORP.

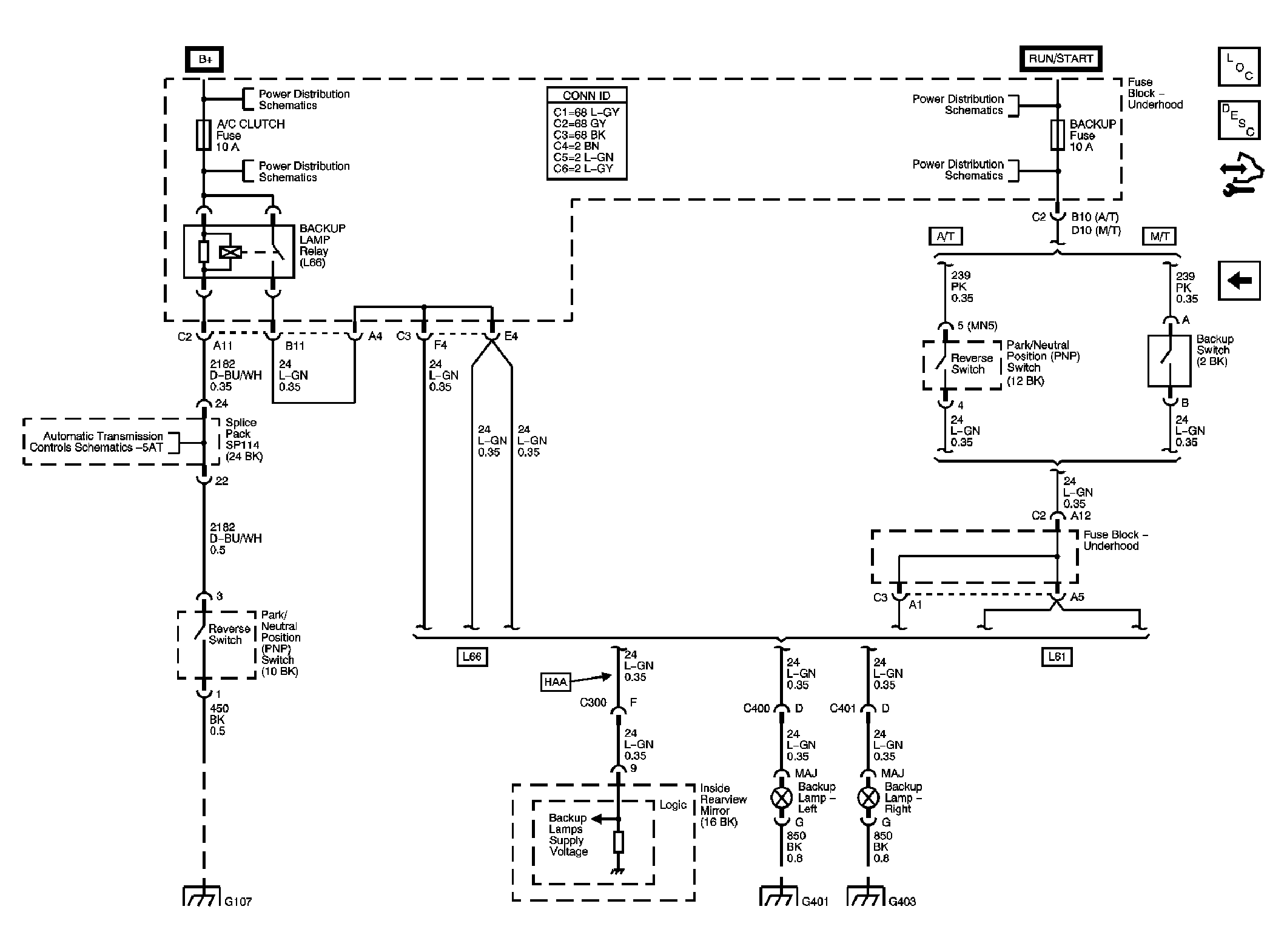

Fig 5: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
