Floor Flood Lamp Switch Replacement (Driver Side)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

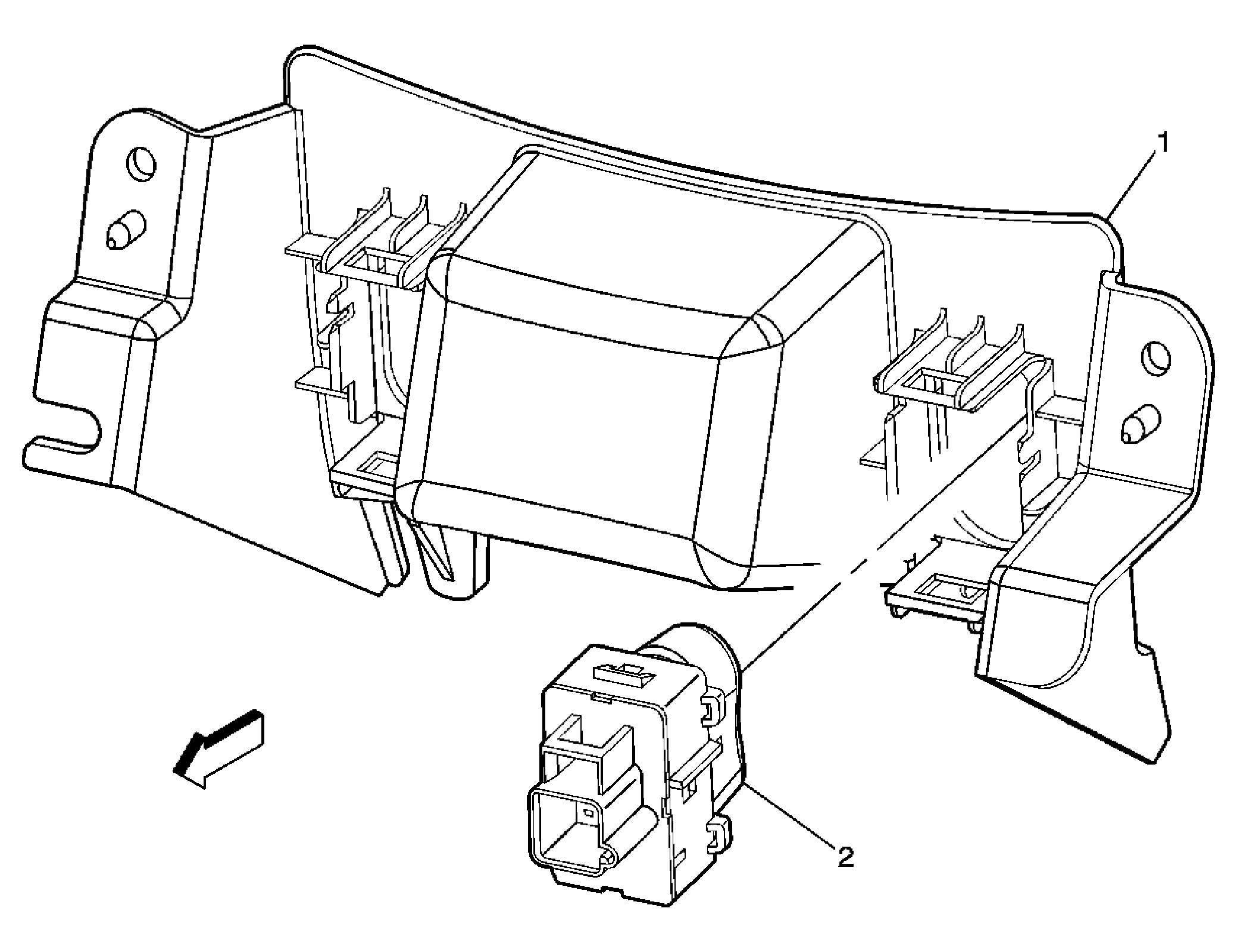

Fig 1: View Of Front Floor Flood Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Storage Compartment Assembly Refer to Instrument Panel Storage Compartment Replacement .
2	Floor Flood Lamp Switch Assembly Tip: Disconnect electrical connector.
