Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

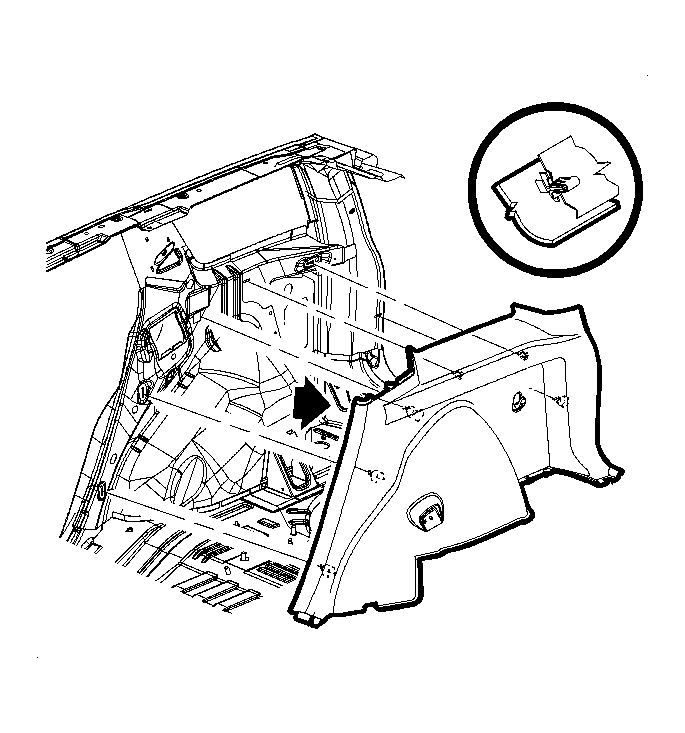

Fig 1: Locating Panel Clips

Courtesy of GENERAL MOTORS CORP.

Position the rear side trim panel to the vehicle. Place the trim under the seat belt webbing.
On the driver side, connect the accessory wire harness.
Push at the clip locations to secure the panel to the vehicle.
Secure the weatherstrip seal over the trim edge.
Install the lock pillar garnish molding. Refer to Lock Pillar Upper Garnish Molding Replacement .

Fig 2: View Of Rear Lower Trim Panel

Courtesy of GENERAL MOTORS CORP.

Install the finish molding to the rear upper trim.
Install the rear upper trim molding. Refer to Rear Window Upper Molding Replacement .
Install the carpet retainer. Refer to Rear Carpet Retainer Replacement .

Fig 3: Load Floor Storage Bin

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the load floor storage bins.
Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).

Fig 4: Cargo Hooks

Courtesy of GENERAL MOTORS CORP.

Install the cargo hooks.
Tighten: Tighten the fasteners to 25 N.m (18 lb ft).
