SIR Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

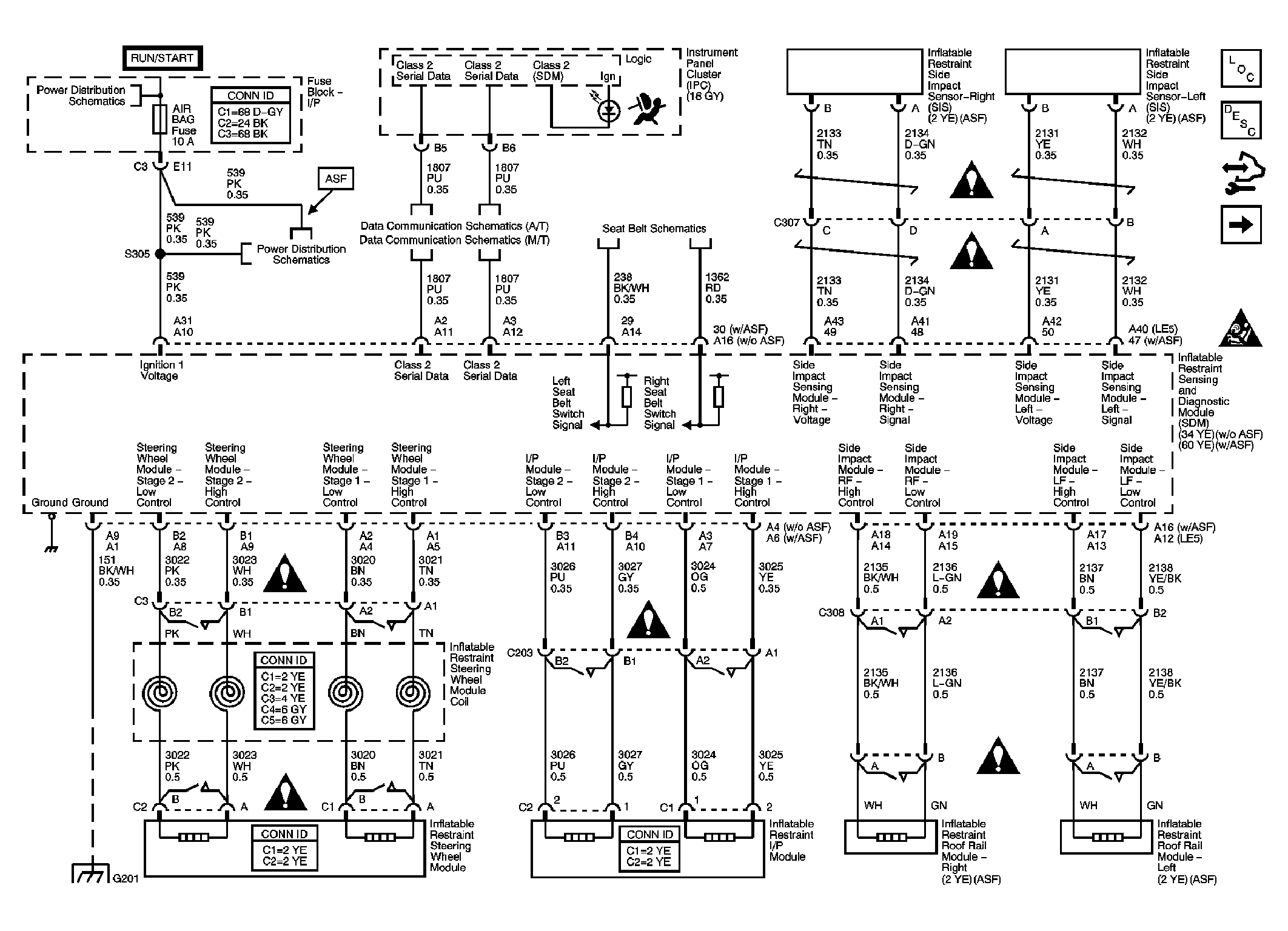

Fig 1: Modules and Sensors

Courtesy of GENERAL MOTORS CORP.

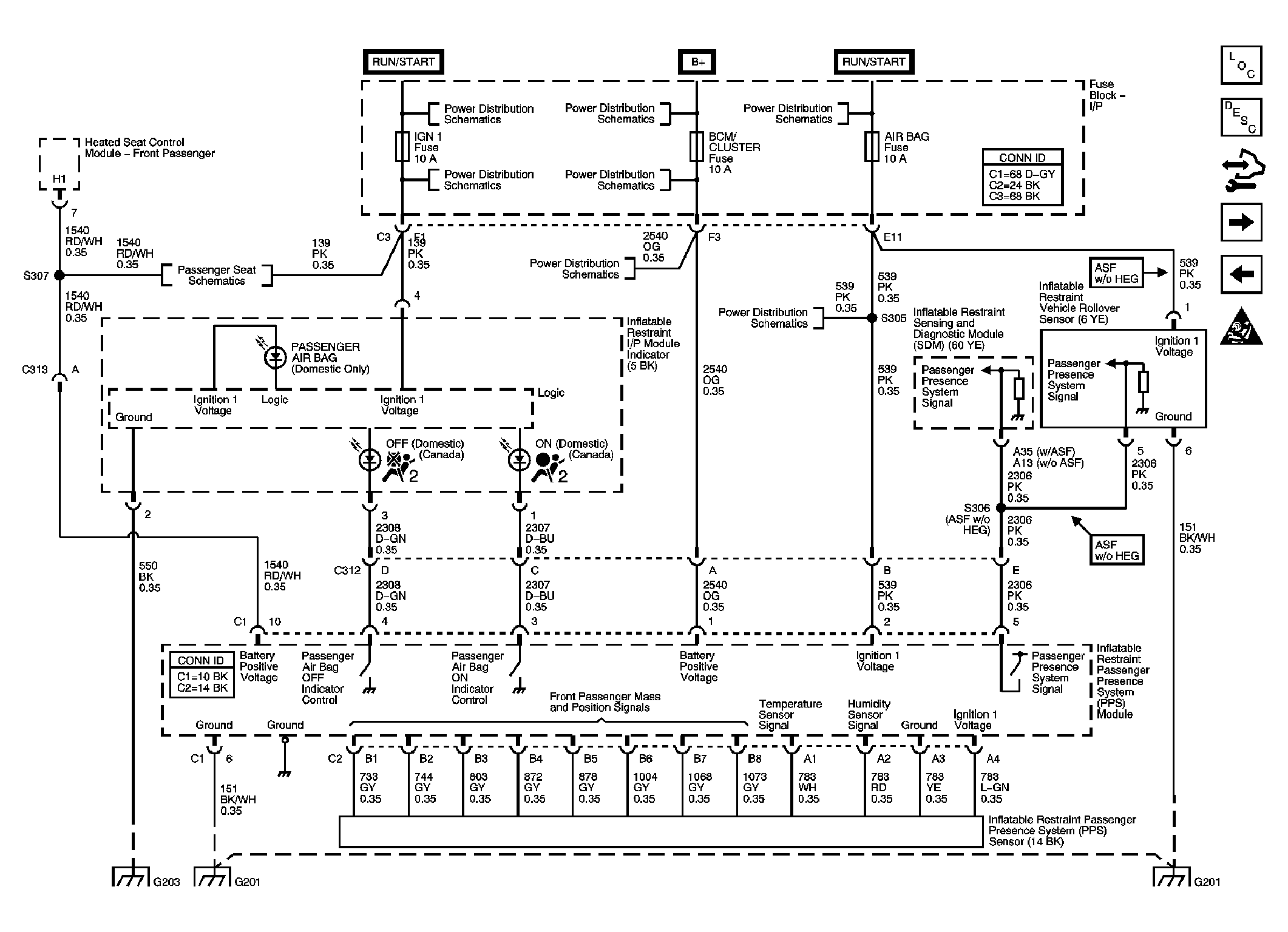

Fig 2: Passenger Presence System w/ ASF

Courtesy of GENERAL MOTORS CORP.

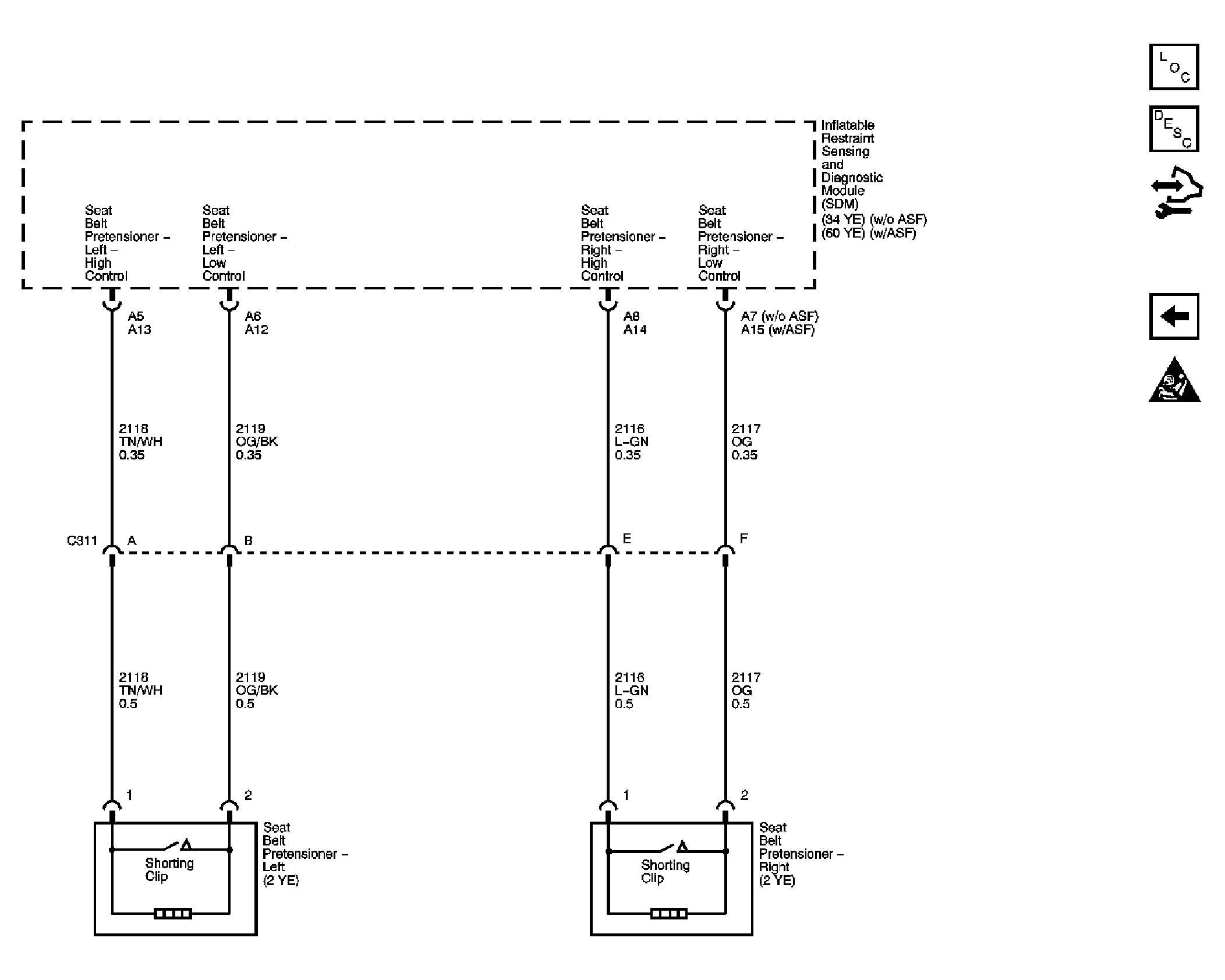

Fig 3: Pretensioners

Courtesy of GENERAL MOTORS CORP.
