Seat Belt Pretensioner - Right

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

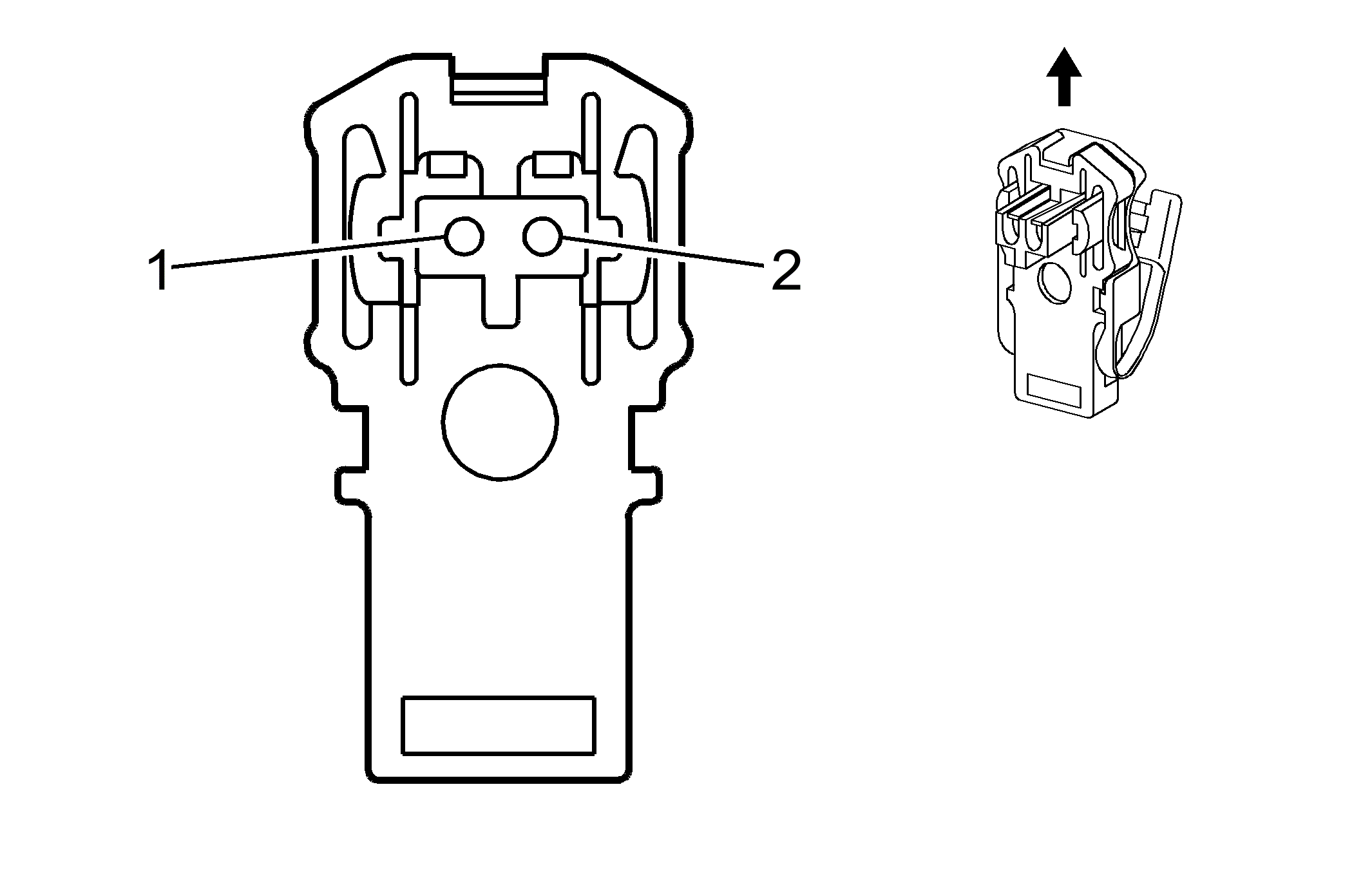

Fig 1: Seat Belt Pretensioner - Right Connector End Views
GM739646Courtesy of GENERAL MOTORS CORP.
Seat Belt Pretensioner - Right Connector Parts Information

Connector Part Information
  • OEM: CA252929002
  • Service: See Catalog
  • Description: 2-Way F (PU) With (YE) Case
Seat Belt Pretensioner - Right Connector Terminal Identification

Pin Wire Color Circuit Number Function
1 L-GN 2116 Seat Belt Pretensioner - Right - High Control
2 OG 2117 Seat Belt Pretensioner - Right - Low Control
