Inflatable Restraint Side Impact Sensor (SIS) - Left (w/ASF)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

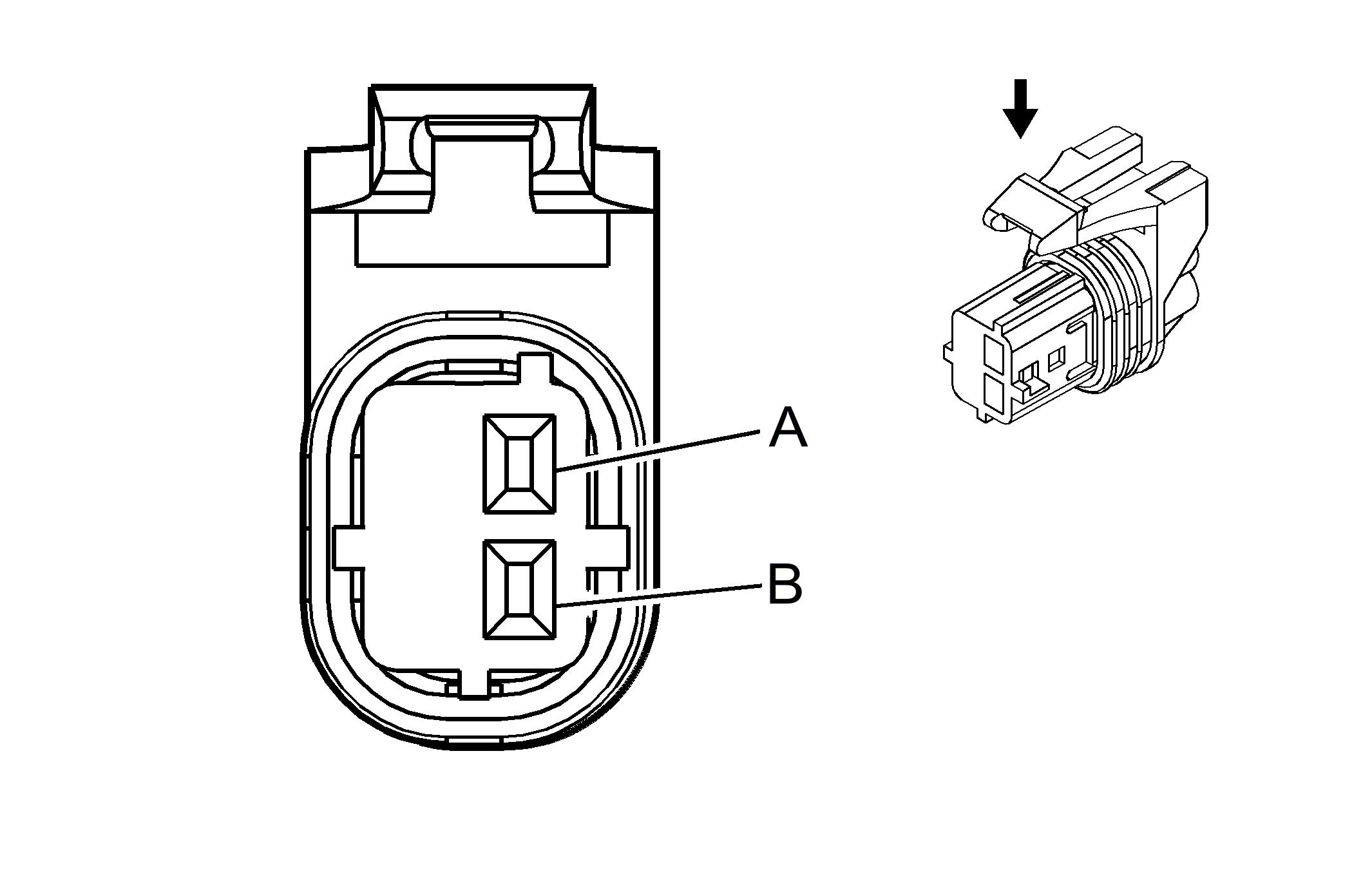

Fig 1: Inflatable Restraint Side Impact Sensor (SIS) - Left (w/ASF) Connector End Views
GM684970Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Sensor (SIS) - Left (w/ASF) Connector Parts Information

Connector Part Information
  • OEM: 15356726
  • Service: See Catalog
  • Description: 2-Way F GT 280 Series Sealed 4.0 (YE)
Inflatable Restraint Side Impact Sensor (SIS) - Left (w/ASF) Connector Terminal Identification

Pin Wire Color Circuit Number Function
A WH 2132 Side Impact Sensing Module Signal - Left
B YE 2131 Side Impact Sensing Module Voltage - Left
