No. 8 Display Screen Does Not Change To The Night Mode (Front And Rear Combination Lights Operate Normally)

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

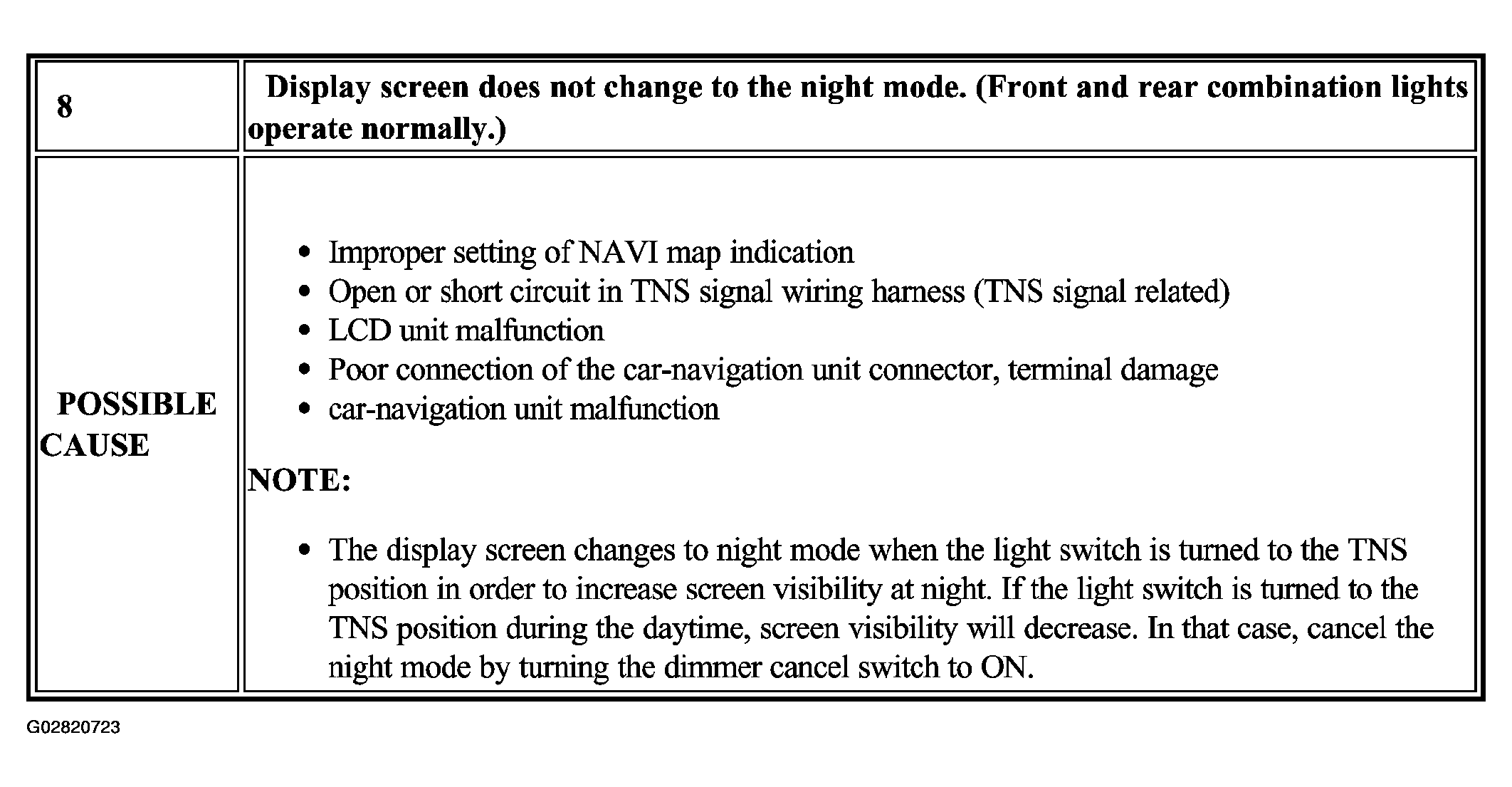

Fig 1: No.8 Display Screen Does Not Change To The Night Mode (Front And Rear Combination Lights Operate Normally) - Possible Cause Chart

Courtesy of MAZDA MOTORS CORP.

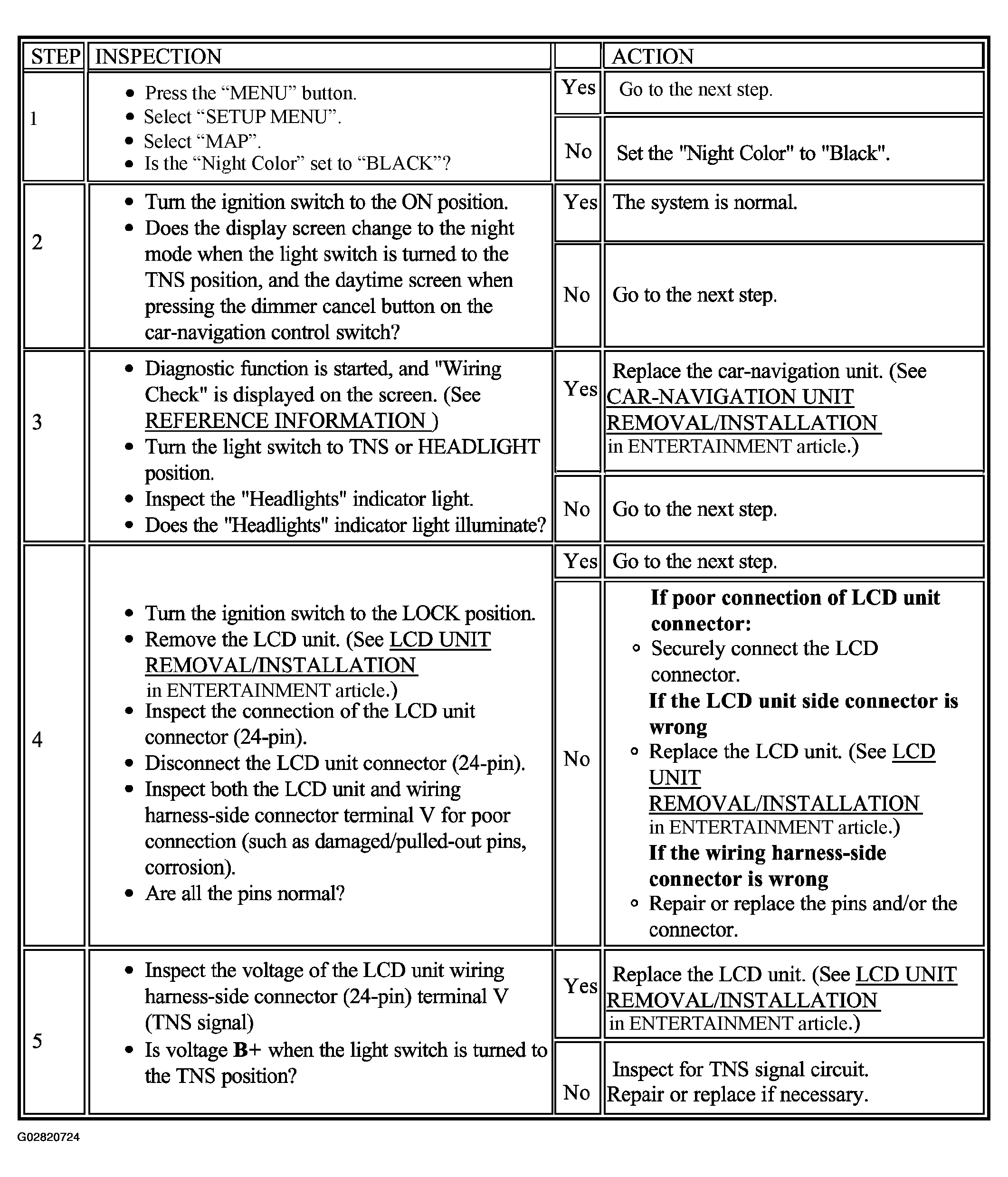

Fig 2: No.8 Display Screen Does Not Change To The Night Mode (Front And Rear Combination Lights Operate Normally) - Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
