No. 2 Display Screen Changes To Black

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

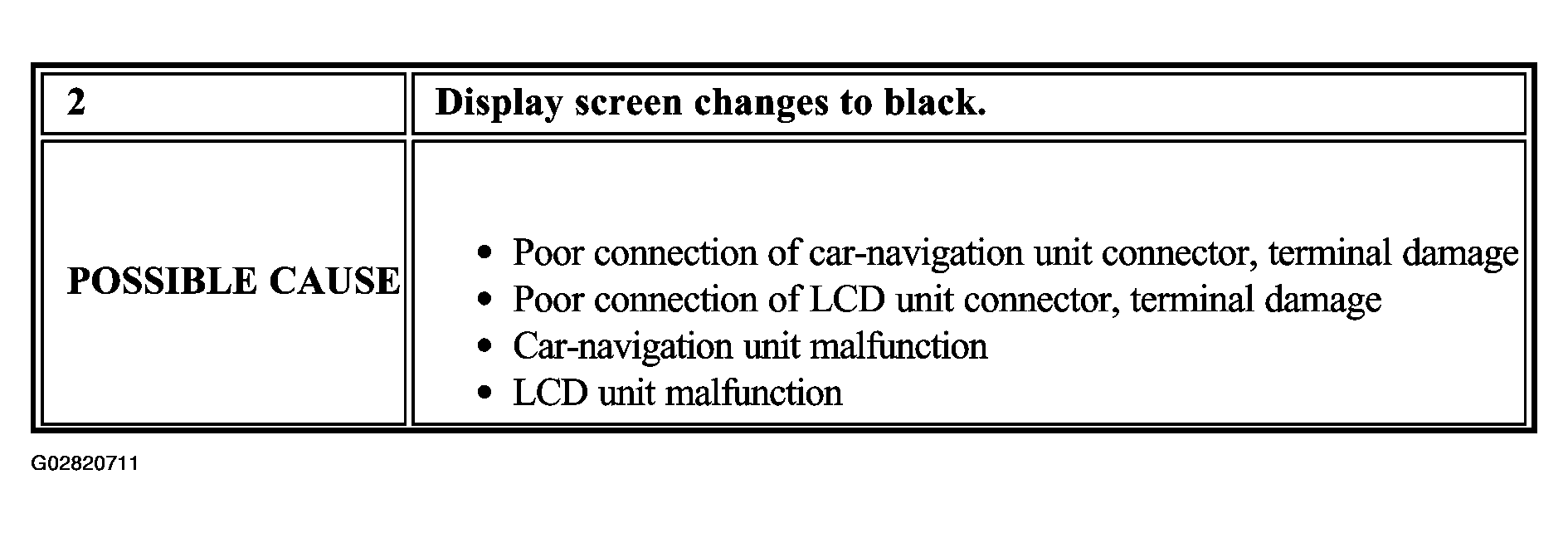

Fig 1: No.2 Display Screen Changes To Black - Possible Cause Chart

Courtesy of MAZDA MOTORS CORP.

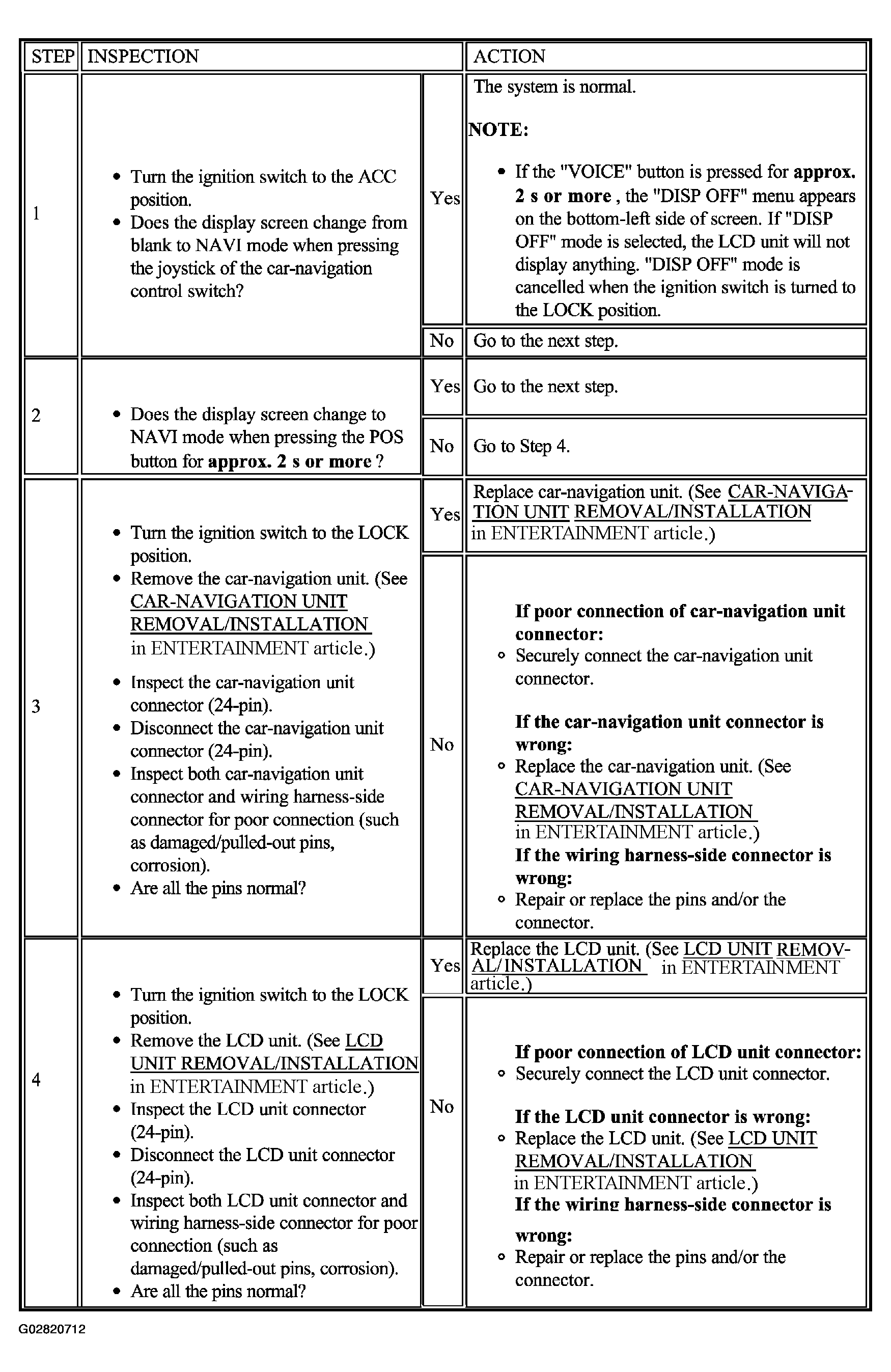

Fig 2: No.2 Display Screen Changes To Black - Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
