No. 1 Display Screen Does Not Open Even If The Ignition Switch Is Turned To The Acc Position

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

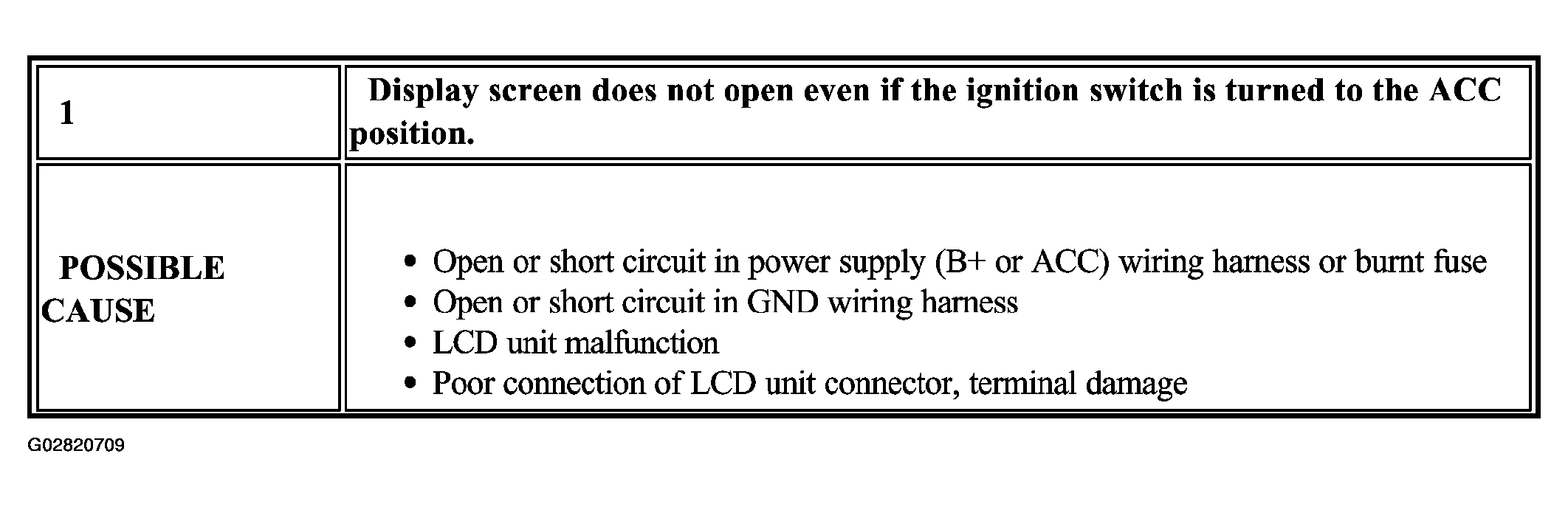

Fig 1: No.1 Display Screen Does Not Open Even If The Ignition Switch Is Turned To The Acc Position - Possible Cause Chart

Courtesy of MAZDA MOTORS CORP.

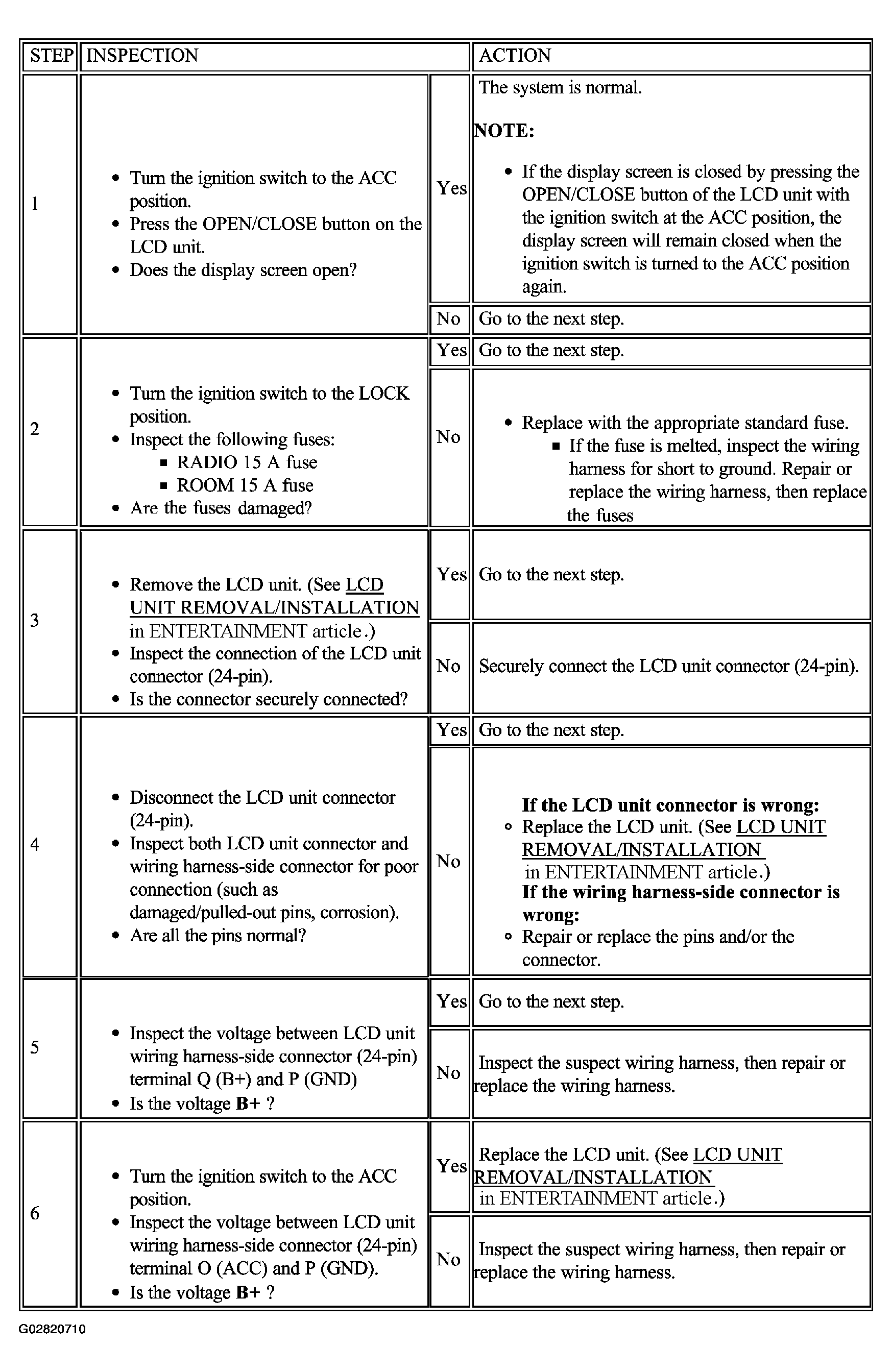

Fig 2: No.1 Display Screen Does Not Open Even If The Ignition Switch Is Turned To The Acc Position - Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
