Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to JACKING AND LIFTING the Vehicle in General Information.
  2. Remove the transfer case shield mounting bolts (3) from the transmission support.
  3. Remove the transfer case shield (2) from transmission support.

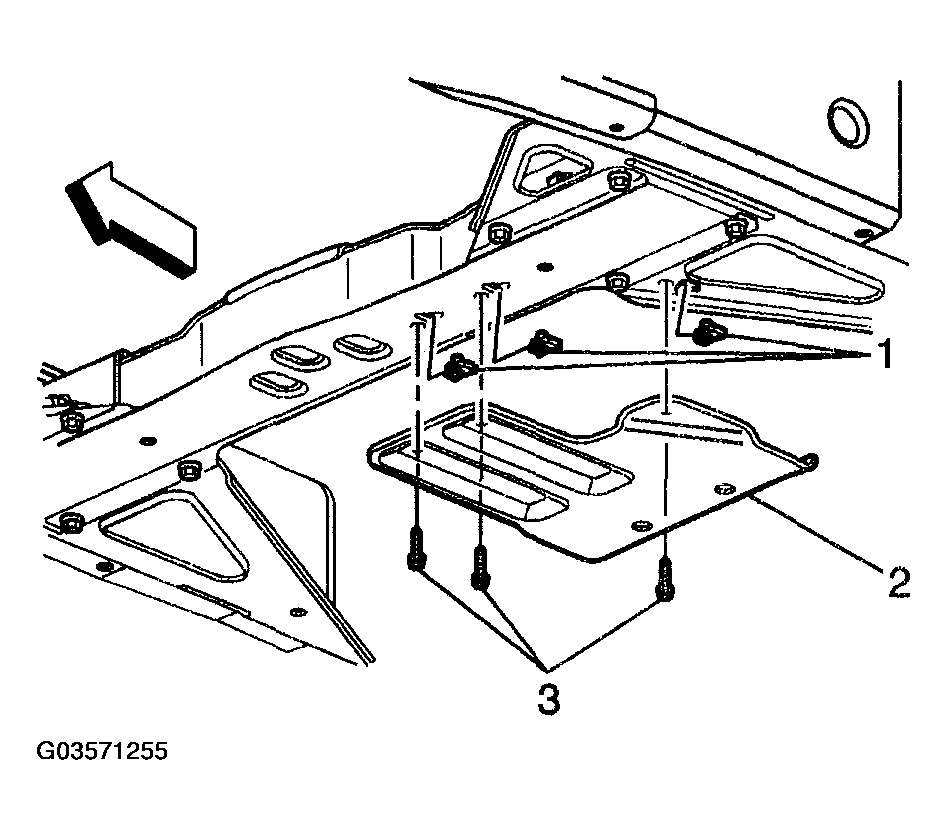

    Fig 1: Removing Transfer Case Shield Mounting Bolts
    G03571255Courtesy of GENERAL MOTORS CORP.
