Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear steering gear crossmember to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear steering gear crossmember mounting bolts.

    Tighten

    Tighten the rear steering gear crossmember mounting bolts to 50 N.m (37 lb.ft).

  3. Install the front steering gear crossmember rear mounting bolts.

    Tighten

    Tighten the rear steering gear crossmember mounting bolts to 50 N.m (37 lb.ft).

  4. Lower the vehicle.

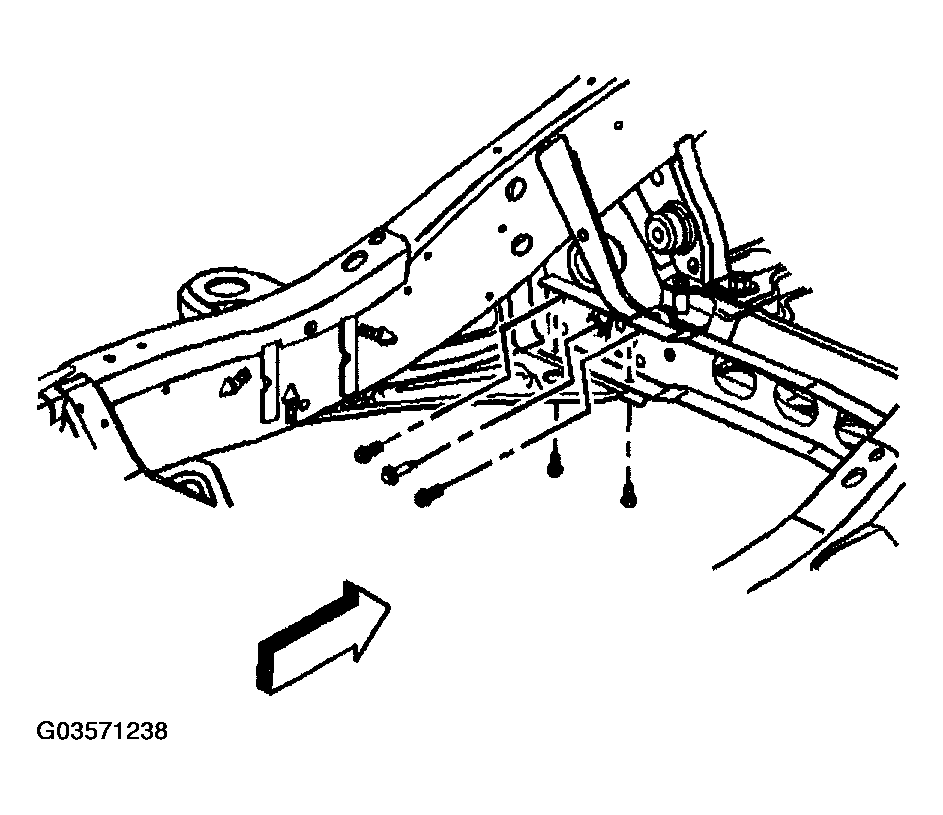

    Fig 1: Installing Front Steering Gear Crossmember Rear Mounting Bolts
    G03571238Courtesy of GENERAL MOTORS CORP.
