Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator support shield.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Remove the radiator support shield mounting nuts and bolts.

    Tighten

    Tighten the radiator support shield mounting nuts to 17 N.m (13 lb.ft).

  3. Lower the vehicle.

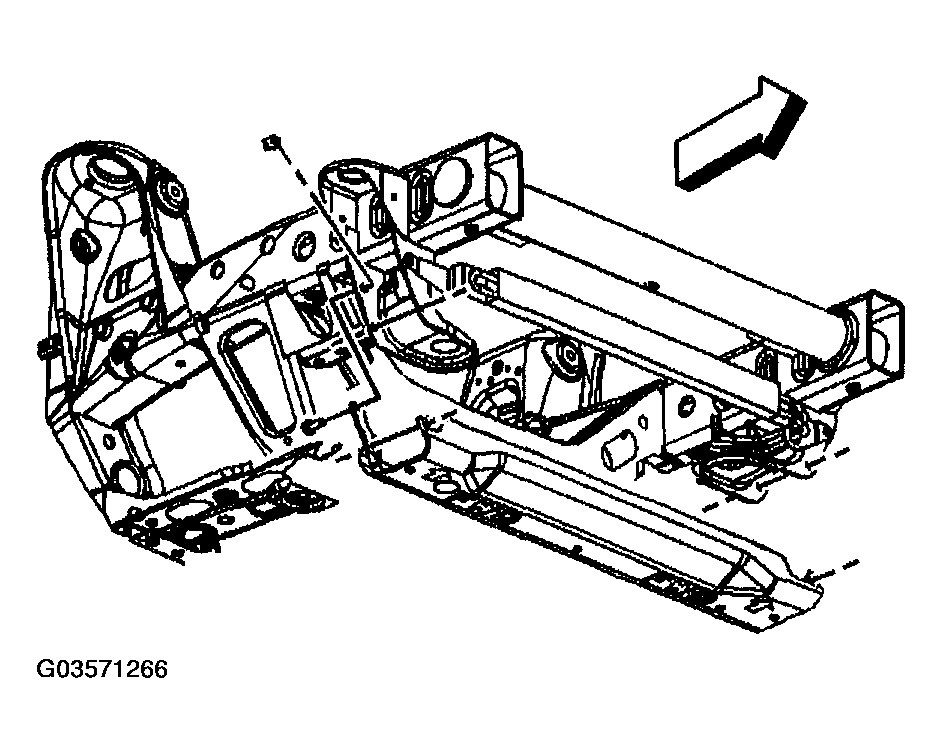

    Fig 1: Installing Radiator Support Shield
    G03571266Courtesy of GENERAL MOTORS CORP.
