Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper cushions (2) to the vehicle.
  2. Raise the frame slightly on the hoist.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the lower cushions, retainers, and bolts to the 5 body mount locations.

    Tighten

    Tighten the bolts to 80 N.m (59 lb.ft).

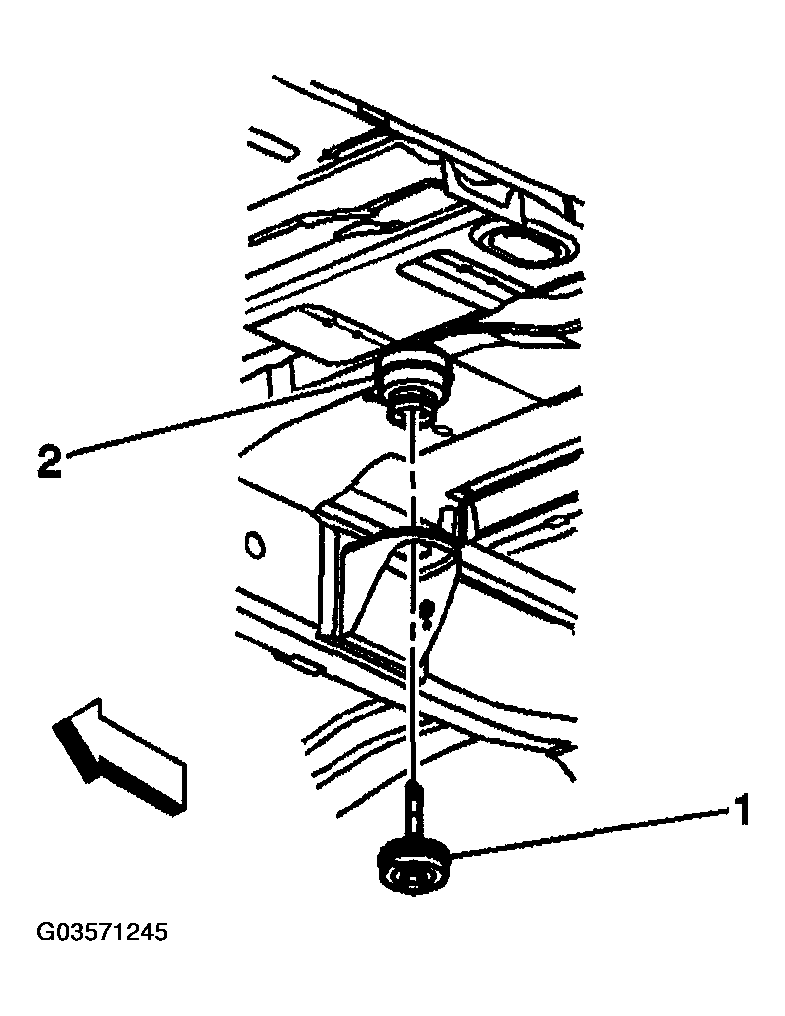

    Fig 1: Installing Upper Cushions To Vehicle
    G03571245Courtesy of GENERAL MOTORS CORP.
  4. Install the lower cushion, retainer, and bolt to the radiator support.

    Tighten

    Tighten the bolts to 80 N.m (59 lb.ft).

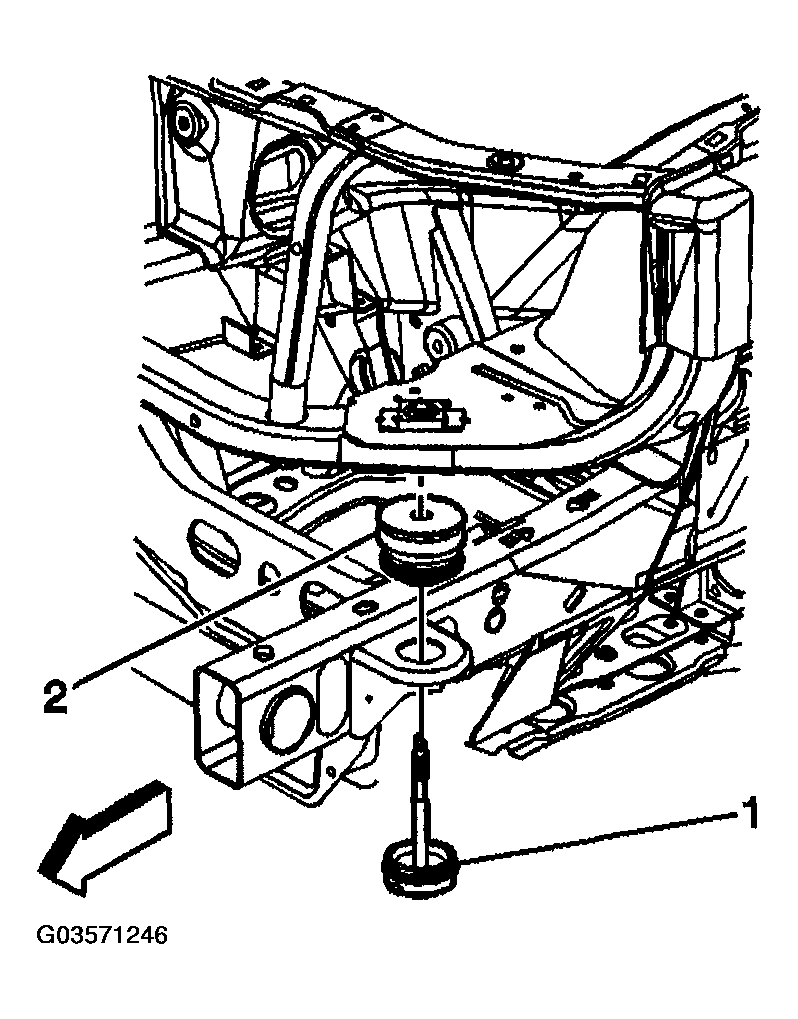

    Fig 2: Installing Lower Cushion, Retainer, And Bolt To Radiator Support
    G03571246Courtesy of GENERAL MOTORS CORP.
