Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING the Vehicle in General Information.
  2. Remove the mounting bolts (2) from the frame brace (1).
  3. Remove the frame brace (1) from the frame.

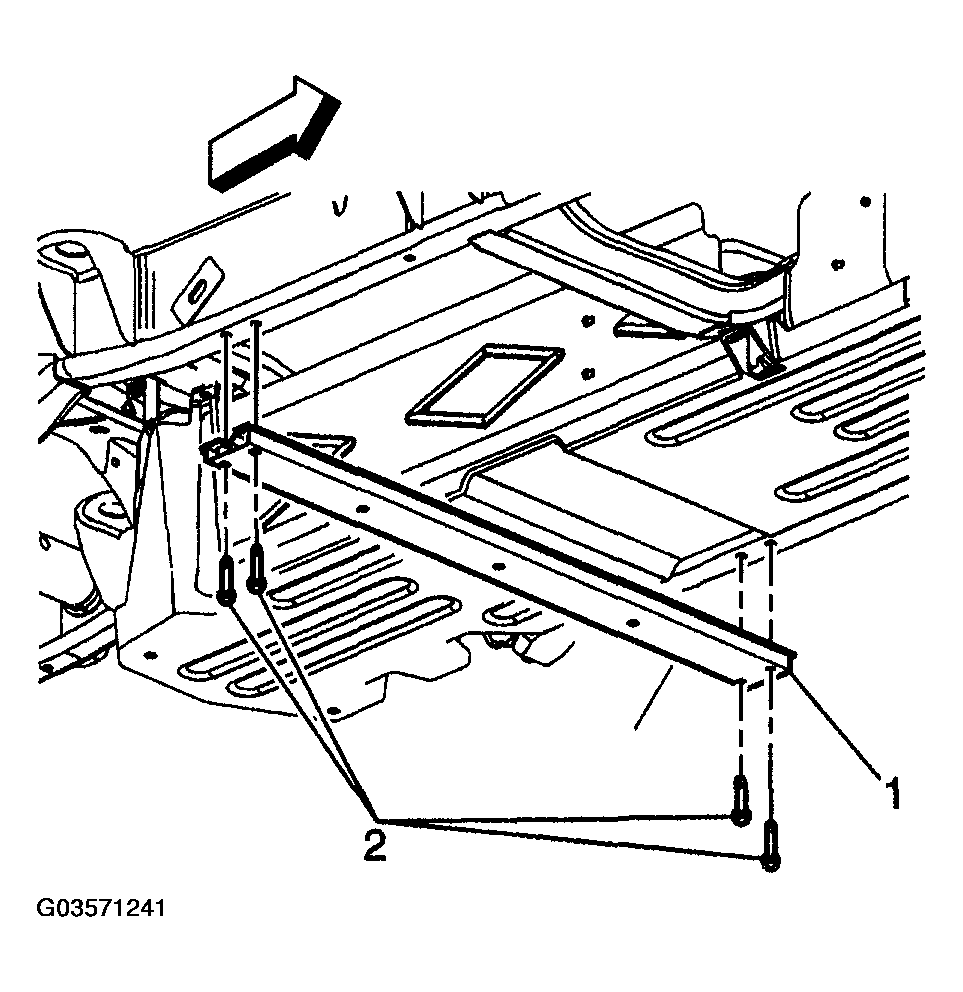

    Fig 1: Removing Mounting Bolts From Frame Brace
    G03571241Courtesy of GENERAL MOTORS CORP.
