WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
Install the frame brace (1) to the frame using the mounting bolts (2).
Tighten
Tighten the bolts to 45 N.m (33 lb.ft).
Lower the vehicle.

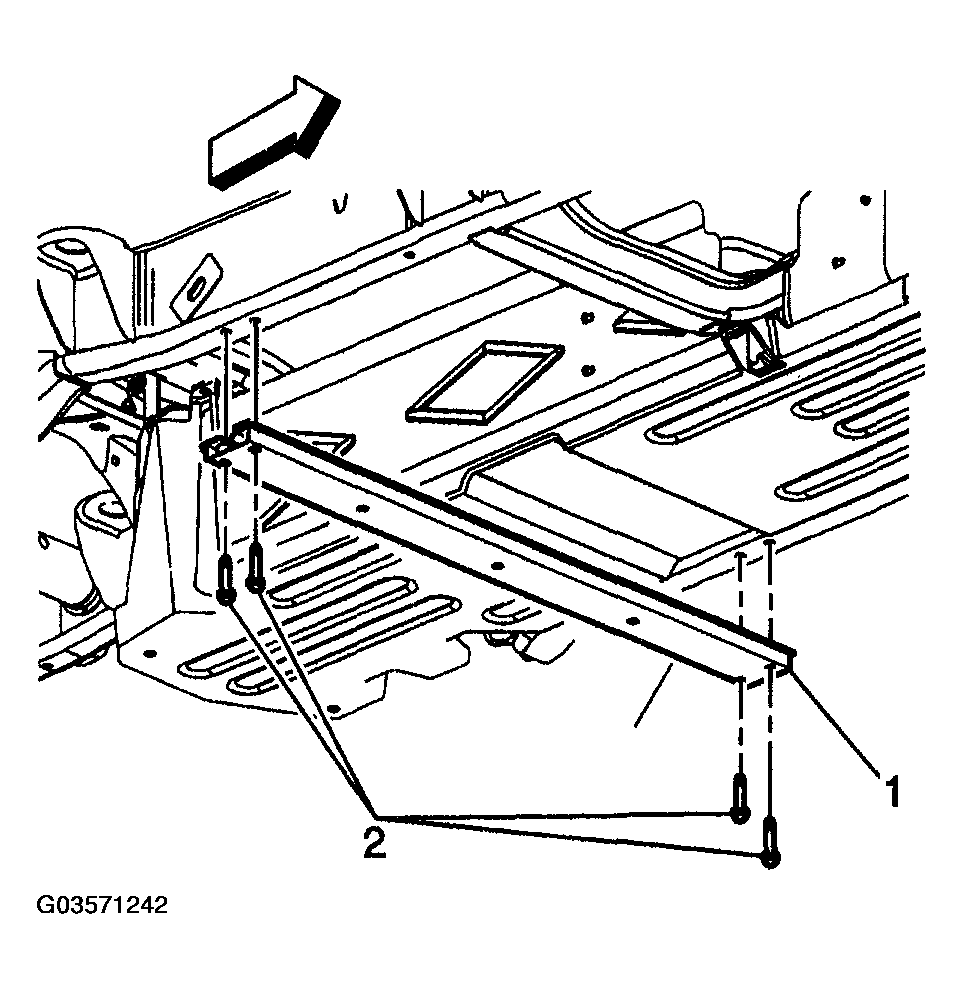

Fig 1: Installing Frame Brace To Frame Using Mounting Bolts
