Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

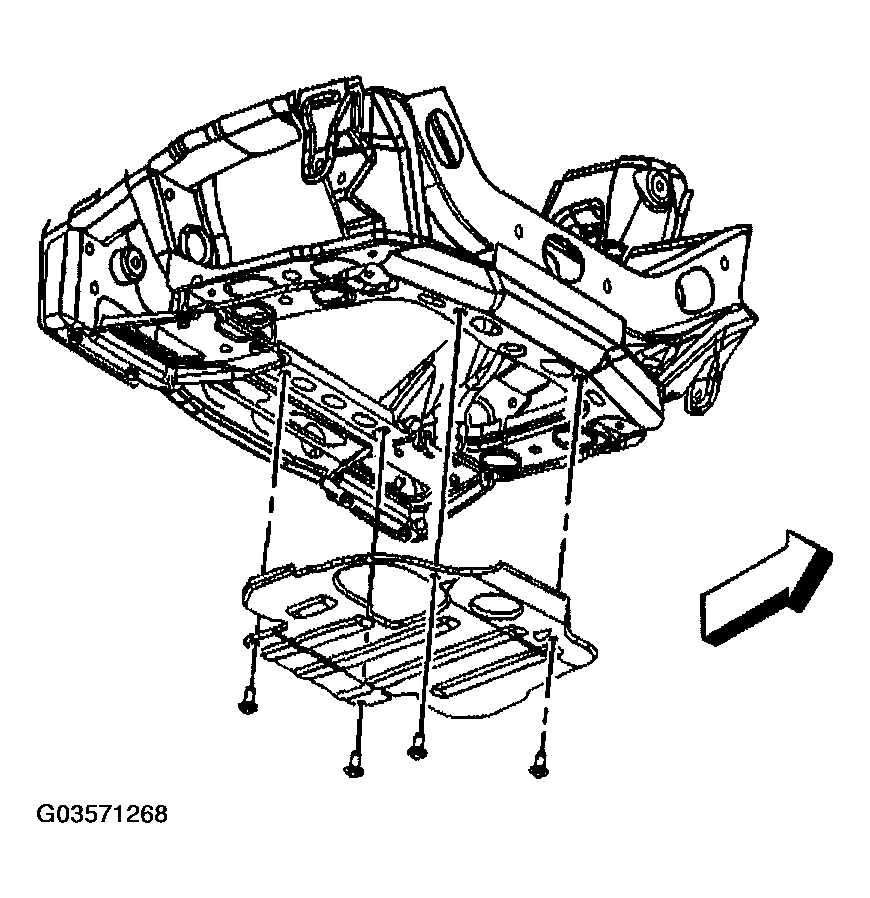

- Install the engine shield.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
- Install the engine shield mounting bolts.
Tighten
Tighten the engine shield mounting bolts to 25 N.m (18 lb.ft).
- Lower the vehicle.
