Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts that retain the assist step support brackets to the body.
Remove the assist step assembly from the vehicle.
Place the step assembly on a clean, prepared surface.

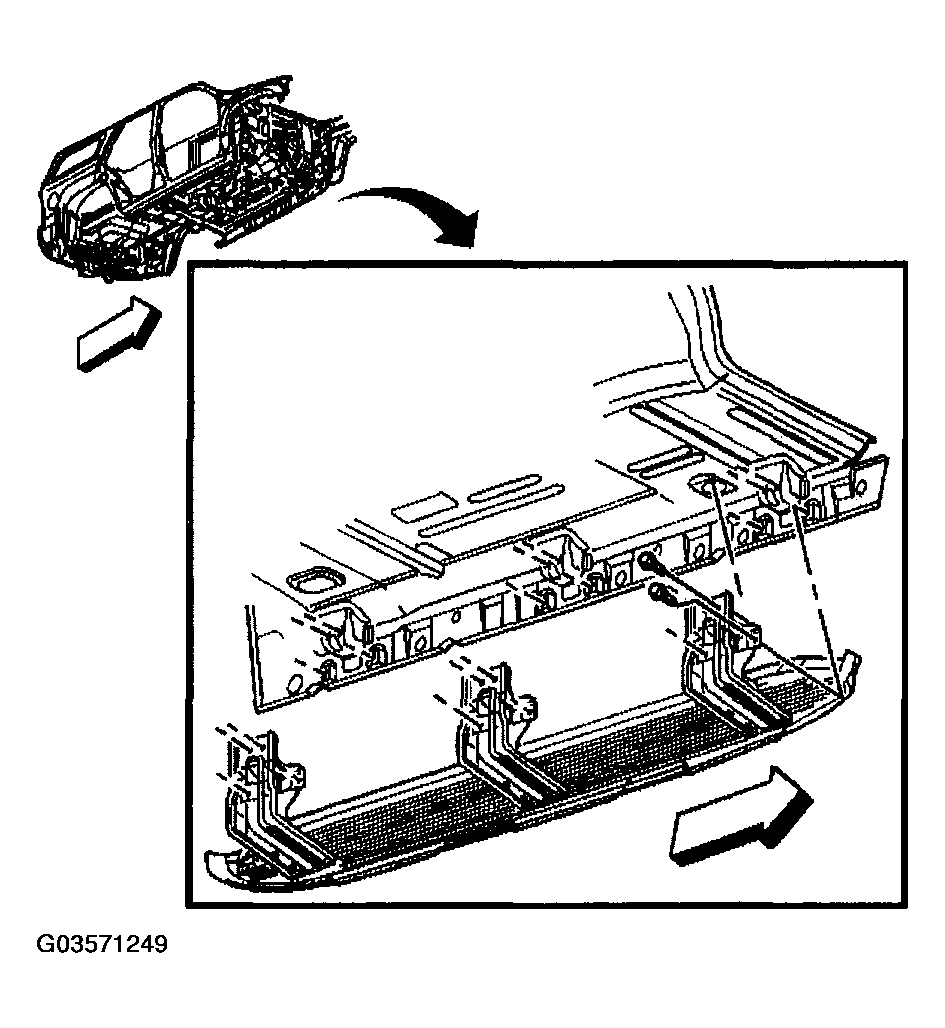

Fig 1: Removing Assist Step Assembly From Vehicle
Courtesy of GENERAL MOTORS CORP.
Remove the nuts (1) that retain the assist step to the support brackets.
Remove the support brackets from the assist step.

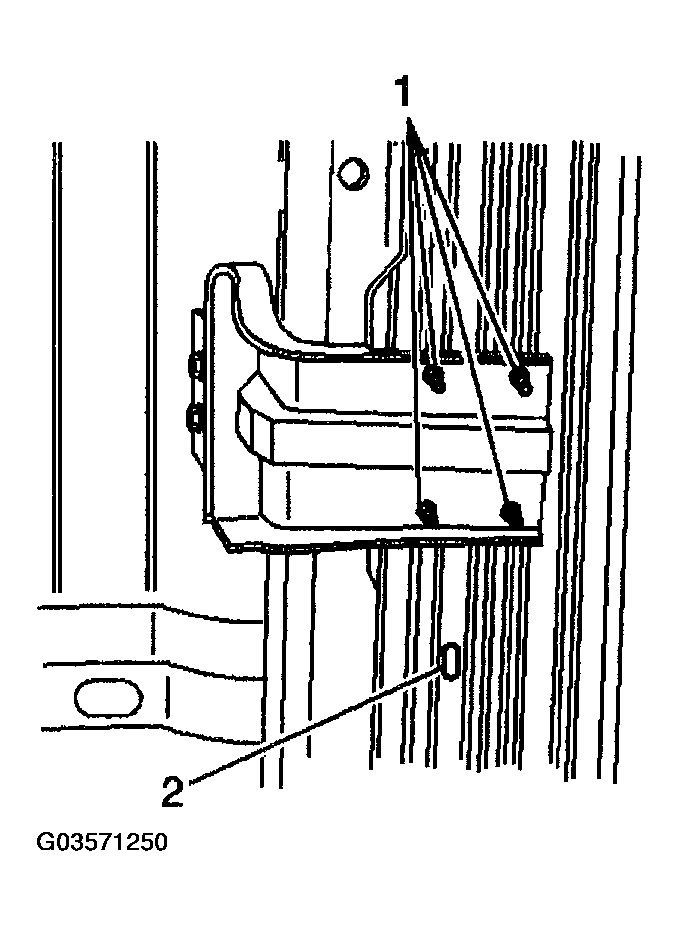

Fig 2: Removing Nuts That Retain Assist Step To Support Brackets
Courtesy of GENERAL MOTORS CORP.
