Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts (1) that retain the assist step to the assist step support brackets.
  2. Remove the assist step from the support brackets.
  3. Place the assist step on a clean, prepared surface.
  4. Release the fasteners (2) that retain the assist step pad to the assist step.
  5. Remove the assist step pad from the assist step.

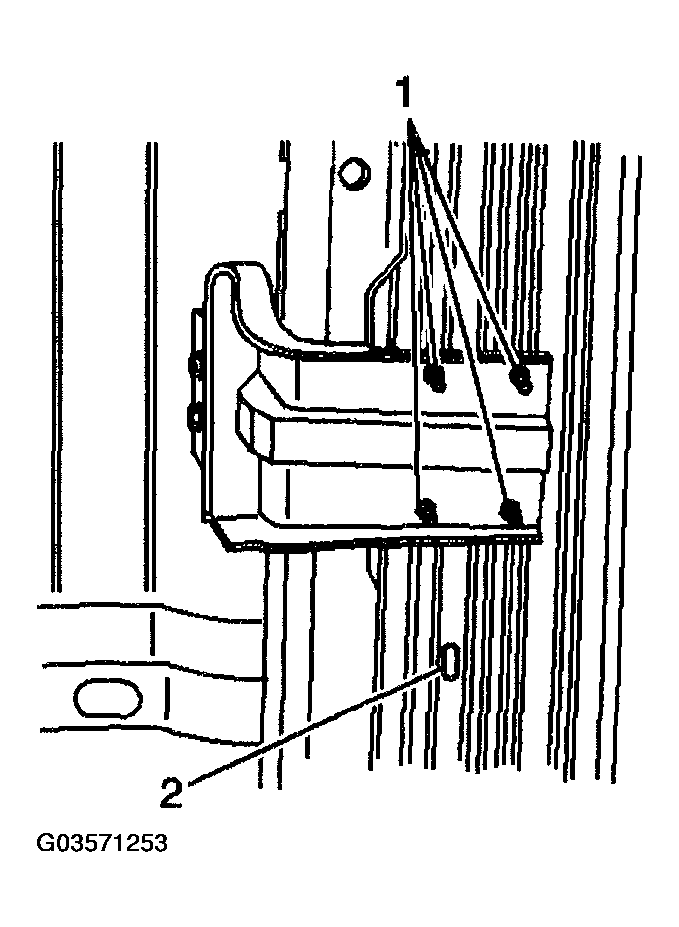

    Fig 1: Removing Nuts And Releasing Fasteners
    G03571253Courtesy of GENERAL MOTORS CORP.
