Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the assist step pad to the assist step, ensuring that the fasteners (2) are fully seated.
Position the assist step to the vehicle.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the nuts (1) that retain the assist step to the assist step support brackets.
Tighten

Tighten the nuts to 25 N.m (18 lb.ft).

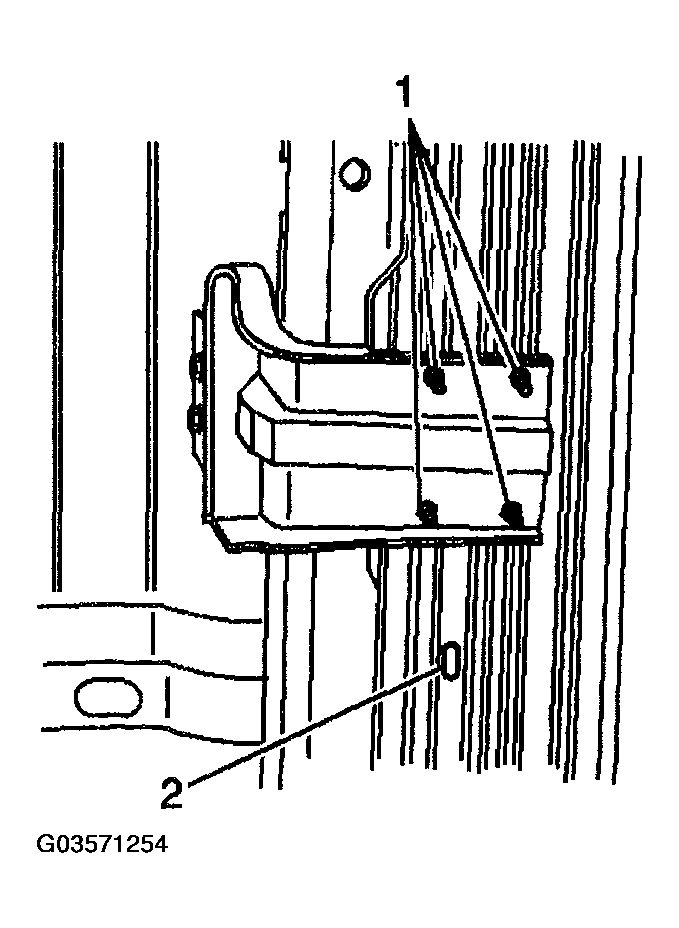

Fig 1: Installing Nuts And Fasteners
Courtesy of GENERAL MOTORS CORP.
