Oil Pressure High or Low

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

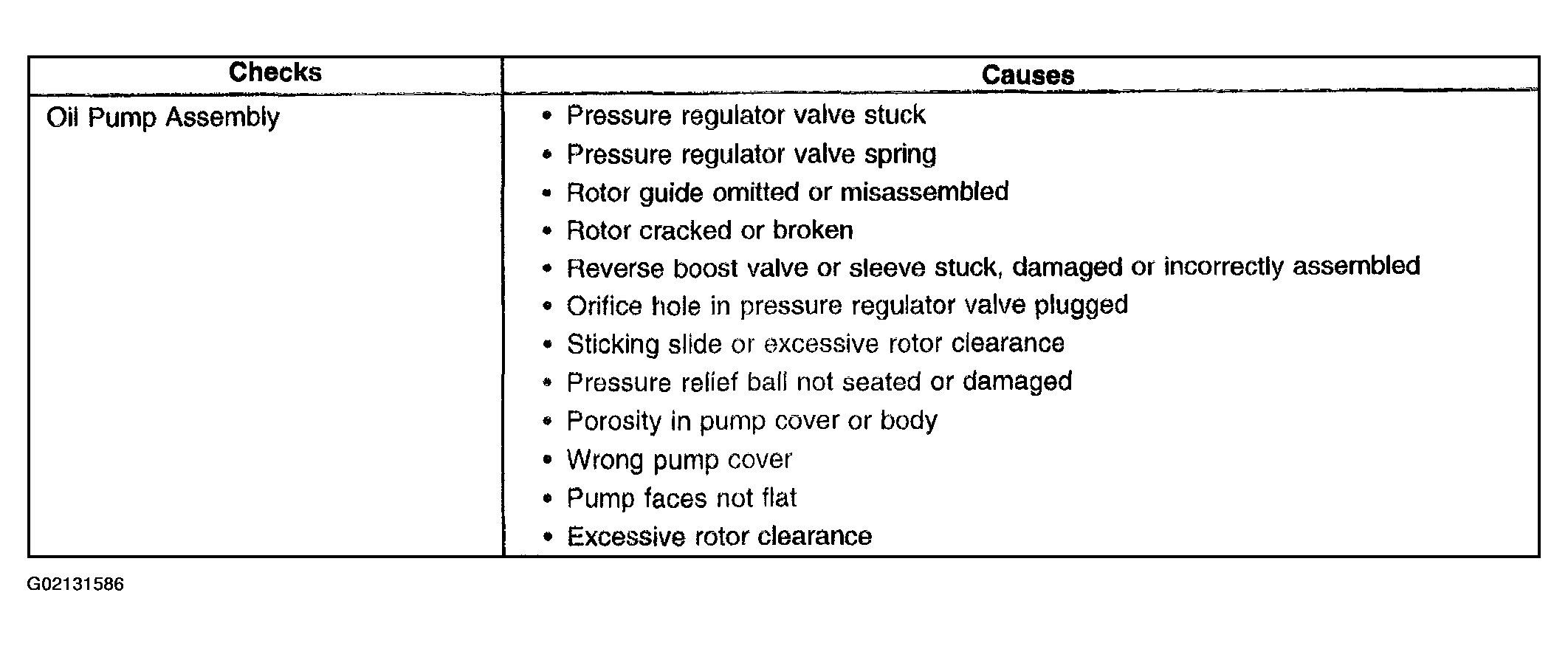

Fig 1: Oil Pressure High Or Low (1 Of 2)
G02131586Courtesy of GENERAL MOTORS CORP.

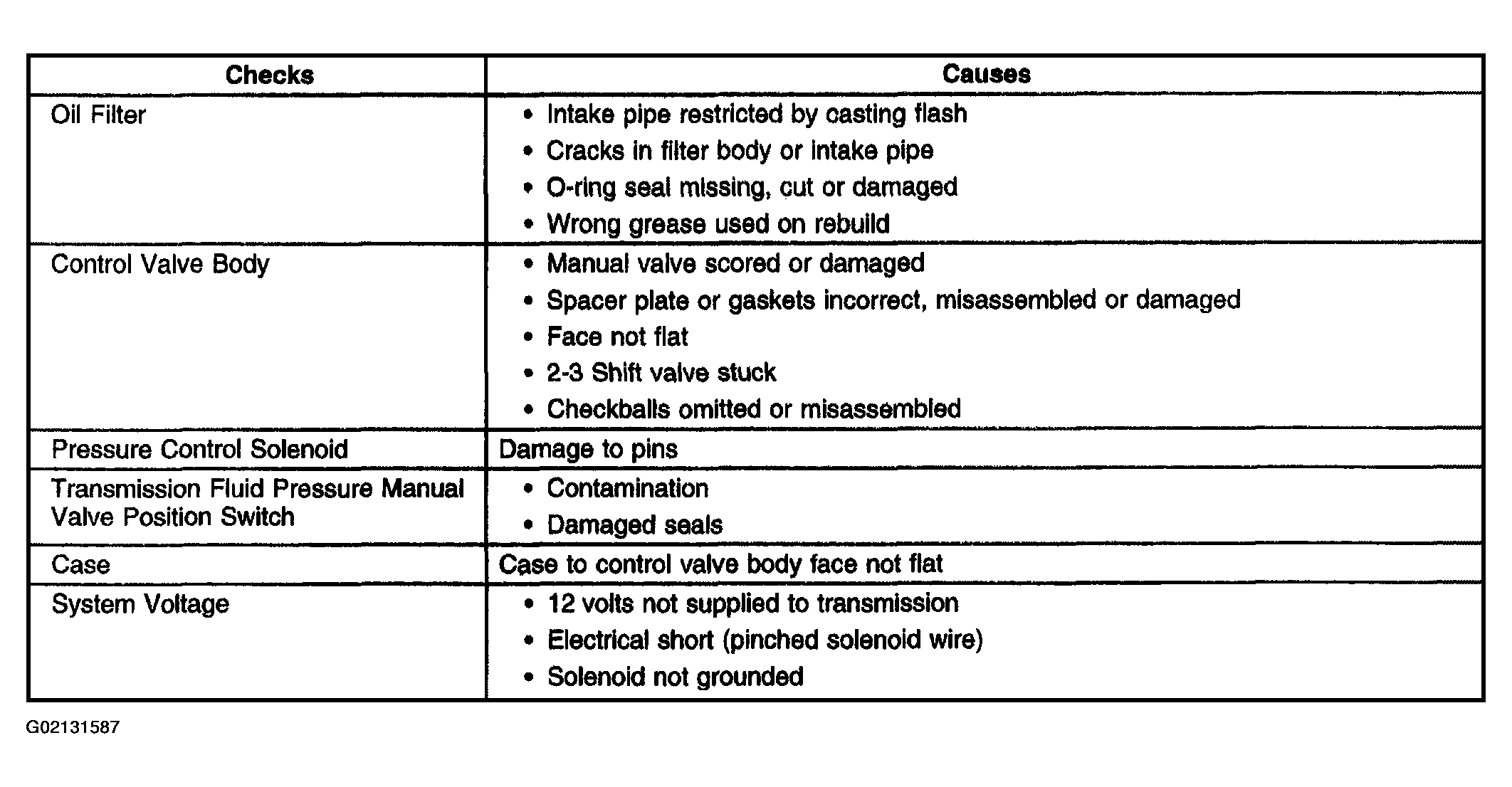

Fig 2: Oil Pressure High Or Low (2 Of 2)
G02131587Courtesy of GENERAL MOTORS CORP.
