No Reverse or Slips in Reverse

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

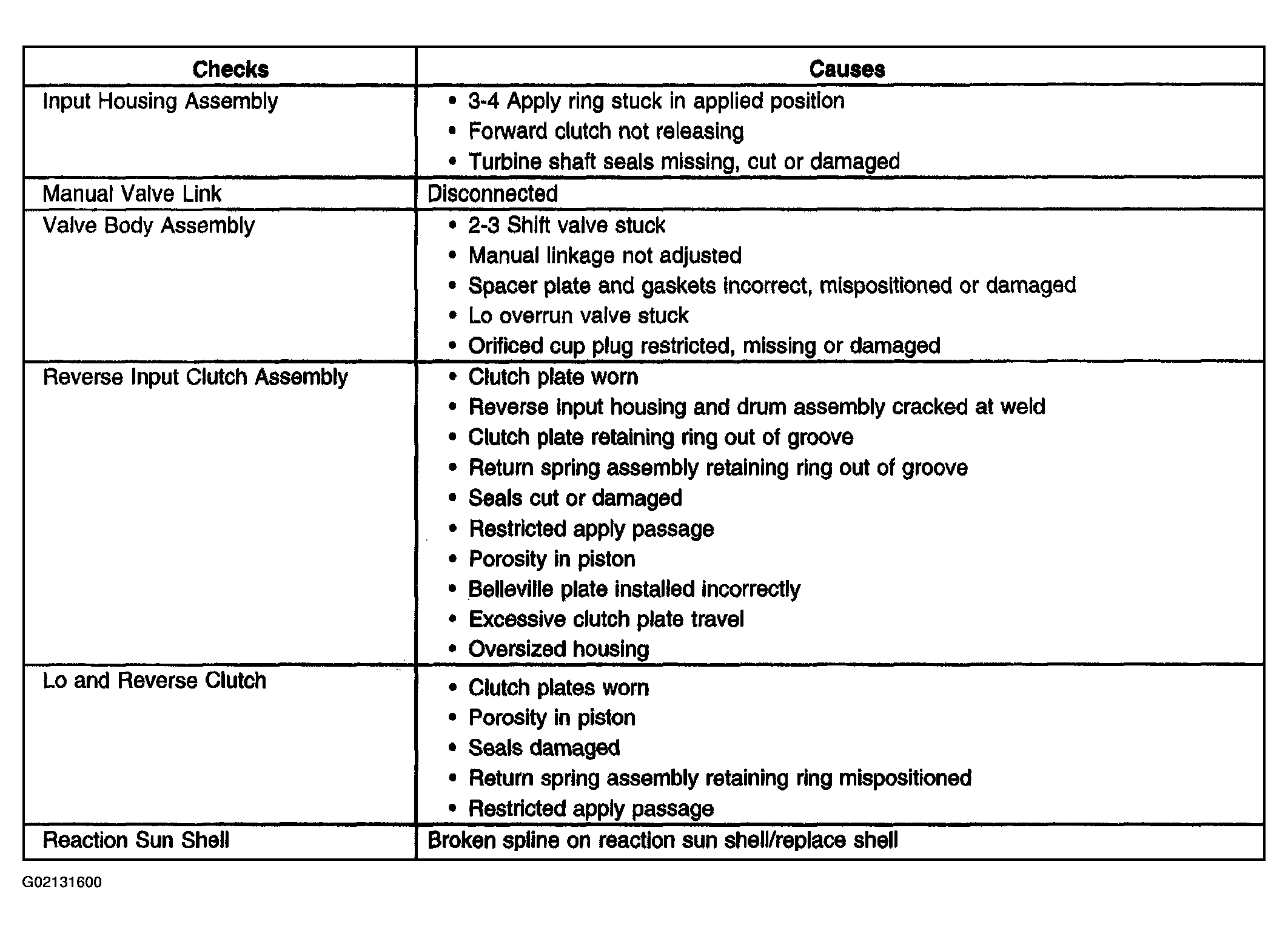

Fig 1: No Reverse Or Slips In Reverse
G02131600Courtesy of GENERAL MOTORS CORP.
