Automatic Transmission Oil Cooler Flushing and Flow Test: Clean-up

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

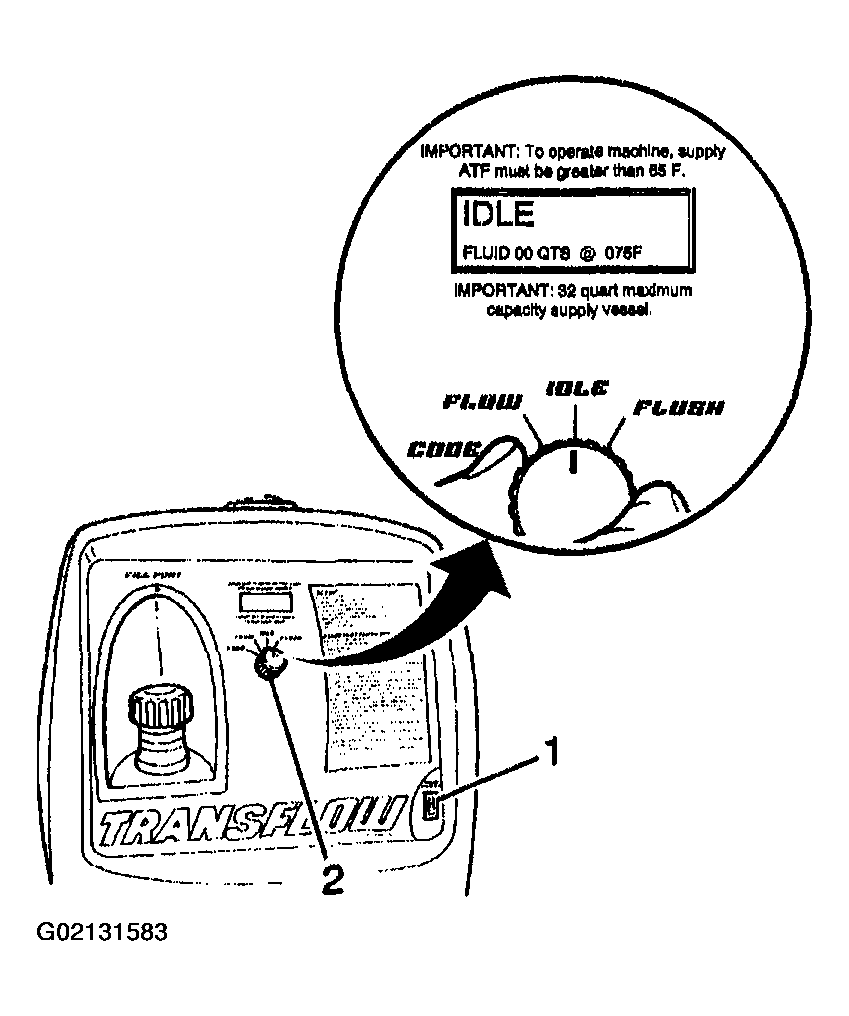

Fig 1: Turning Main Function Switch To IDLE Position

Courtesy of GENERAL MOTORS CORP.

Turn the main function switch to the IDLE position and allow the supply vessel pressure to dissipate.
Turn the main power switch to the OFF position.
Disconnect the supply and waste hoses and the 12-volt power source from the vehicle.
NOTE: A small amount of water may drain from the bottom of the unit when the air supply is disconnected. This is a normal operation of the built-in water separator.

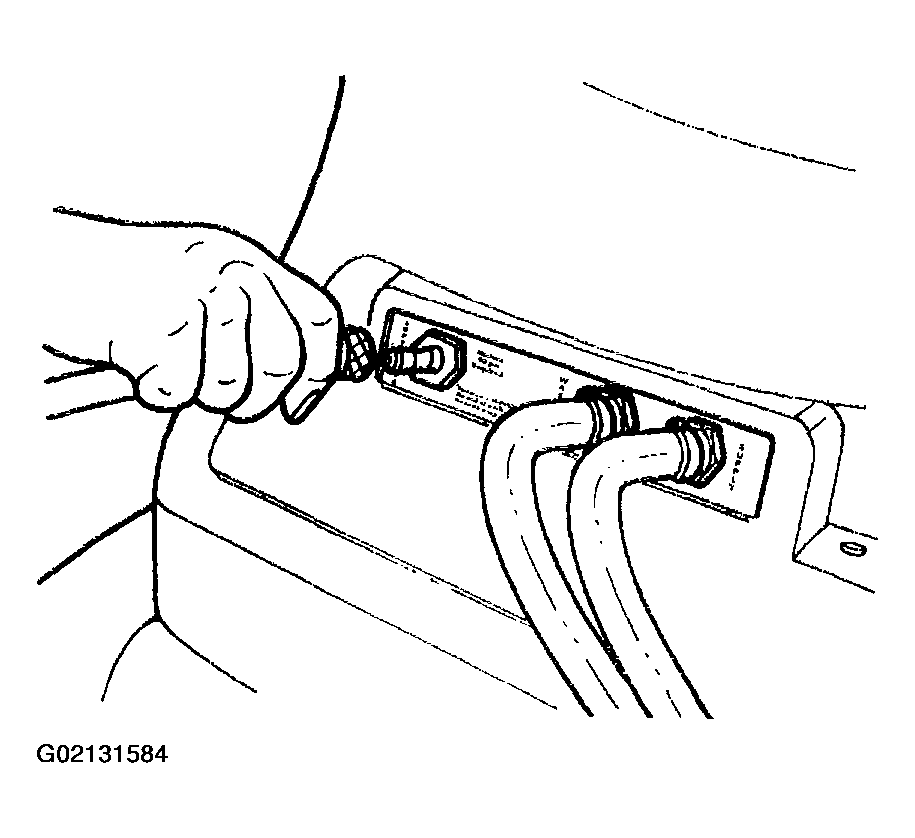

Fig 2: Disconnecting Air Supply Hose From J 45096
Courtesy of GENERAL MOTORS CORP.
Disconnect the air supply hose from J 45096 .
Dispose of the waste ATF in accordance with all applicable federal, state, and local requirements.
