Transmission Identification Information

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Transmission ID & VIN Derivative Location (Toledo or Romulus Build)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Transmission ID & VIN Derivative Location (Ramos Arizpe, Mexico)

Courtesy of GENERAL MOTORS CORP.

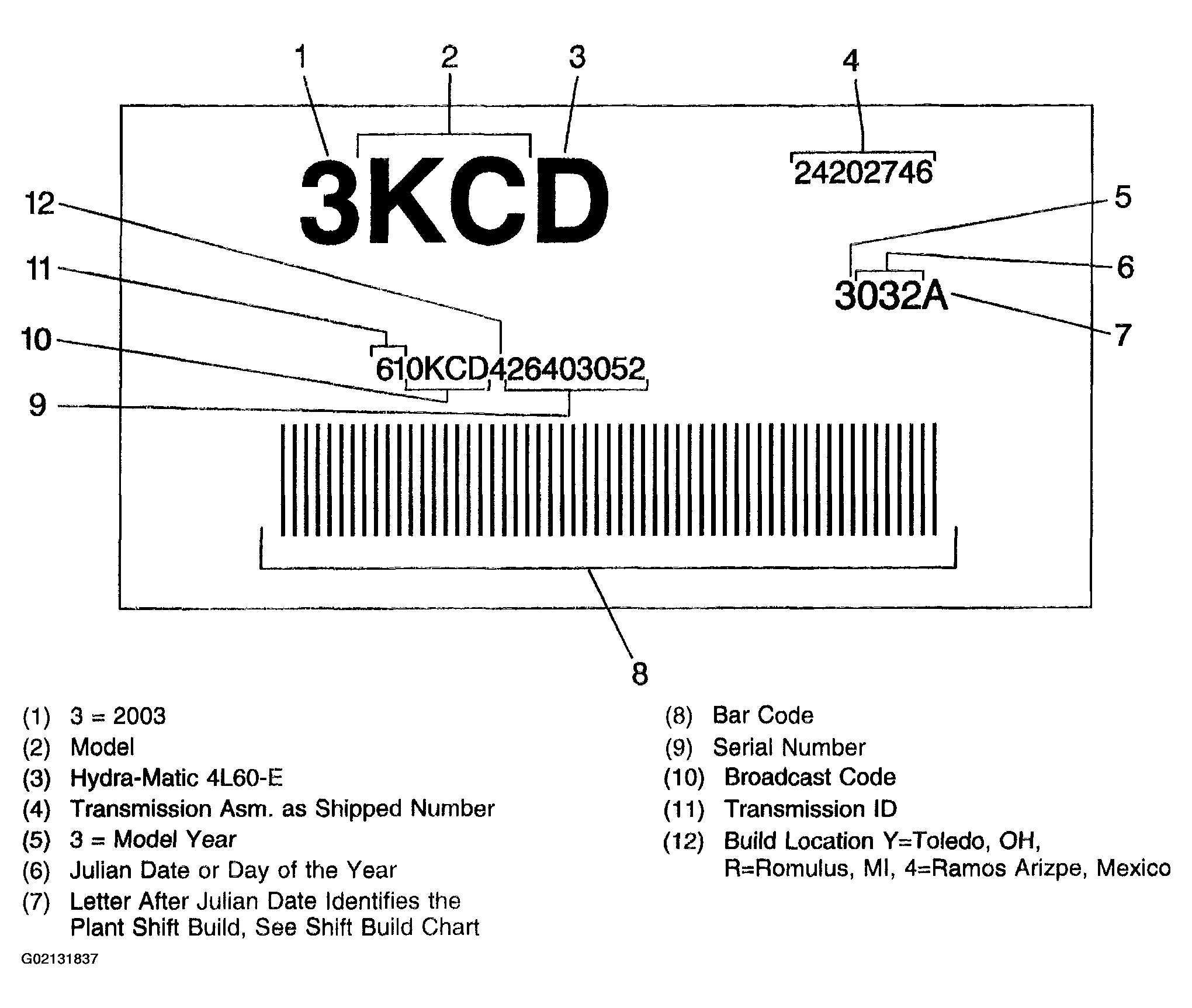

Fig 3: Bar Code Label Contents

Courtesy of GENERAL MOTORS CORP.

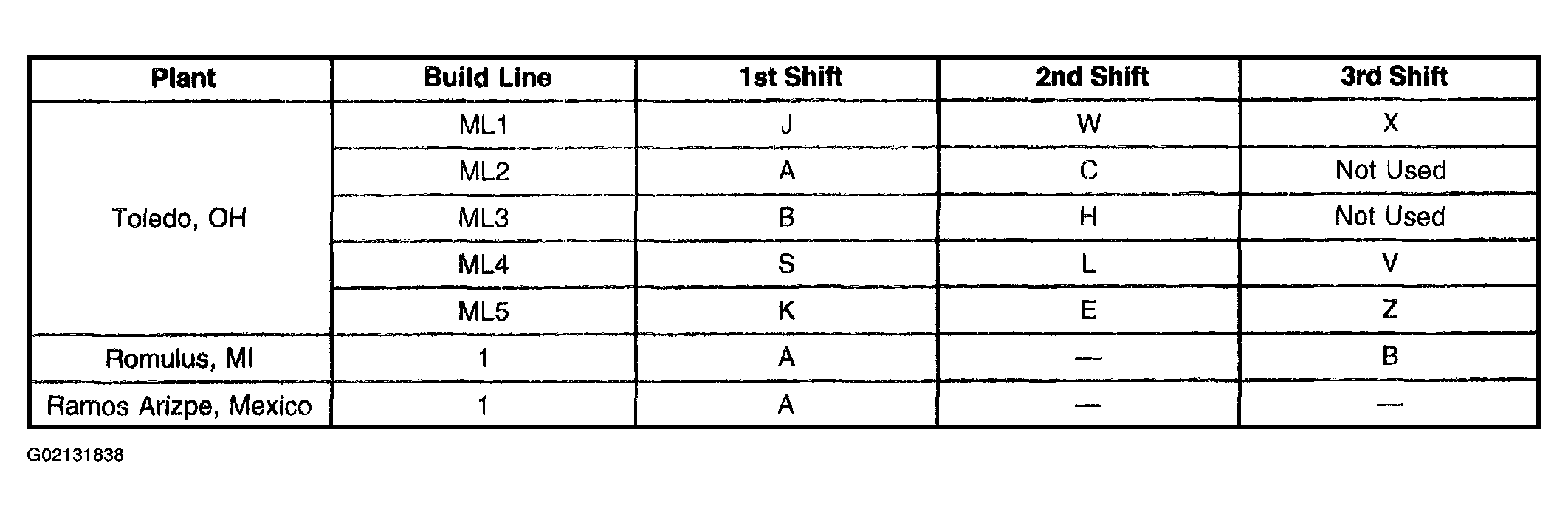

Fig 4: Plant & Shift Build Chart

Courtesy of GENERAL MOTORS CORP.
