Component Location

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

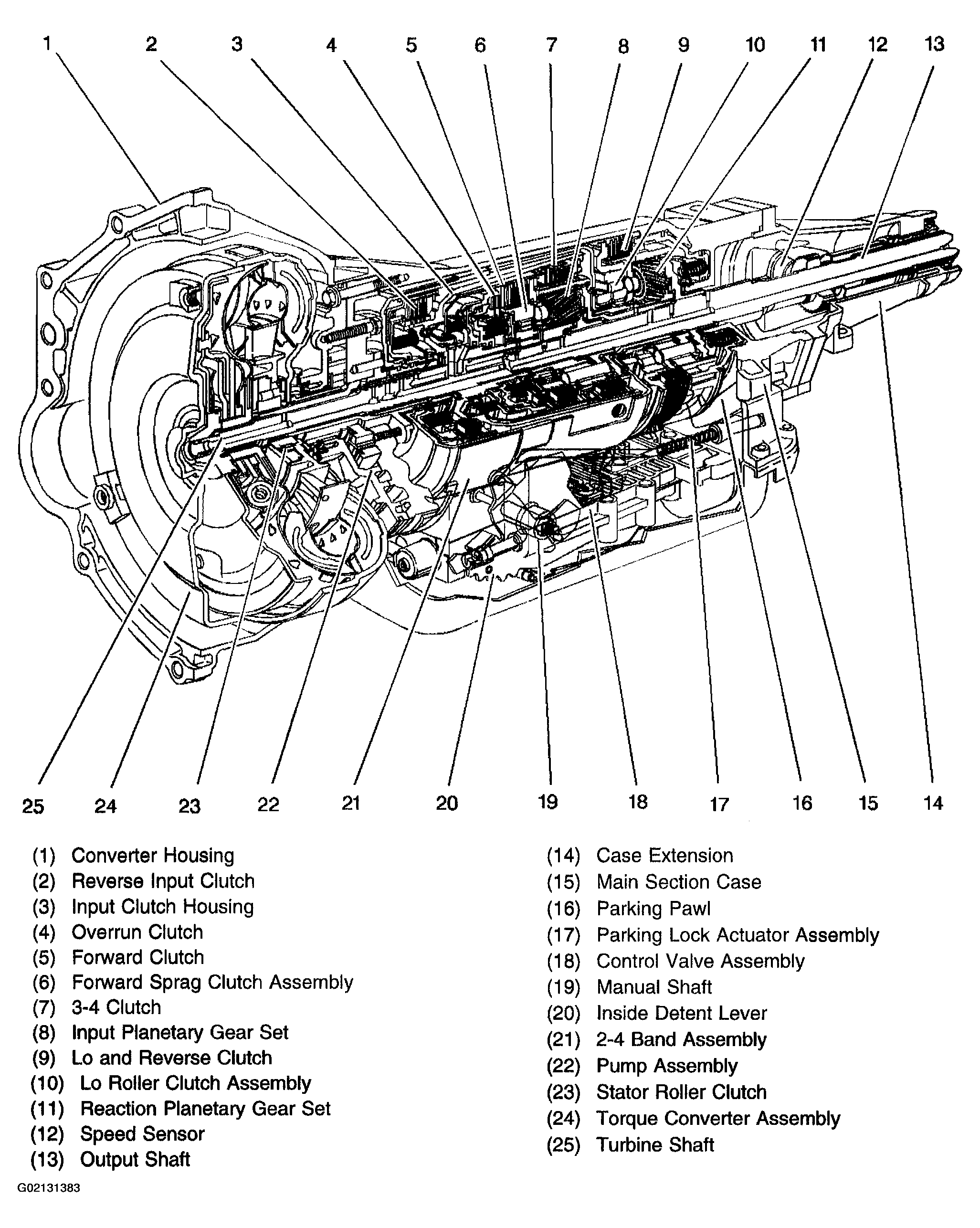

Fig 1: Components Location

Courtesy of GENERAL MOTORS CORP.

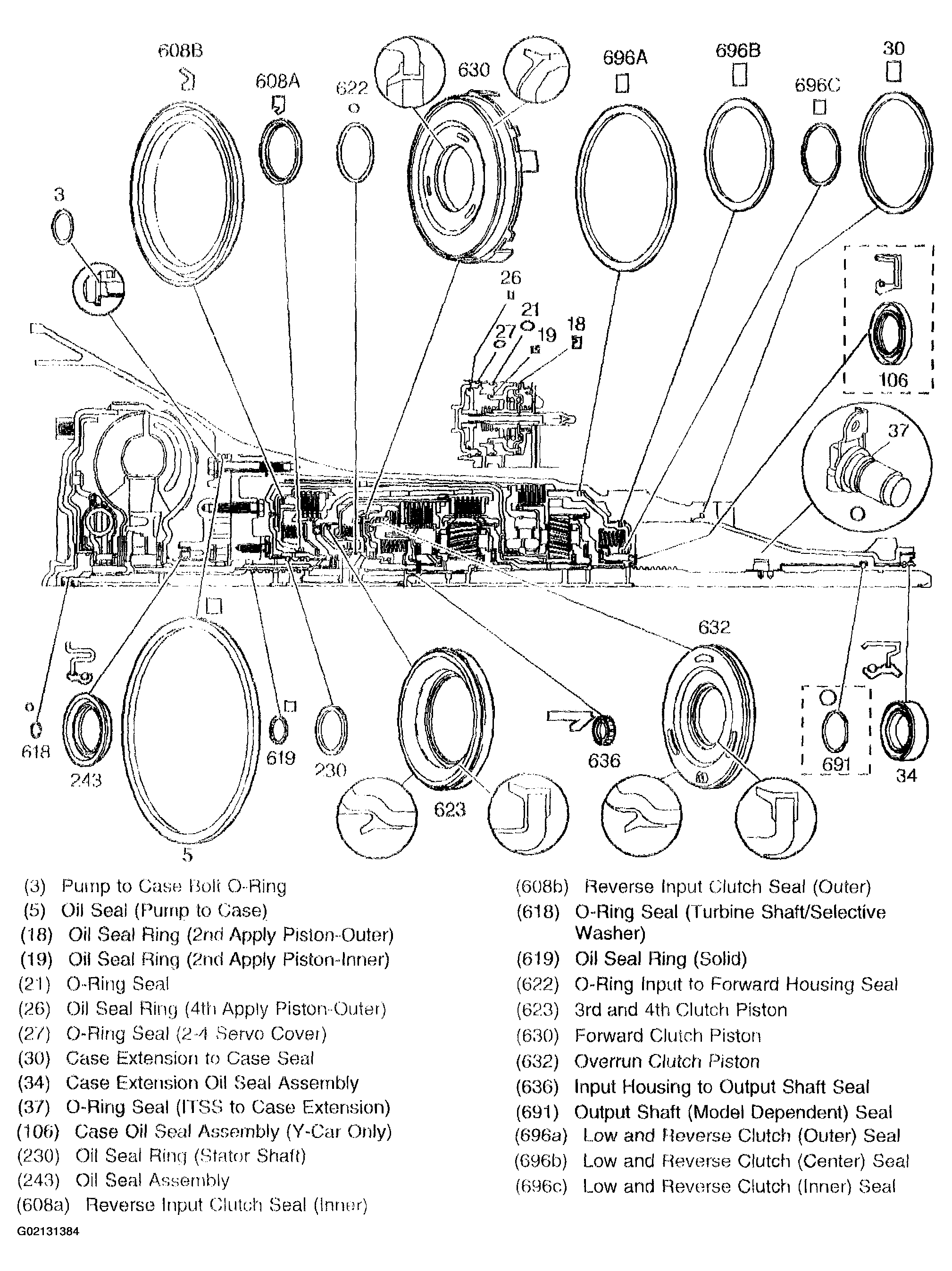

Fig 2: Seals Location

Courtesy of GENERAL MOTORS CORP.

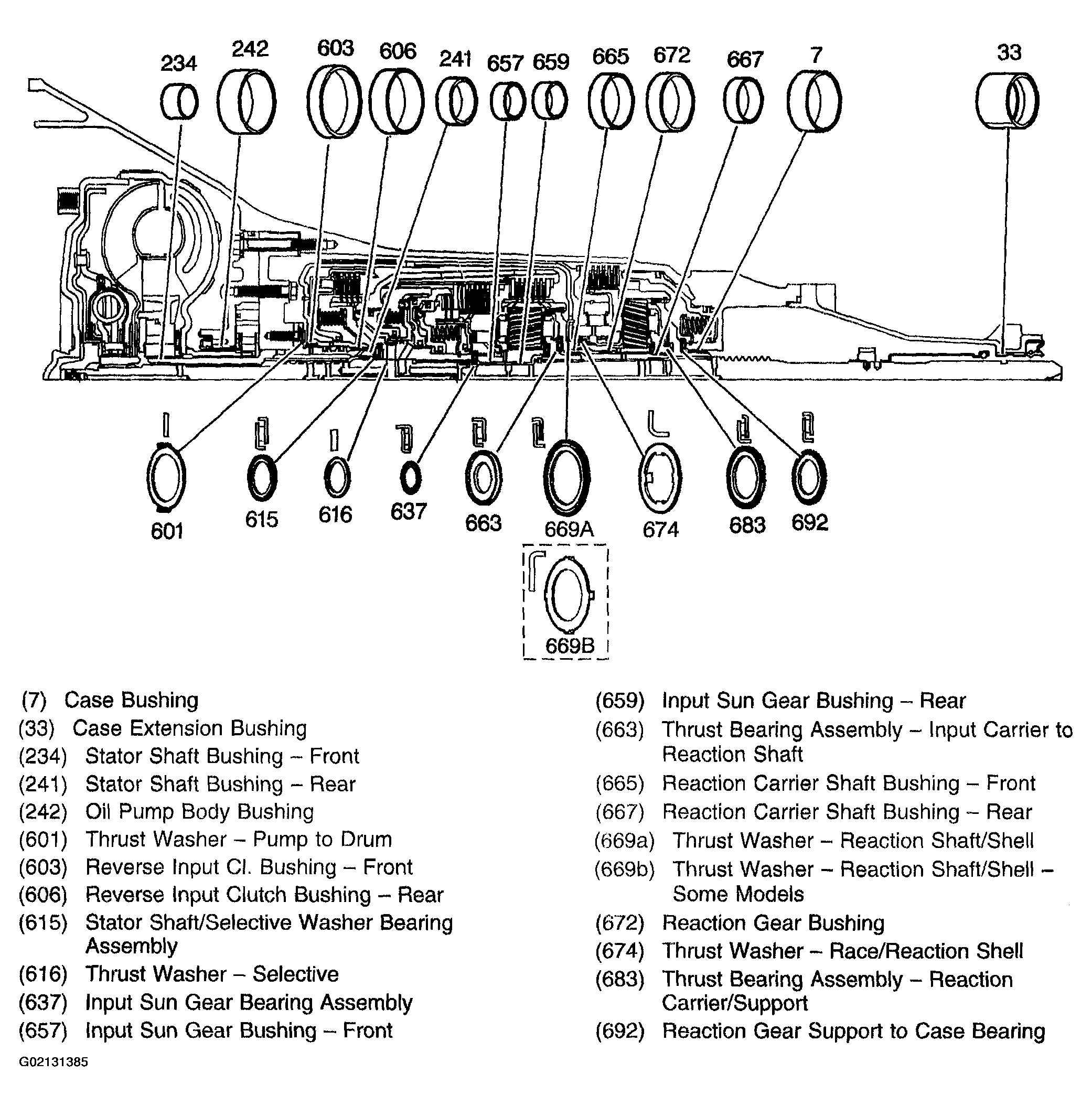

Fig 3: Bearings & Bushings Location

Courtesy of GENERAL MOTORS CORP.

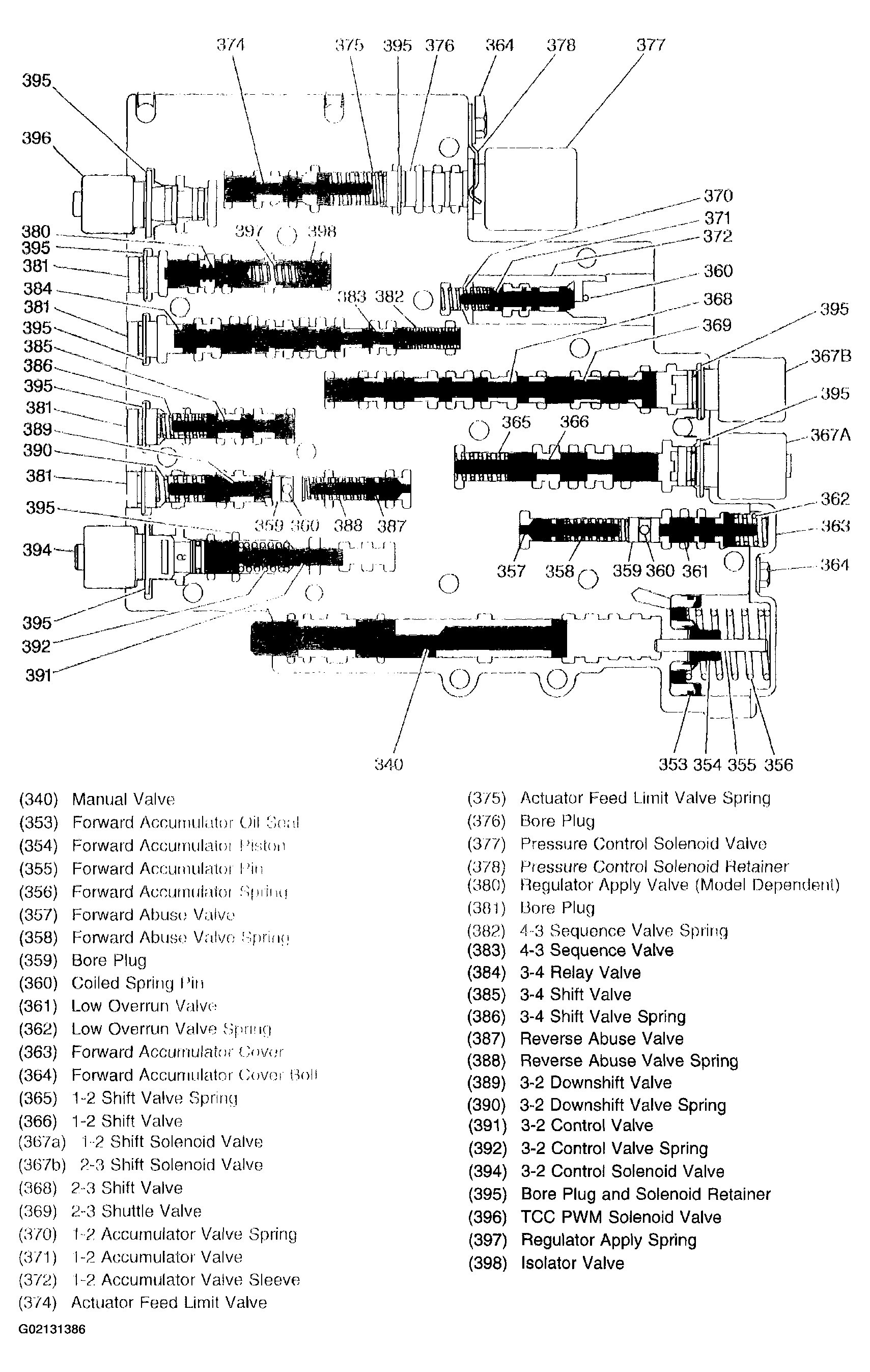

Fig 4: Valve Trains Location

Courtesy of GENERAL MOTORS CORP.
