Automatic Transmission Related Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

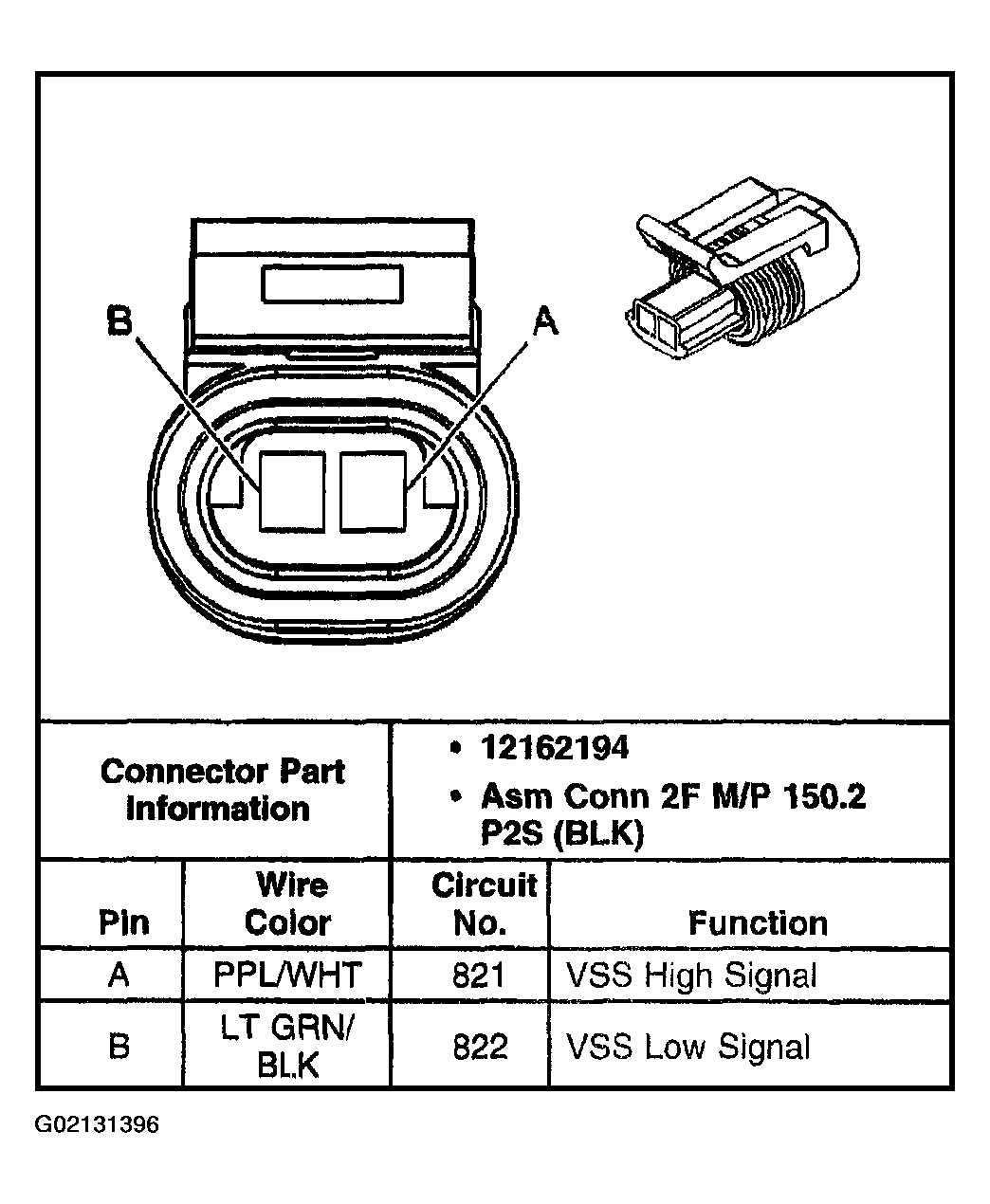

Fig 1: Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side
G02131396Courtesy of GENERAL MOTORS CORP.

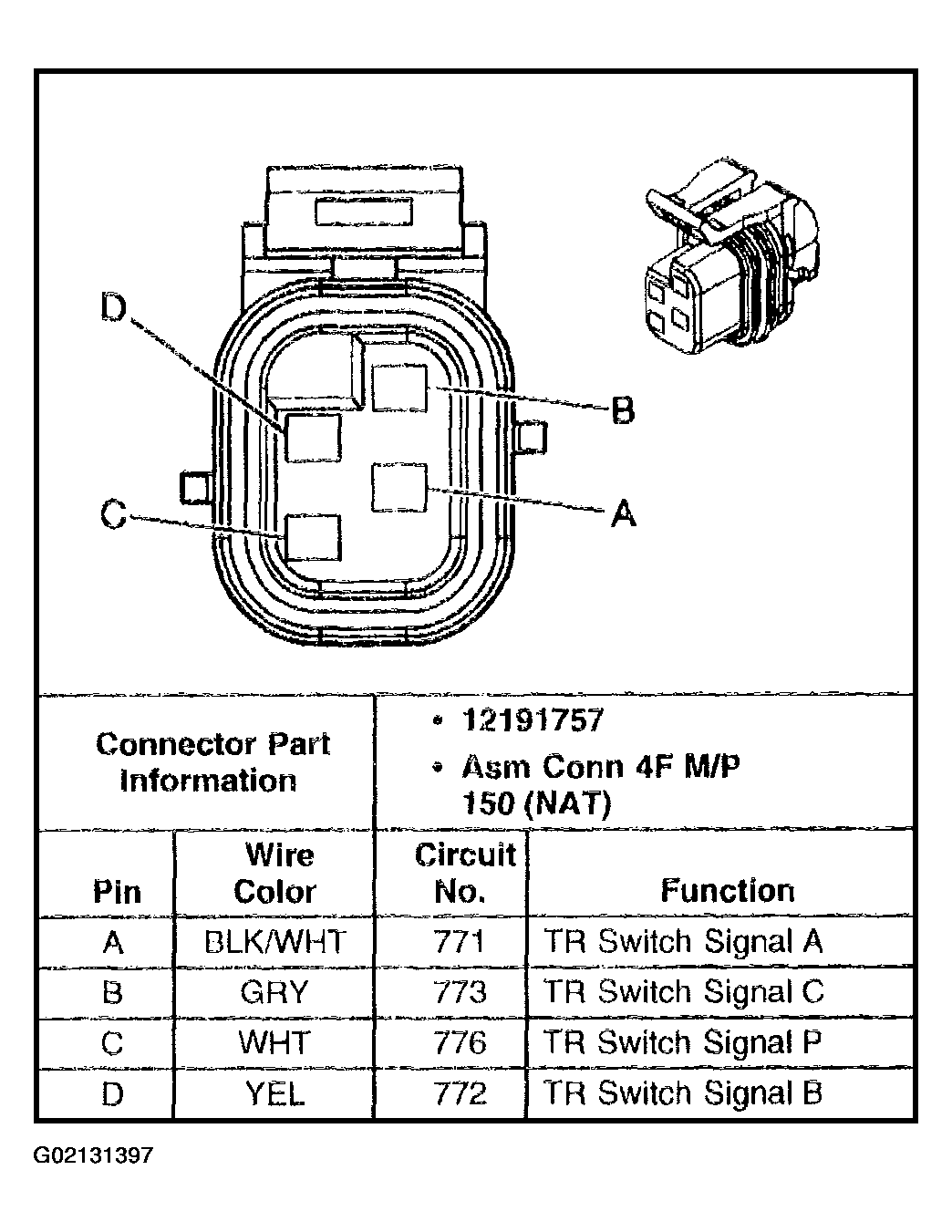

Fig 2: Transmission Range Switch Connector End View, Wiring Harness Side
G02131397Courtesy of GENERAL MOTORS CORP.

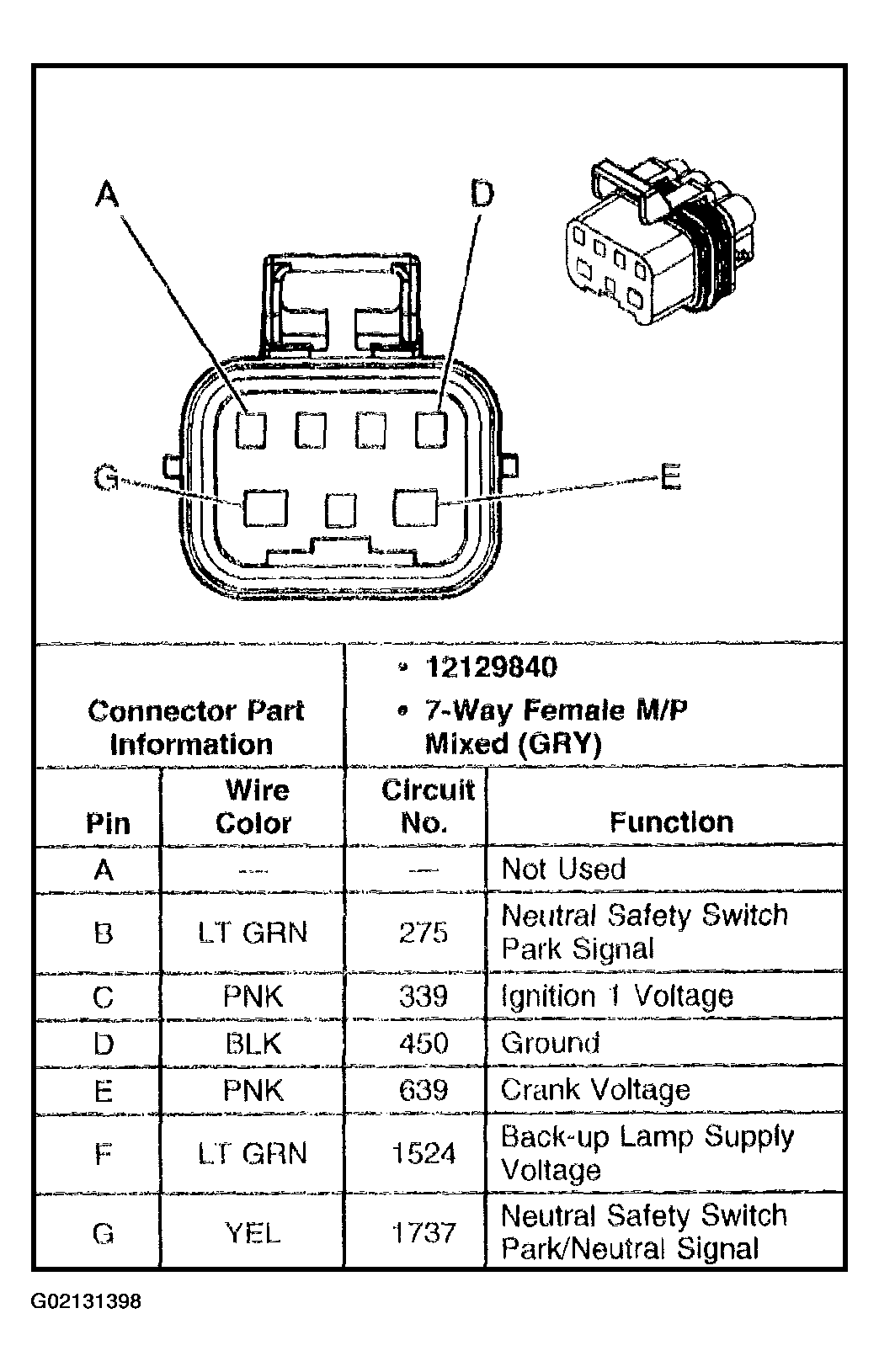

Fig 3: Park/Neutral Position Switch (C2) Connector End View
G02131398Courtesy of GENERAL MOTORS CORP.
