Automatic Transmission Inline 20-Way Connector End View

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

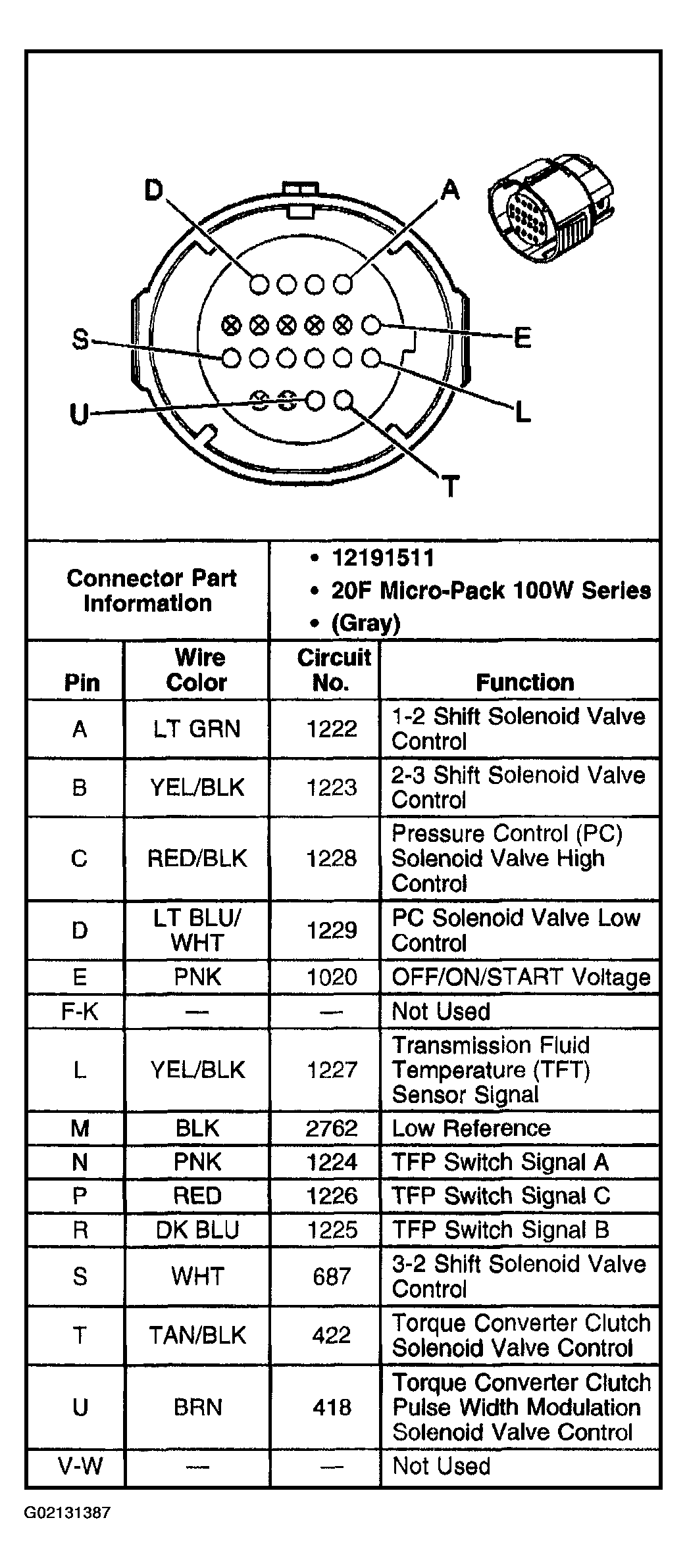

Fig 1: AT Inline 20-Way Connector End View, Engine Side
G02131387Courtesy of GENERAL MOTORS CORP.

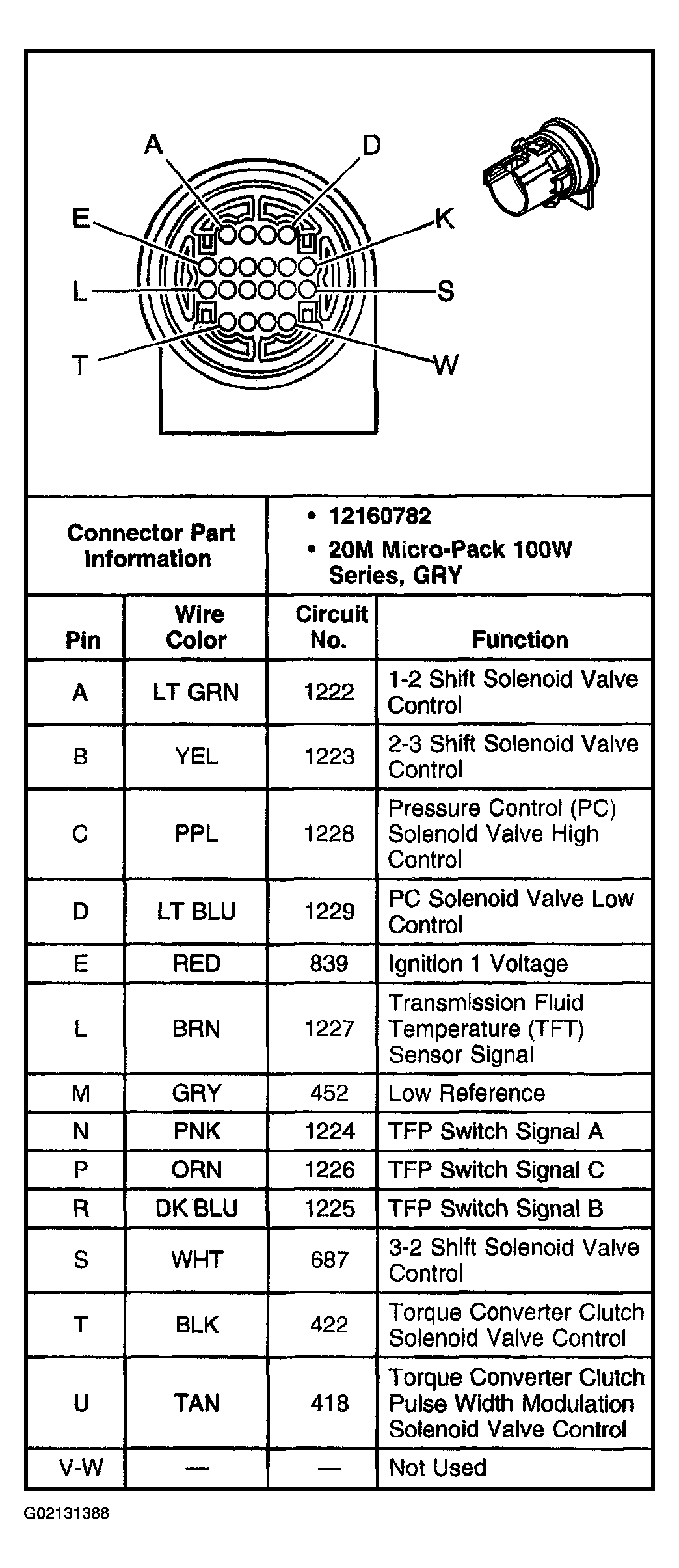

Fig 2: AT Inline 20-Way Connector End View, Transmission Side
G02131388Courtesy of GENERAL MOTORS CORP.
