Automatic Transmission Electronic Component Views

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

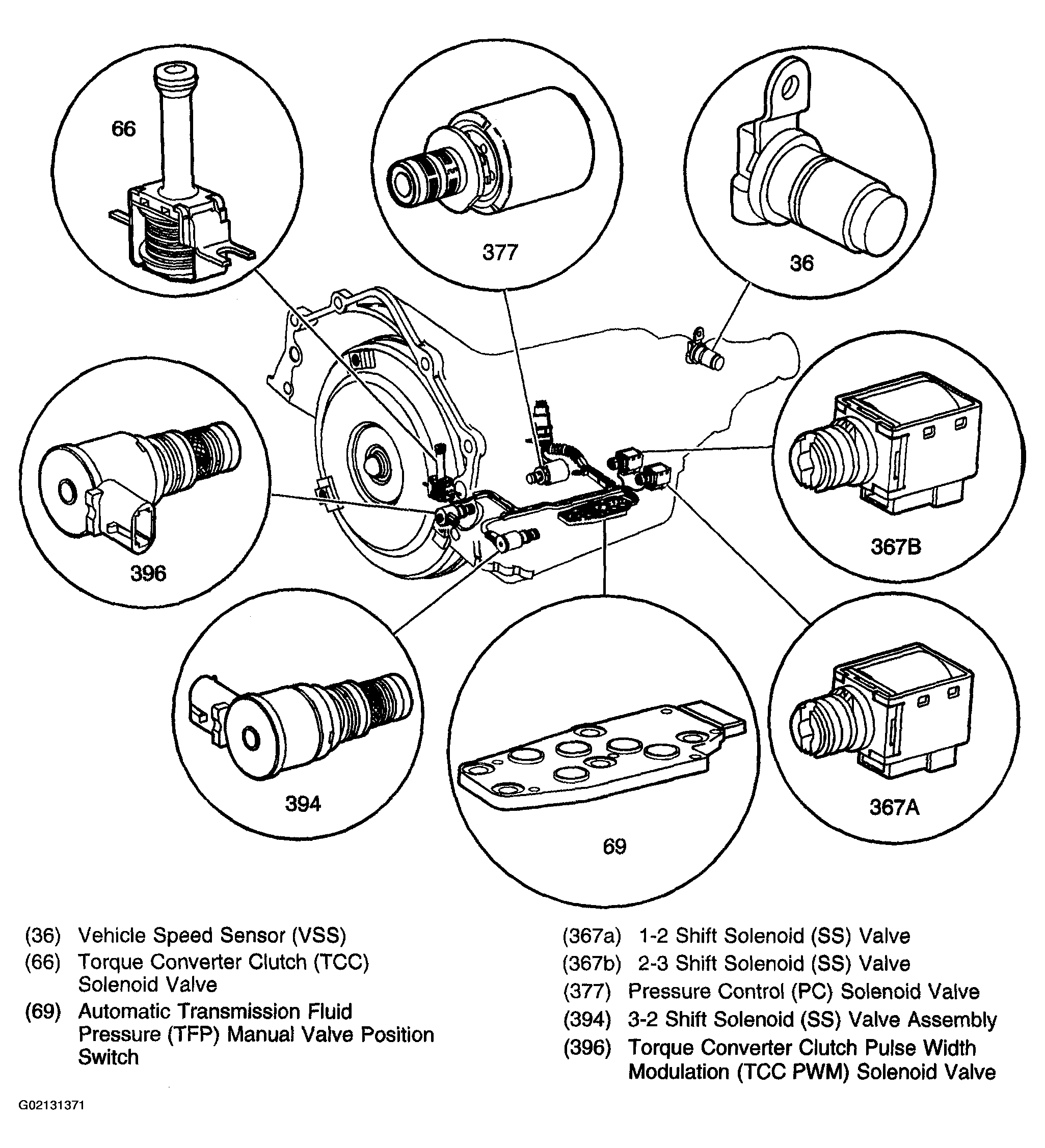

Fig 1: Electronic Components View
G02131371Courtesy of GENERAL MOTORS CORP.

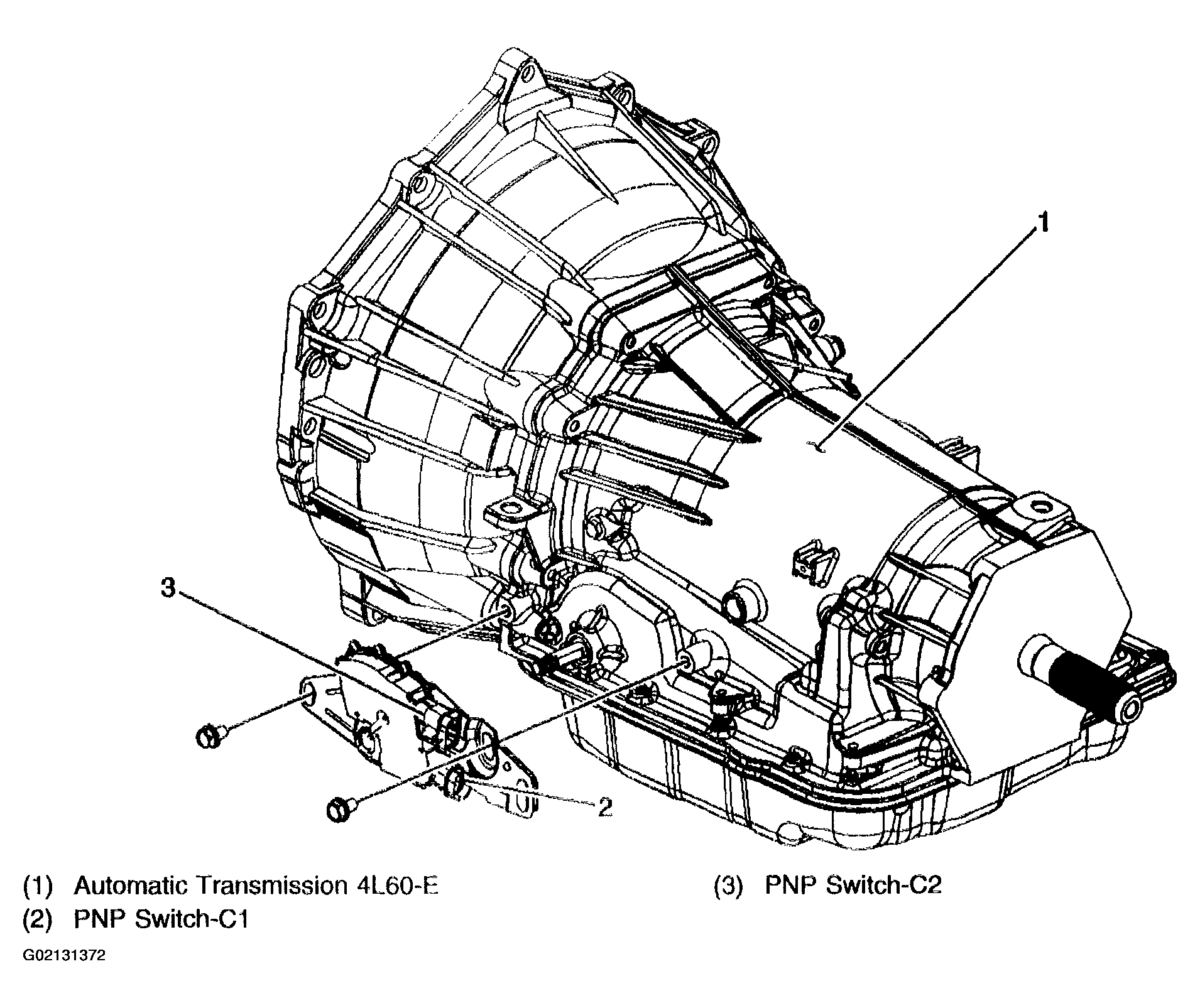

Fig 2: Park Neutral Position (PNP) Switch Component View
G02131372Courtesy of GENERAL MOTORS CORP.

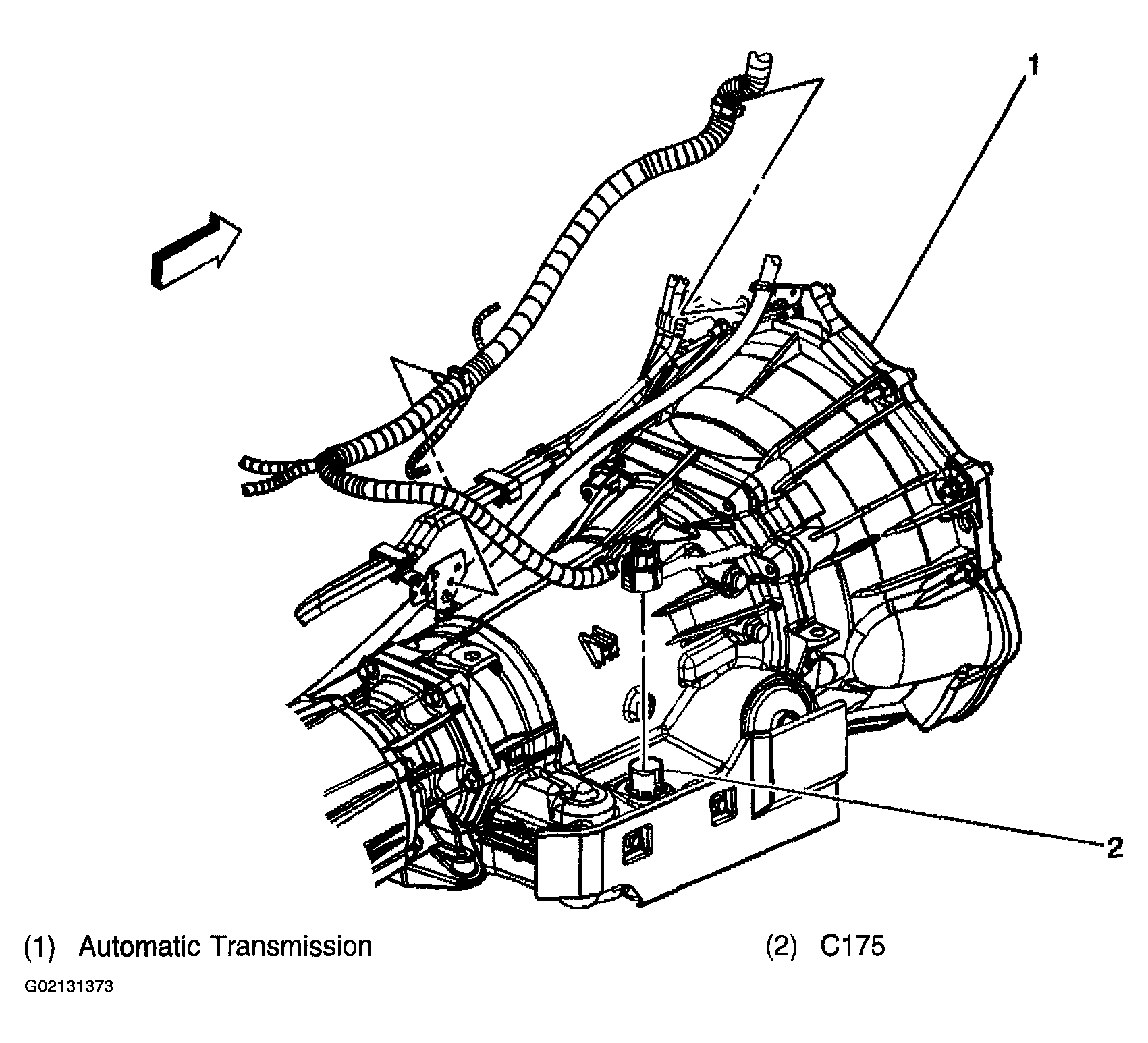

Fig 3: C175 Component View
G02131373Courtesy of GENERAL MOTORS CORP.

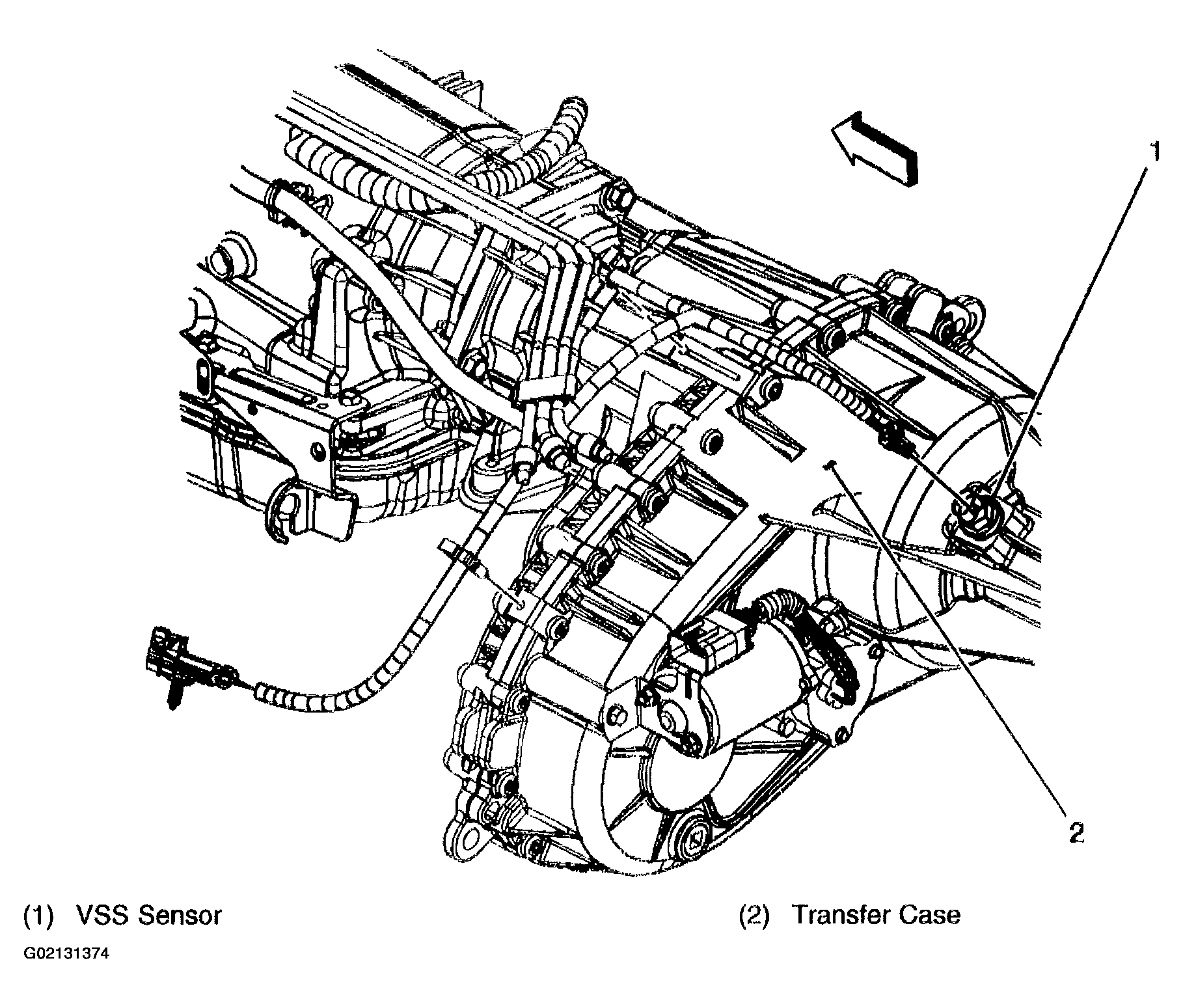

Fig 4: Vehicle Speed Sensor (VSS) Component View
G02131374Courtesy of GENERAL MOTORS CORP.
