Schematic and Routing Diagram

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

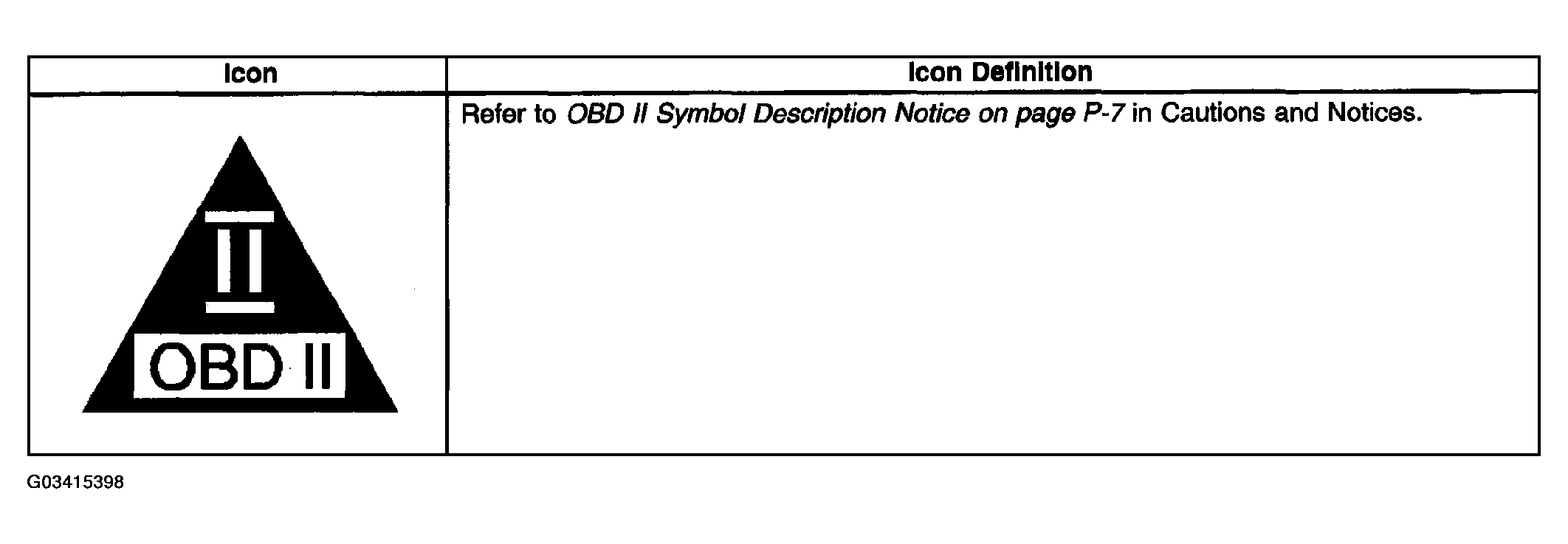

Fig 1: Automatic Transmission Schematic Icons

Courtesy of GENERAL MOTORS CORP.

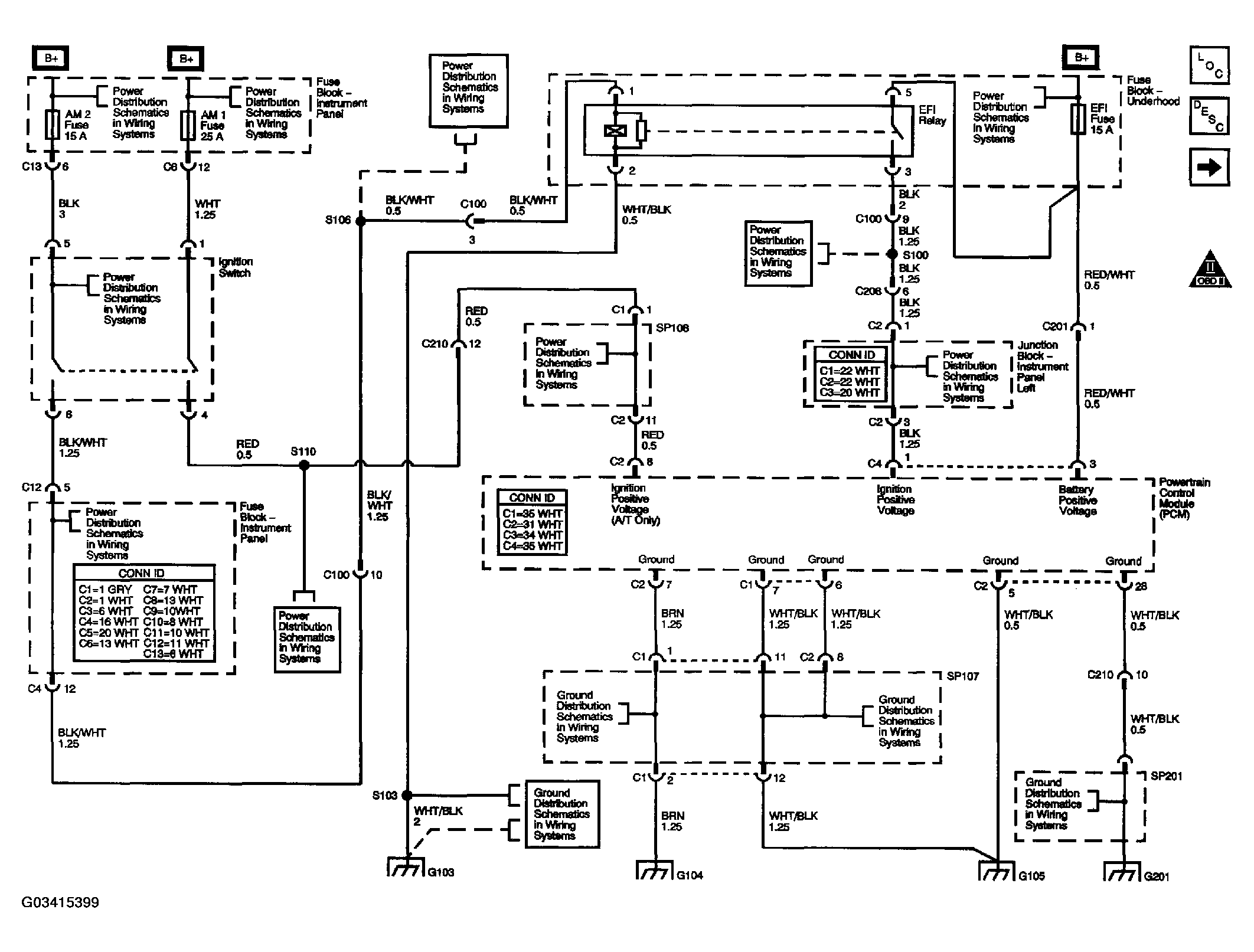

Fig 2: Automatic Transmission Controls Schematics (PCM Power & Ground)

Courtesy of GENERAL MOTORS CORP.

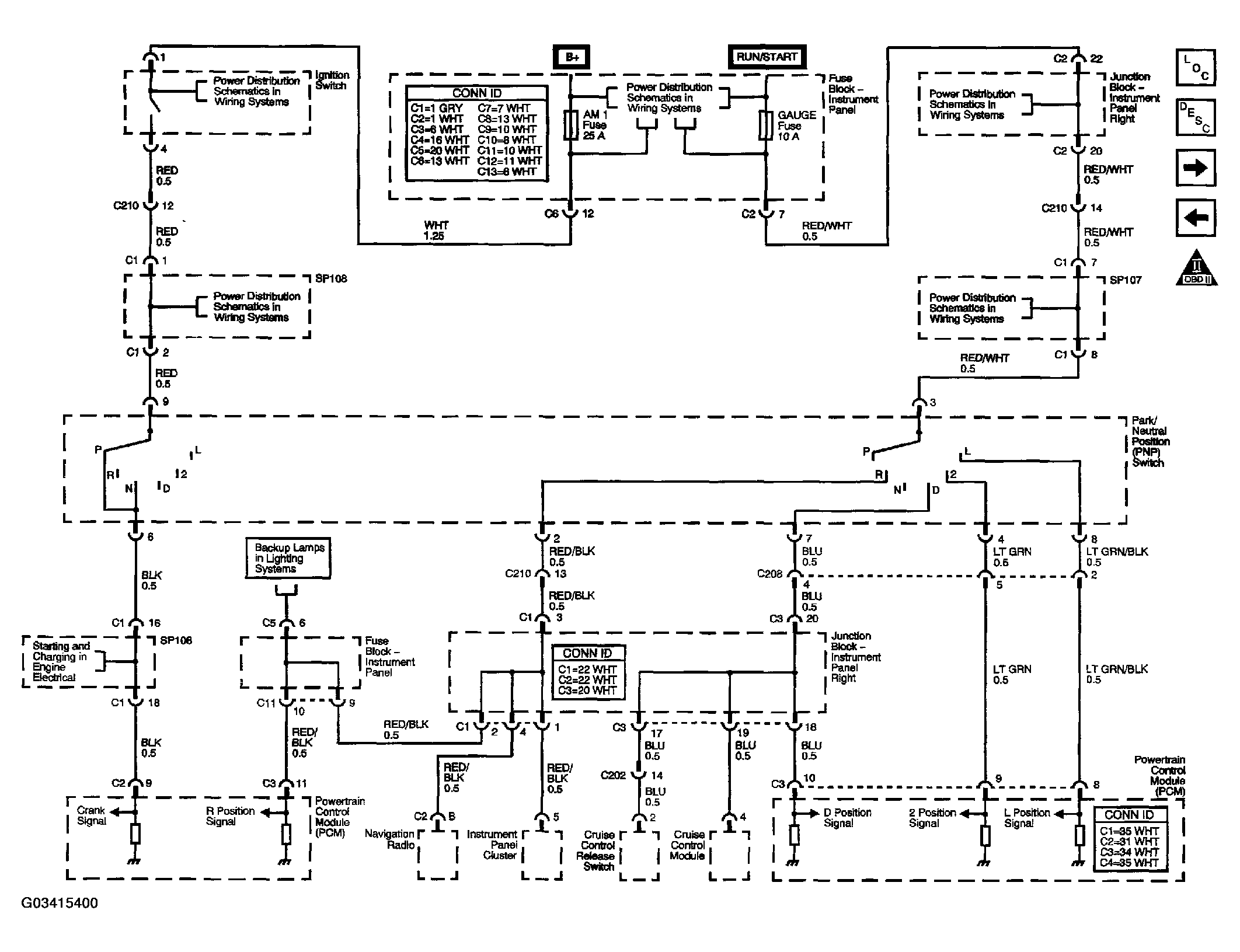

Fig 3: Automatic Transmission Controls Schematics (Park/Neutral Position (PNP) Switch)

Courtesy of GENERAL MOTORS CORP.

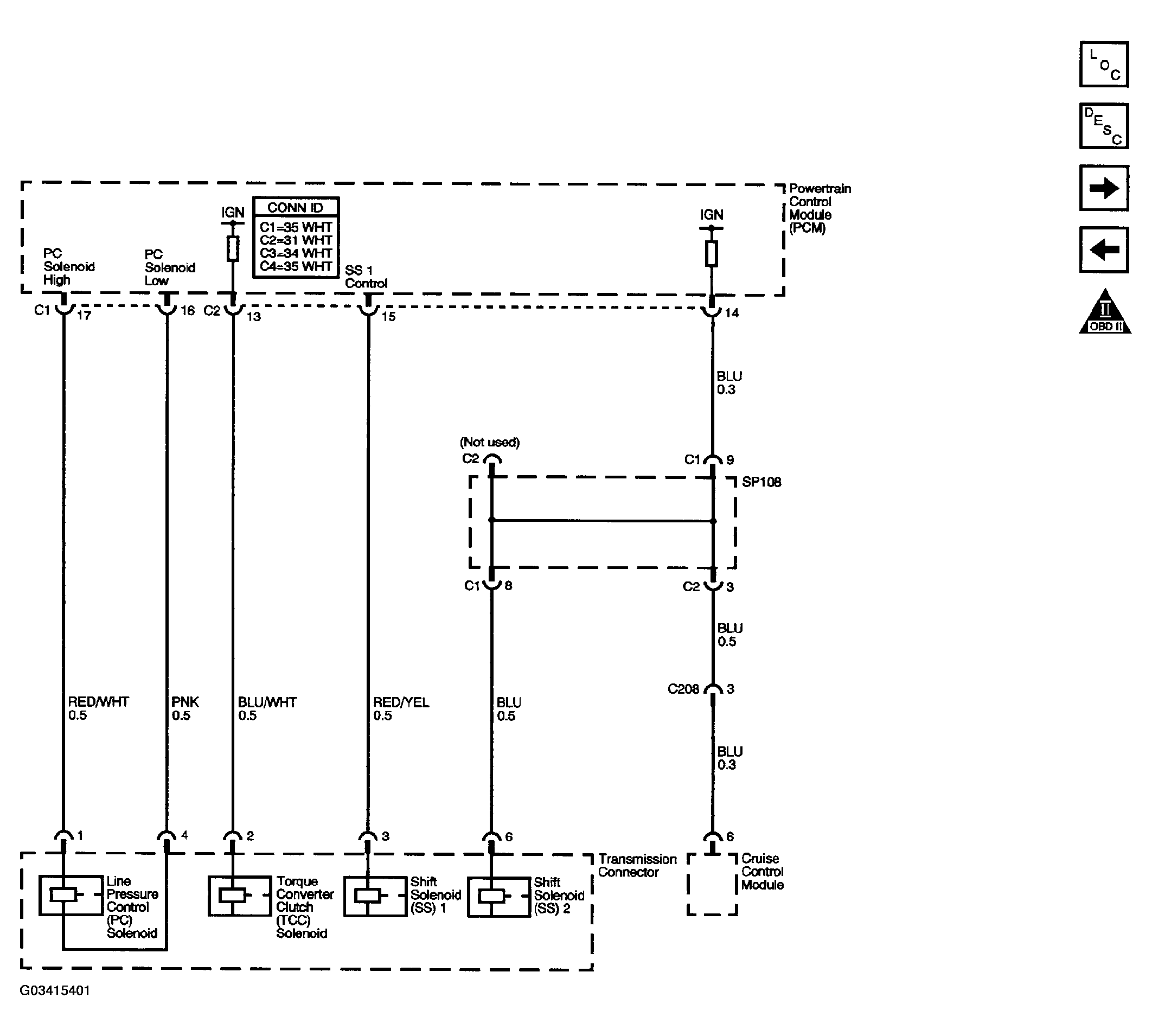

Fig 4: Automatic Transmission Controls Schematics (Transmission Connector)

Courtesy of GENERAL MOTORS CORP.

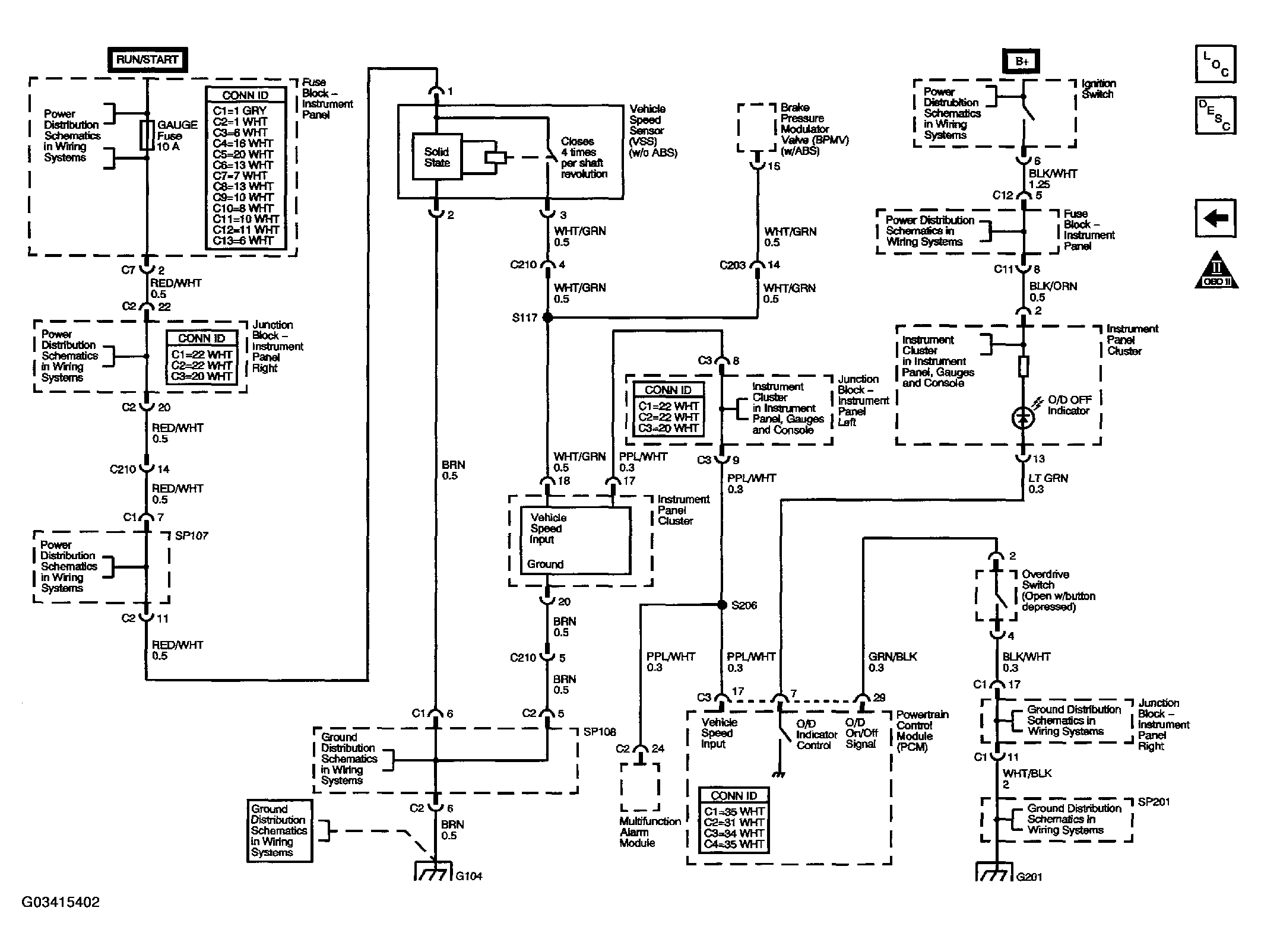

Fig 5: Automatic Transmission Controls Schematics (Vehicle Speed Sensor (VSS) & O/D Indicator)

Courtesy of GENERAL MOTORS CORP.
