Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
  2. Remove the 4 battery tray retaining bolts, then remove the battery tray from the vehicle.
  3. Remove the shift cable retaining clip.
  4. Disconnect the cable from the bracket.
  5. Remove the shift cable retaining nut, then disconnect the cable from the manual lever.

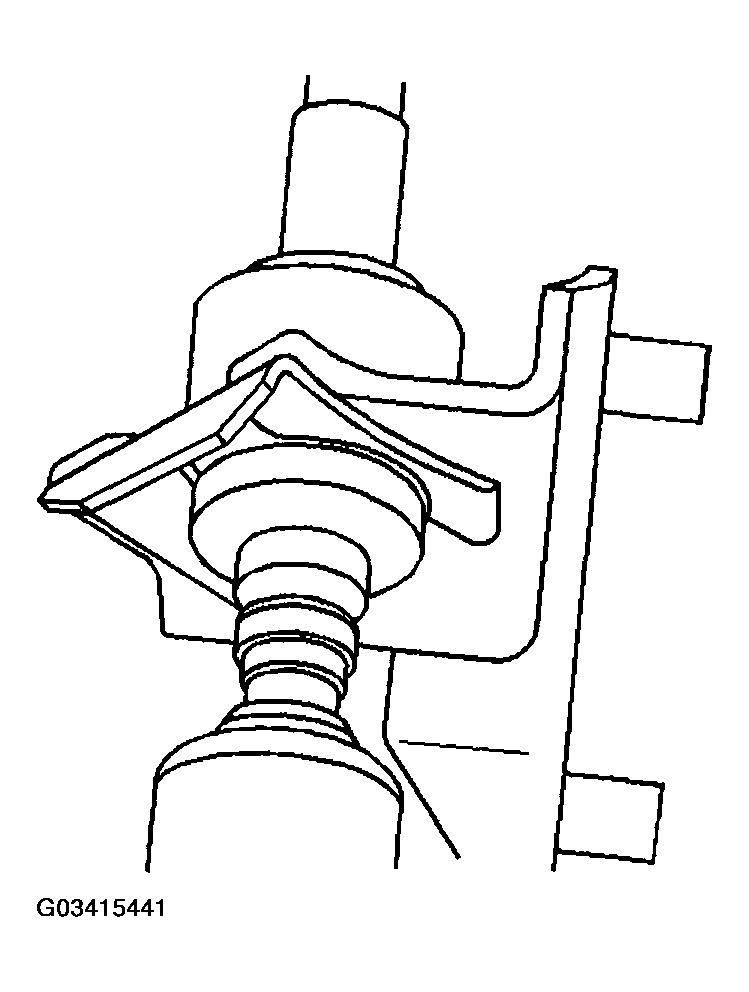

    Fig 1: Removing Shift Cable Retaining Clip
    G03415441Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the PNP switch electrical connector (1) from the PNP switch.

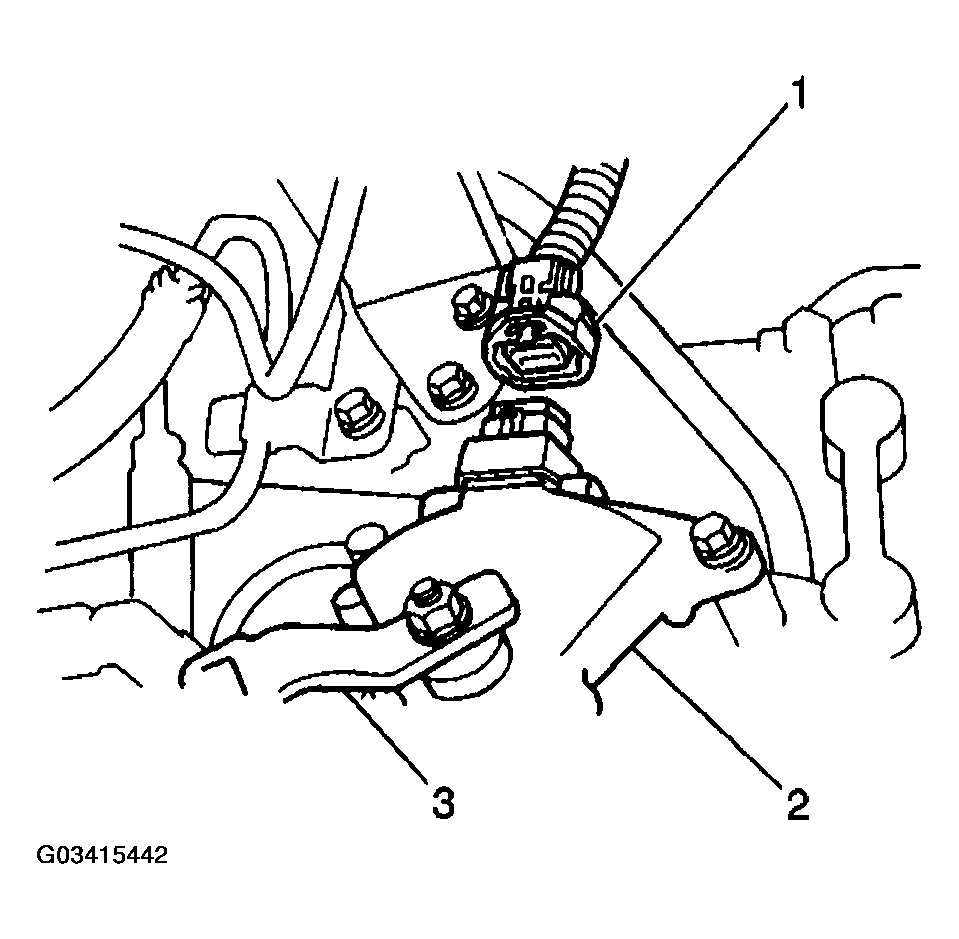

    Fig 2: Disconnecting PNP Switch Electrical Connector From PNP Switch
    G03415442Courtesy of GENERAL MOTORS CORP.
  7. Remove 1 nut, 1 lock washer and the manual lever from the manual shaft.
  8. Unstake the lock plate (1) behind the manual shaft nut (3).
  9. Remove the manual shaft nut and the lock plate from the PNP switch.
  10. Remove the 2 bolts and the PNP switch from the transaxle.

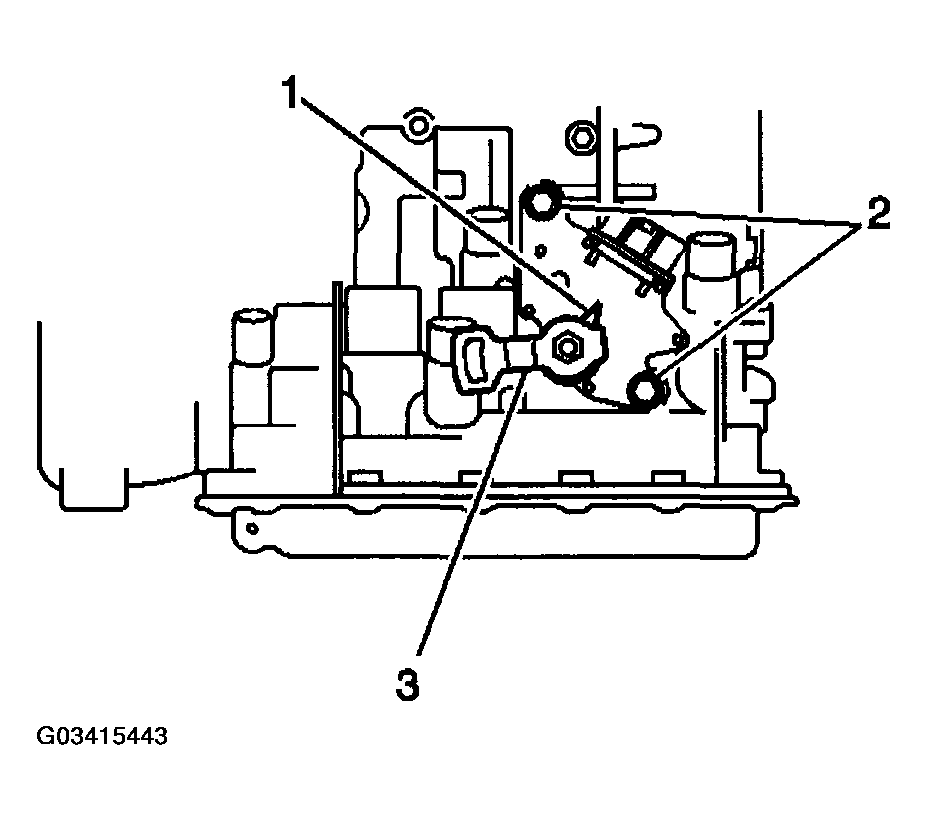

    Fig 3: Removing Lock Plate Behind Manual Shaft Nut
    G03415443Courtesy of GENERAL MOTORS CORP.
