Automatic Transmission External Component Connector End Views
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

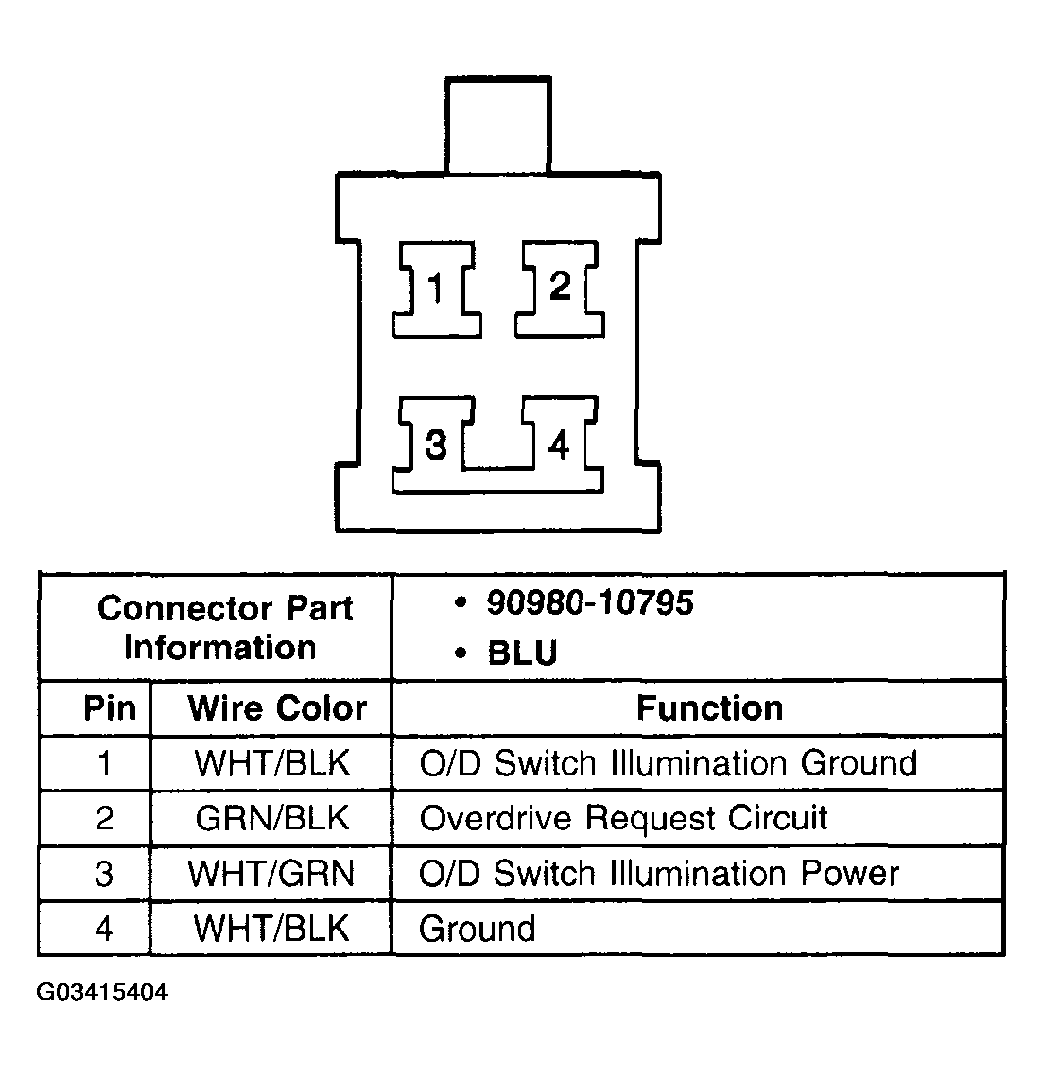

Fig 1: Identifying Terminals Of Overdrive Switch
Courtesy of GENERAL MOTORS CORP.

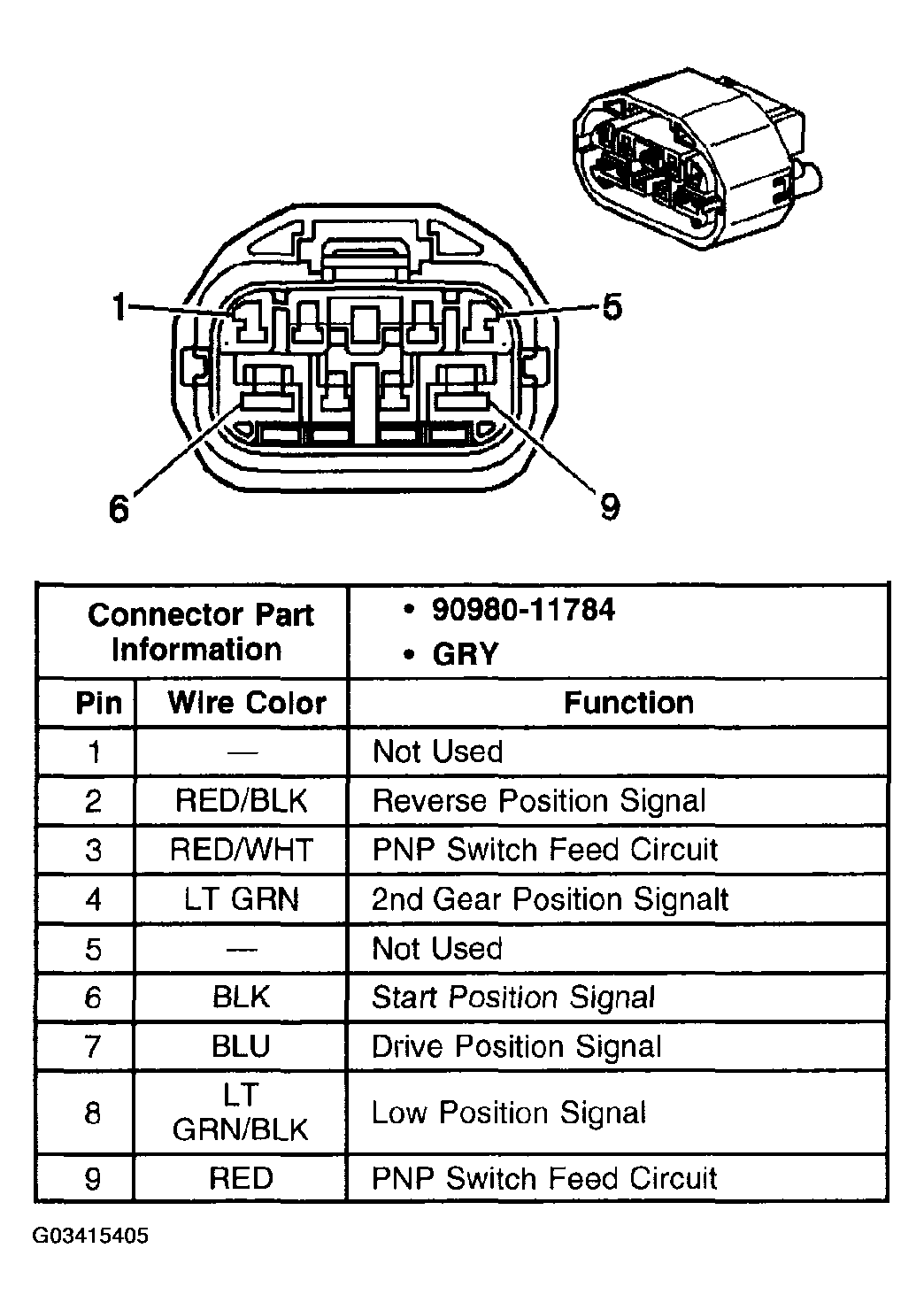

Fig 2: Identifying Terminals Of Park/Neutral Position (PNP) Switch
Courtesy of GENERAL MOTORS CORP.

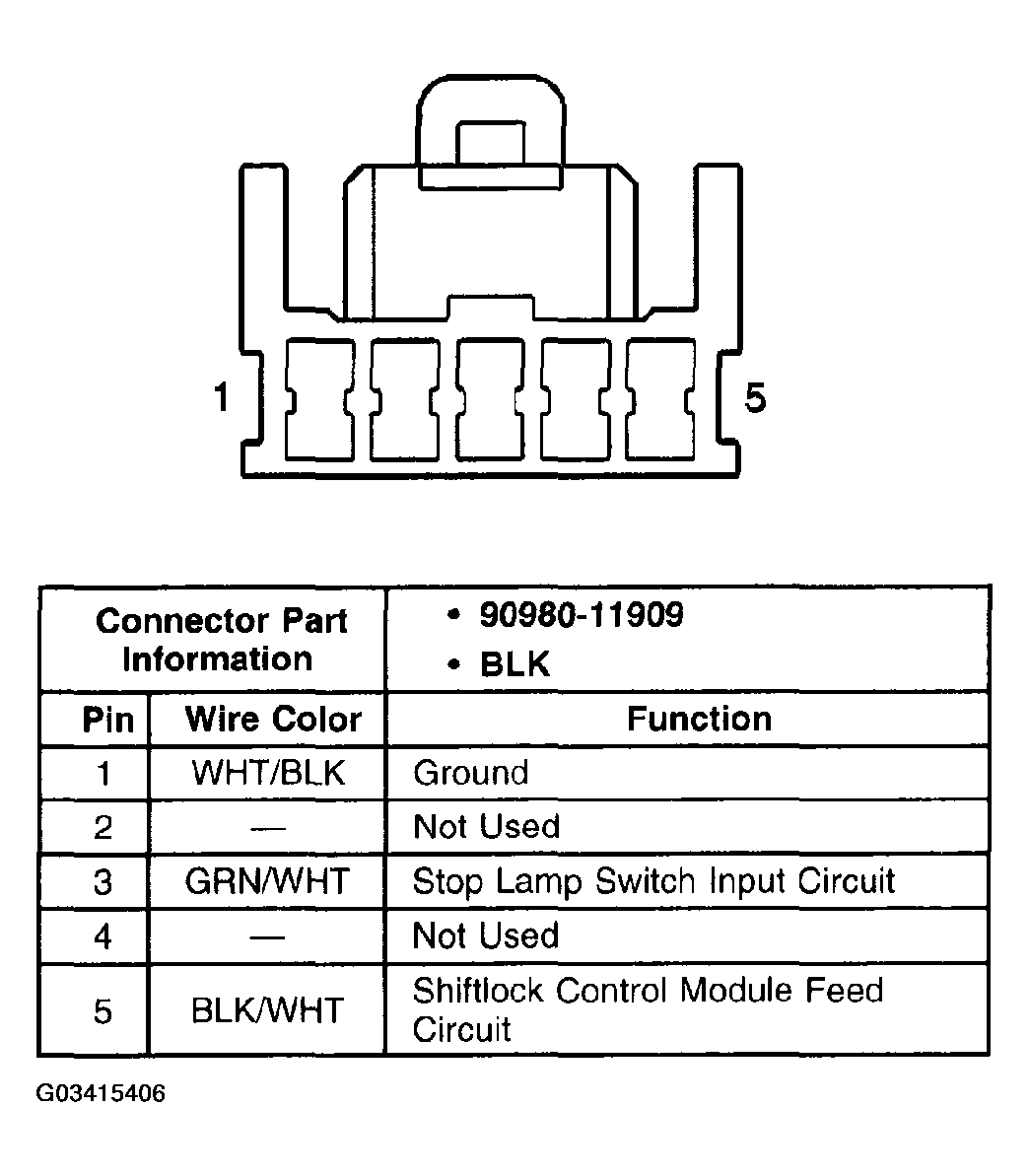

Fig 3: Identifying Terminals Of Shift Lock Control Module
Courtesy of GENERAL MOTORS CORP.

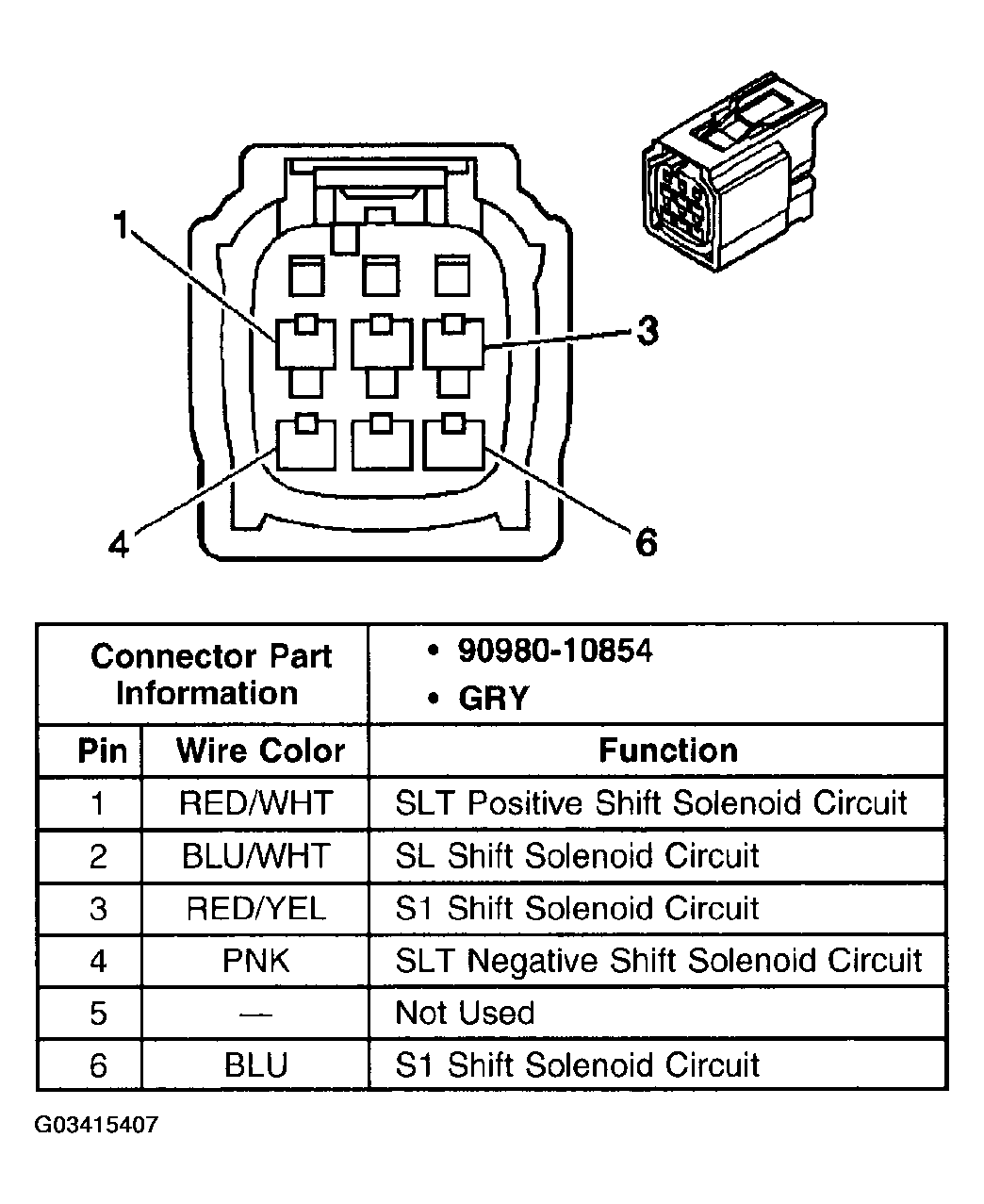

Fig 4: Identifying Terminals Of Transmission Connector
Courtesy of GENERAL MOTORS CORP.

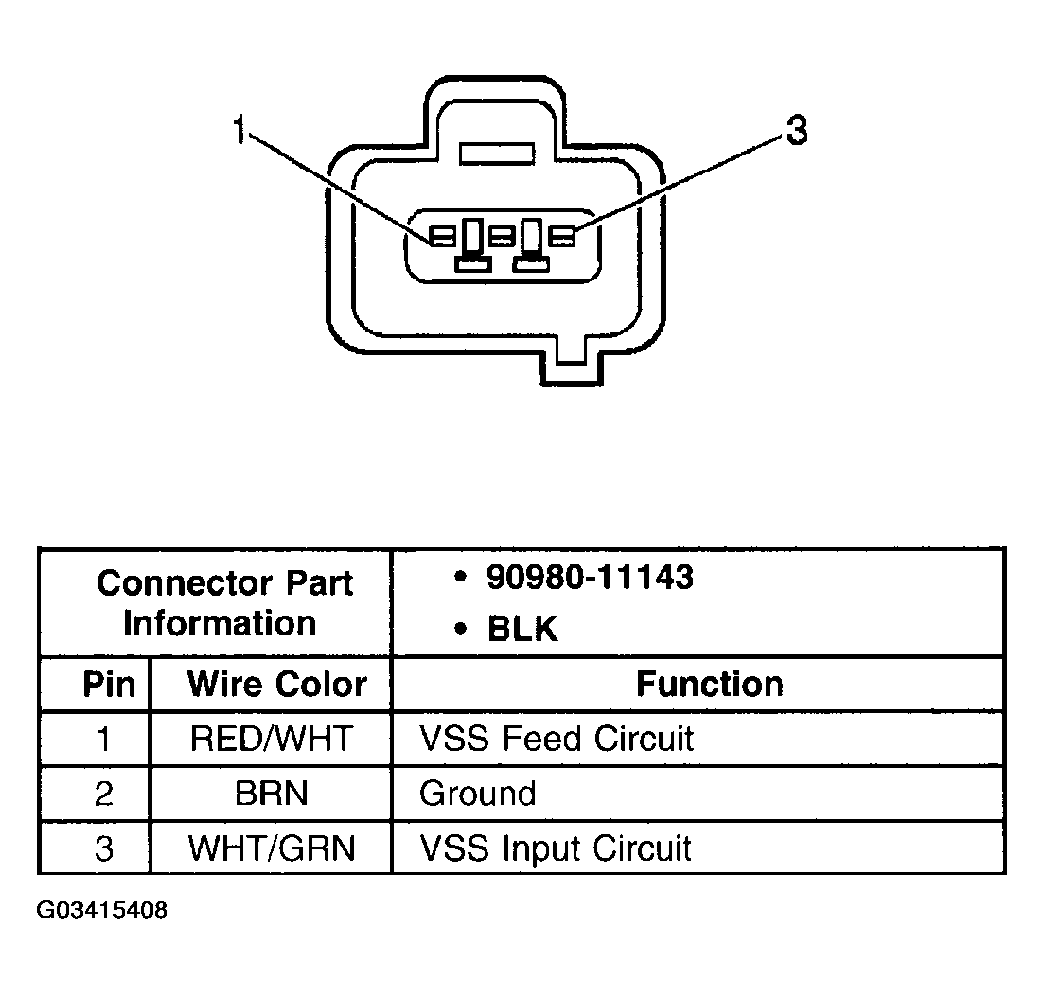

Fig 5: Identifying Terminals Of Vehicle Speed Sensor (VSS)
