Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery cable.
  2. Disconnect the vehicle speed sensor (VSS) electrical connector.
  3. Remove the 1 retaining bolt (1) and the VSS (2) from the transaxle.
  4. Inspect the VSS O-ring for cuts or damage. Replace as necessary.

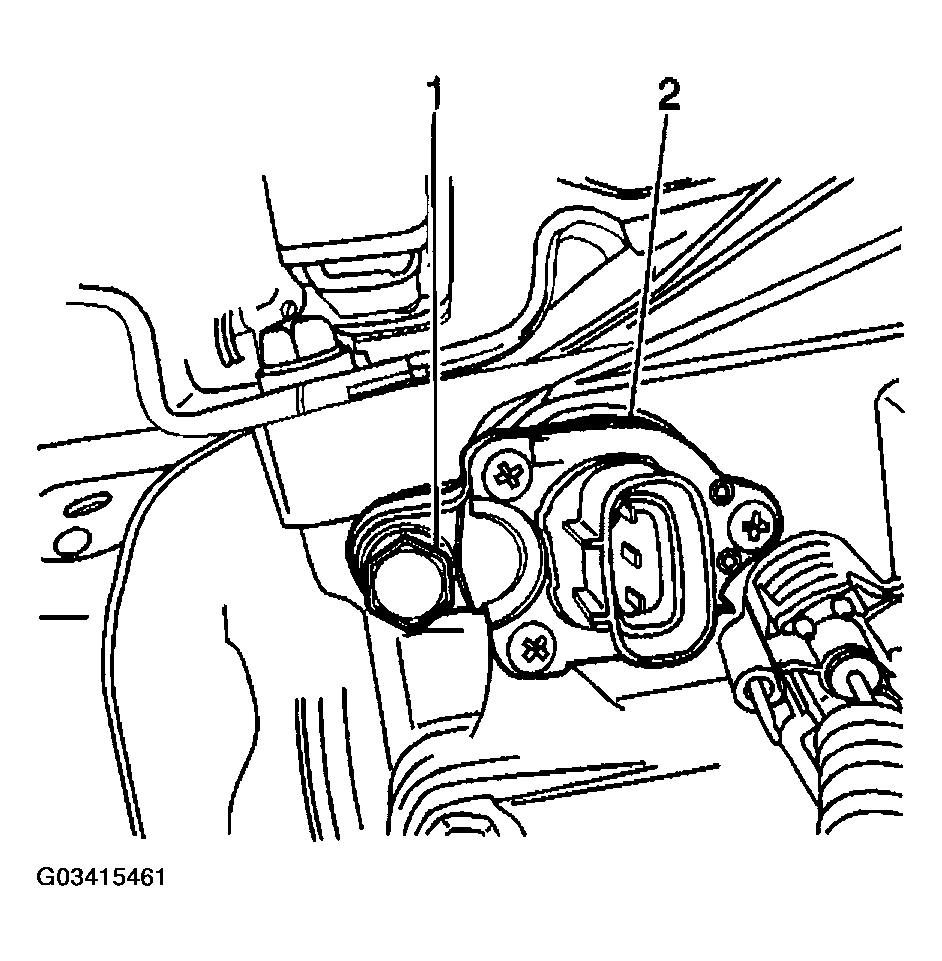

    Fig 1: Removing 1 Retaining Bolt And VSS From Transaxle
    G03415461Courtesy of GENERAL MOTORS CORP.
