Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to REMOVAL & INSTALLATION - A/T (FWD)
  2. Remove the torque converter (1) from transmission.
  3. Remove the following from the torque converter:
    1. 3.1 The torque converter seal bolts.
    2. 3.2 The torque converter seal.
  4. Remove the input shaft seal from input shaft.

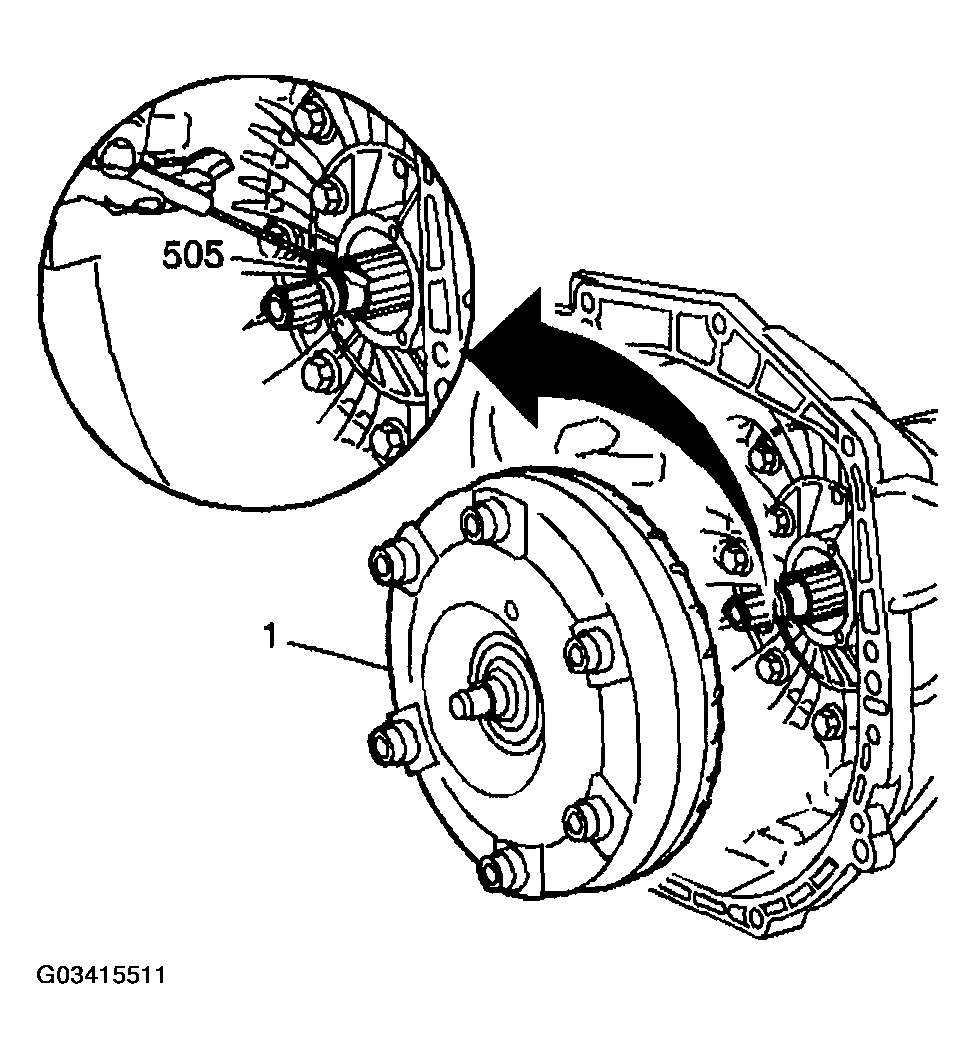

    Fig 1: Removing Input Shaft Seal From Input Shaft
    G03415511Courtesy of GENERAL MOTORS CORP.
