Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine support fixture to support the engine.
  2. Remove the rear mount through bolt.

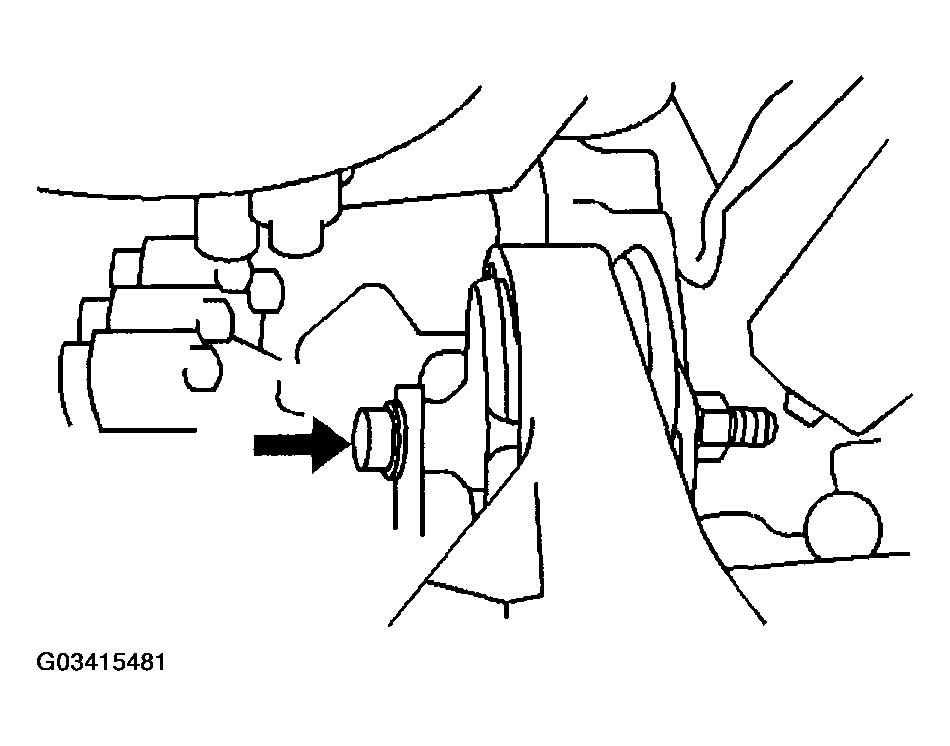

    Fig 1: Removing Rear Mount Through Bolt
    G03415481Courtesy of GENERAL MOTORS CORP.
  3. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  4. Remove the 3 nuts and 1 bolt securing the rear mount to the transmission support.
  5. Lower the vehicle.
  6. Remove the rear transaxle mount from the vehicle.

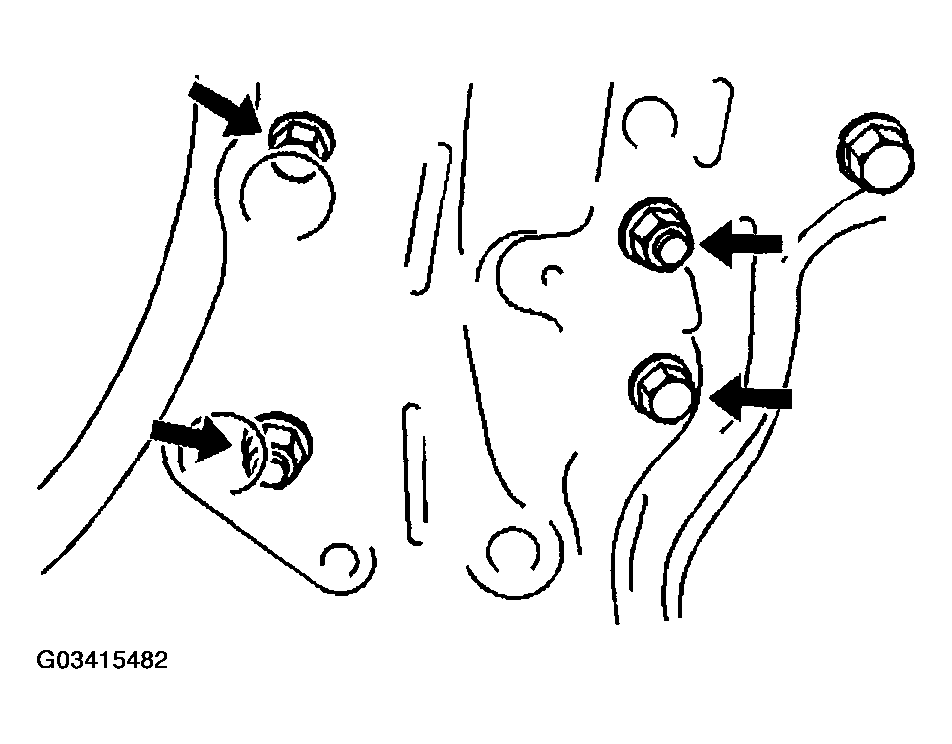

    Fig 2: Removing 3 Nuts And 1 Bolt Securing Rear Mount To Transmission Support
    G03415482Courtesy of GENERAL MOTORS CORP.
