Point to Point Measurements
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Point-to-point measurements are for reference only. Use these measurements for diagnosis for validating. Point-to-point measurements do not afford the accuracy that 3-Dimensional measuring systems have. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All holes, slots and fasteners are measured to the center.

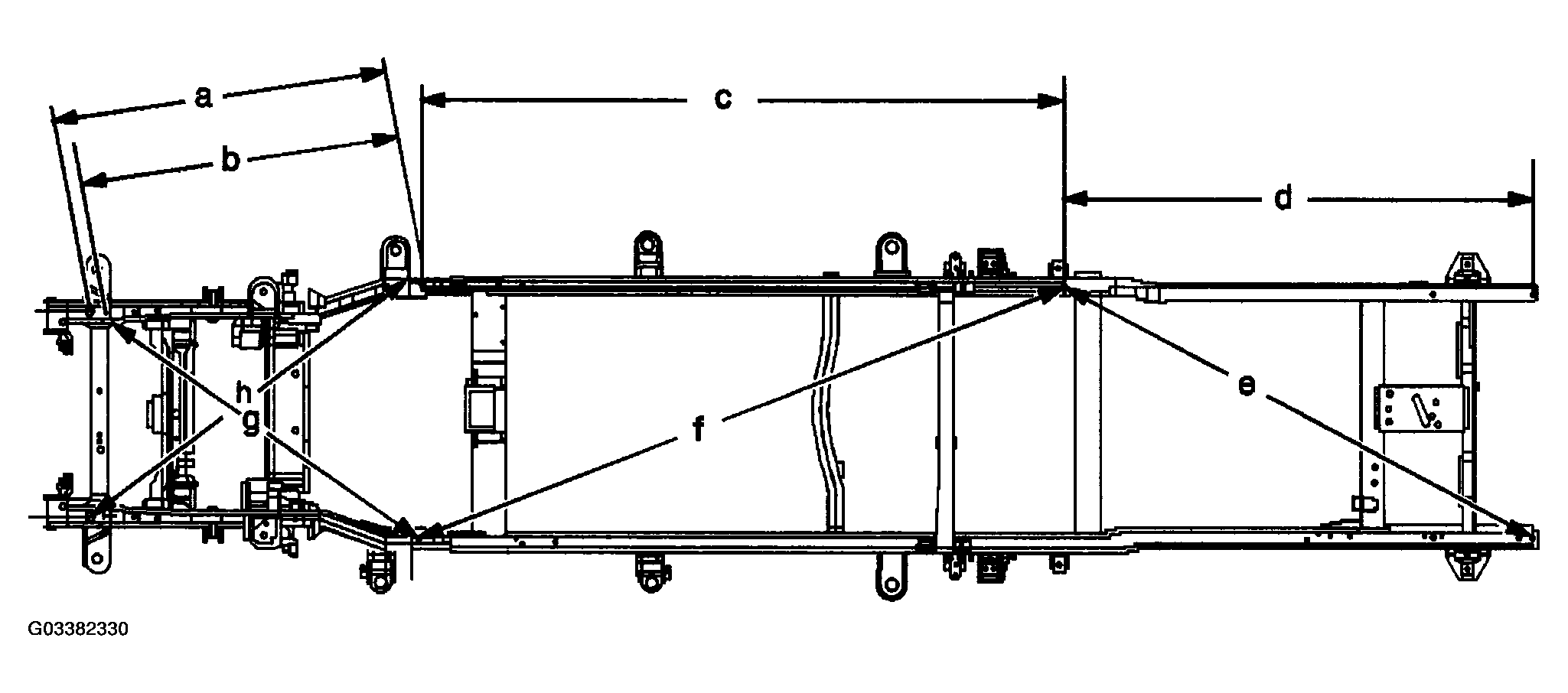

DIMENSIONS - FRAME (CREW CAB SHORT BOX 2WD/4WD)
| Location | Point to Point |
|---|---|
| a | 1337 mm |
| b | 1282 mm |
| c | 2707 mm |
| d | 1447 mm |
| e | 1789 mm |
| f | 2902 mm |
| g | 1583 mm |
| h | 1827 mm |
