Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the trailer wiring harness.

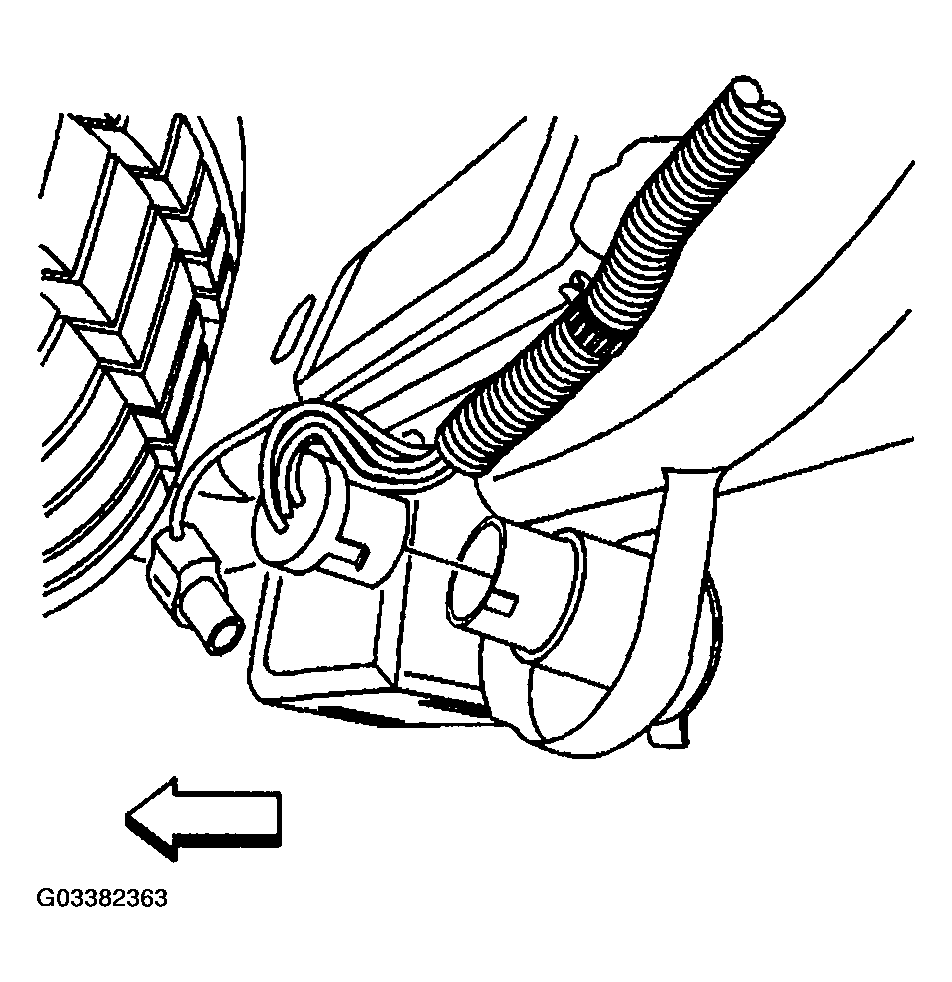

    Fig 1: Disconnecting Trailer Wiring Harness
    G03382363Courtesy of GENERAL MOTORS CORP.
  2. Remove the hitch platform bolts from the frame rails and the rear bumper.
  3. Remove the hitch platform from the vehicle.

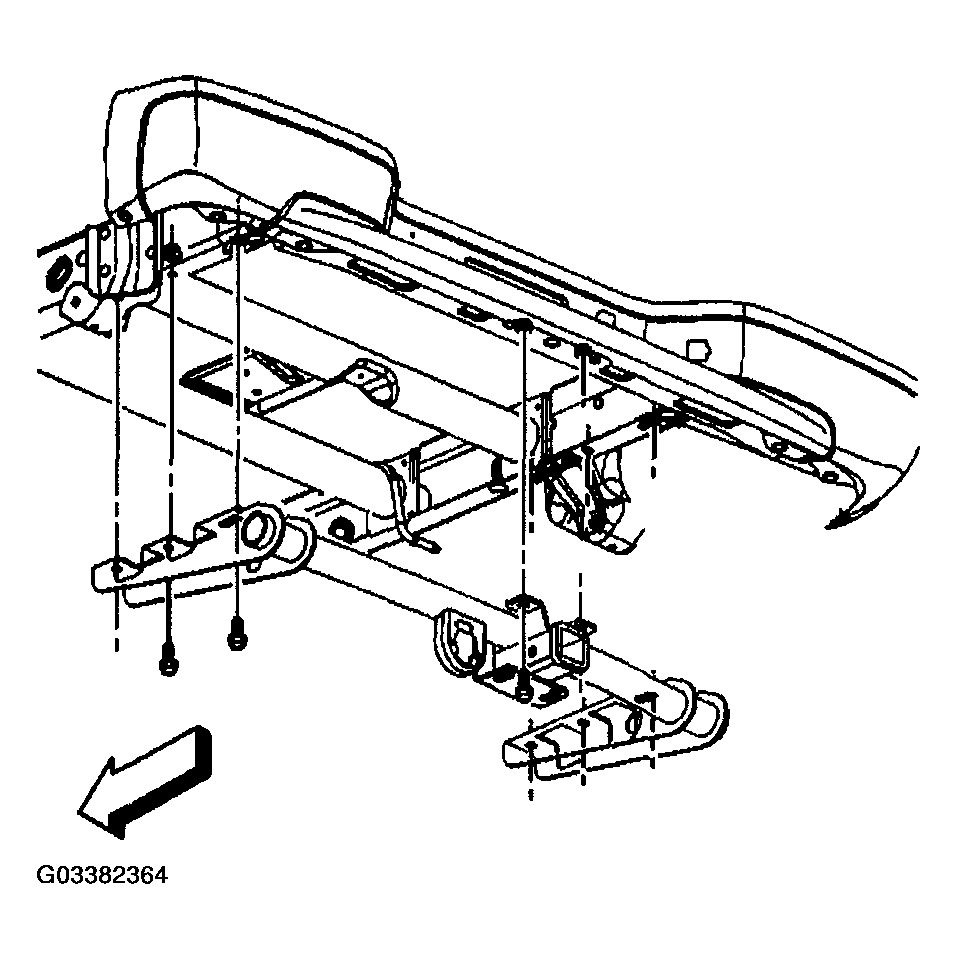

    Fig 2: Removing Hitch Platform Bolts From Frame Rails And Rear Bumper
    G03382364Courtesy of GENERAL MOTORS CORP.
