Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tow hook to the frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the tow hook through the frame rail.

    Tighten

    Tighten the bolts to 85 N.m (63 lb ft).

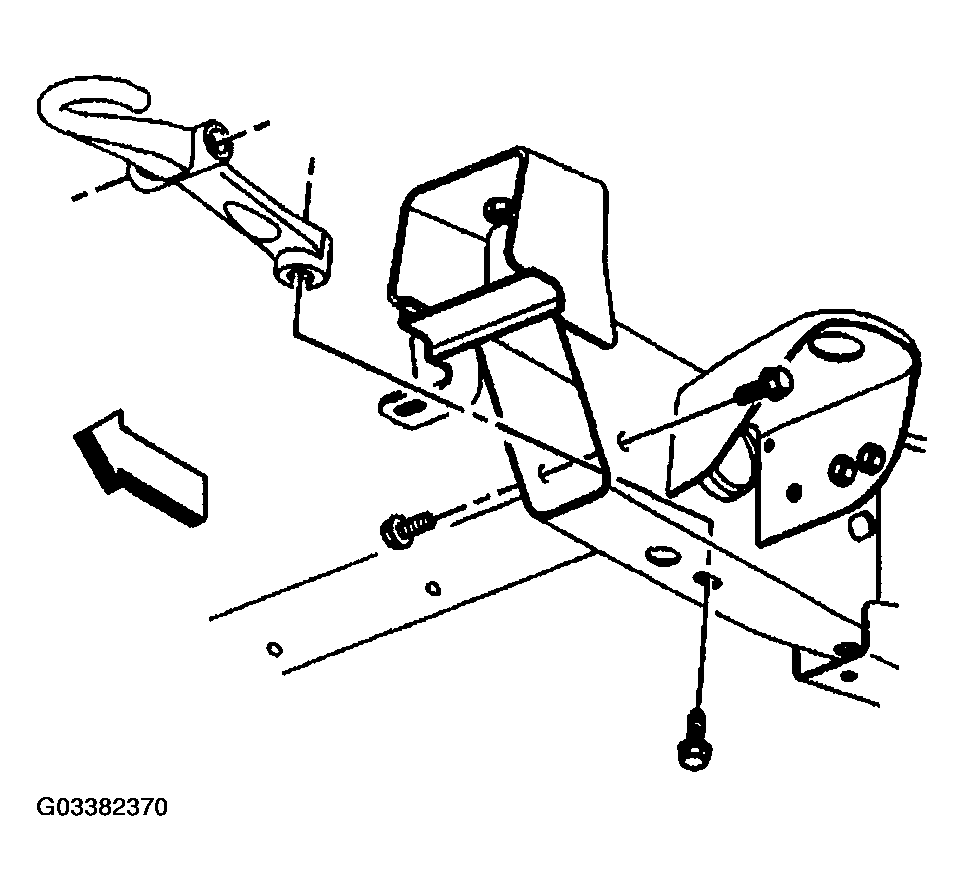

    Fig 1: Installing Bolts To Tow Hook Through Frame Rail
    G03382370Courtesy of GENERAL MOTORS CORP.
