Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

With the aid of an assistant remove the following components:
1. 1.1. The body mounts (1)
2. 1.2. The washers
With an assistant, remove the assist step assembly from the vehicle.
Remove the lower body-mount cushion assemblies (2) from the vehicle.

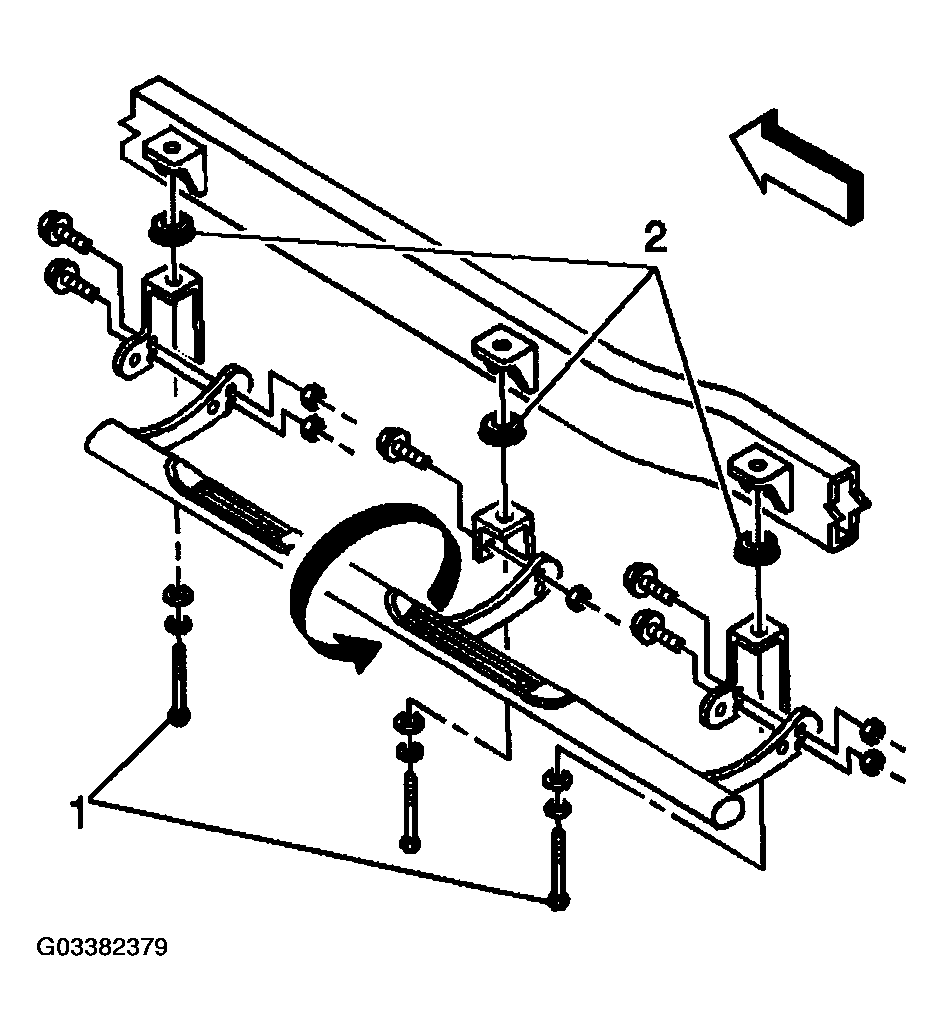

Fig 1: Removing Lower Body-Mount Cushion Assemblies
Courtesy of GENERAL MOTORS CORP.
Remove the assist step bracket bolts (1).
Remove the assist step brackets.

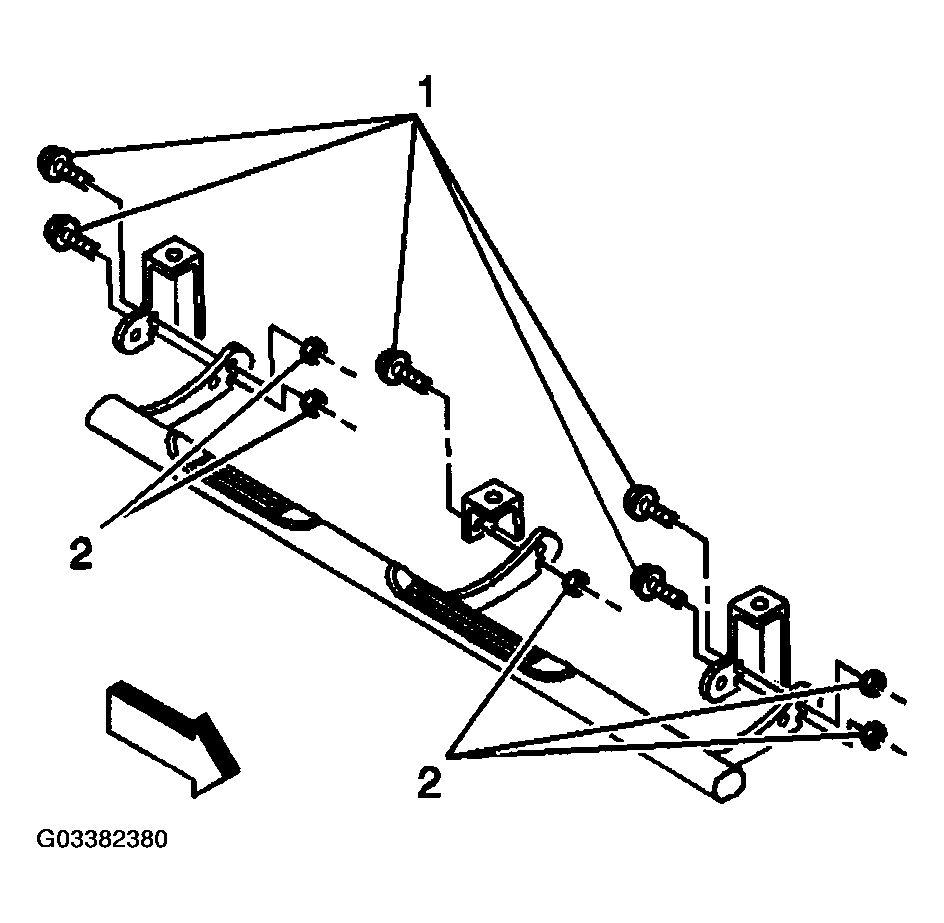

Fig 2: Removing Assist Step Brackets
Courtesy of GENERAL MOTORS CORP.
